Product Description
2" BORE WELDED DOUBLE ACTING CYLINDER WITH TUBE & EYE ENDS
Brand new, cylinder. Internal gland with wire-lock retaining ring. Pin-hole thru rod and cross-tube at base end. Made in USA.
| SPECIFICATIONS | |
|
|
| END MOUNTINGS | |
|
|
| California Residents |
|
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov |
Product Videos
Custom Field
Prop65 true
Legacy Part Number 9-7707-16
Dimensional Diagram dr9-7707-16.pdf
Badges made-in-usa,regular-stock

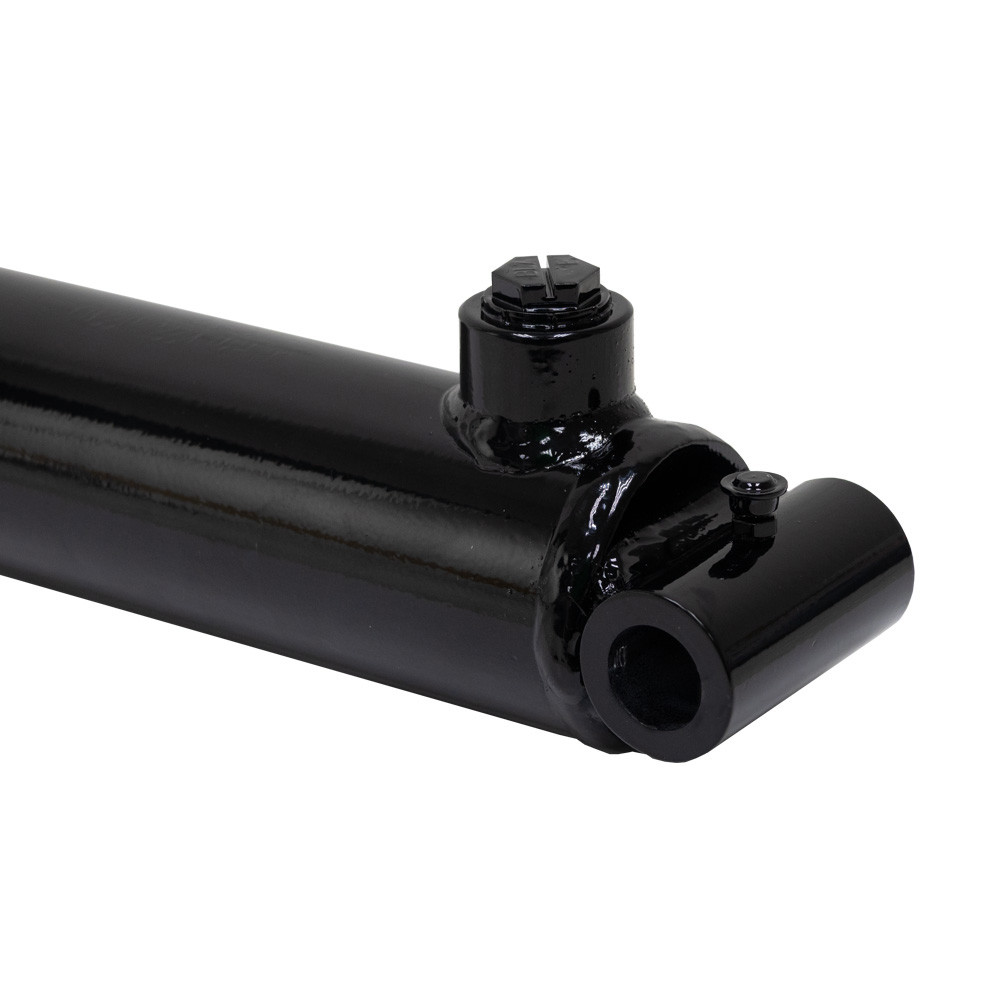

Base End Crosstube
Base End Pin Size 3/4"
Bore Range1 2" - 2.9"
Construction Type Welded
Max PSI Over 2500 PSI
Ports SAE
Retracted Length 24" - 29.9"
Rod Dia 1.25"
Rod End Cross-Hole
Rod End Pin Size 3/4"
Stroke 16
Stroke Range1 12" - 17.9"
PDF Page Catalog 299-56.pdf
