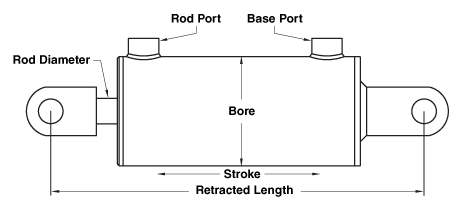

Cylinder Definitions
 |
|||
| Bore | Inside diameter of cylinder | Double Acting | Cylinder is powered both ways (two-way) |
| Stroke | How far a cylinder extends out | Crosstube End | Round tube welded perpendicular to cylinder |
| Retracted Length | Distance in inches between pin centers when cylinder is retracted | Single Eye End | For mounting between two mounting ears |
| Rod Diameter | Diameter of cylinder rod | Clevis End | Two mounting ears |
| Single Acting | Cylinder is powered one way | ||
