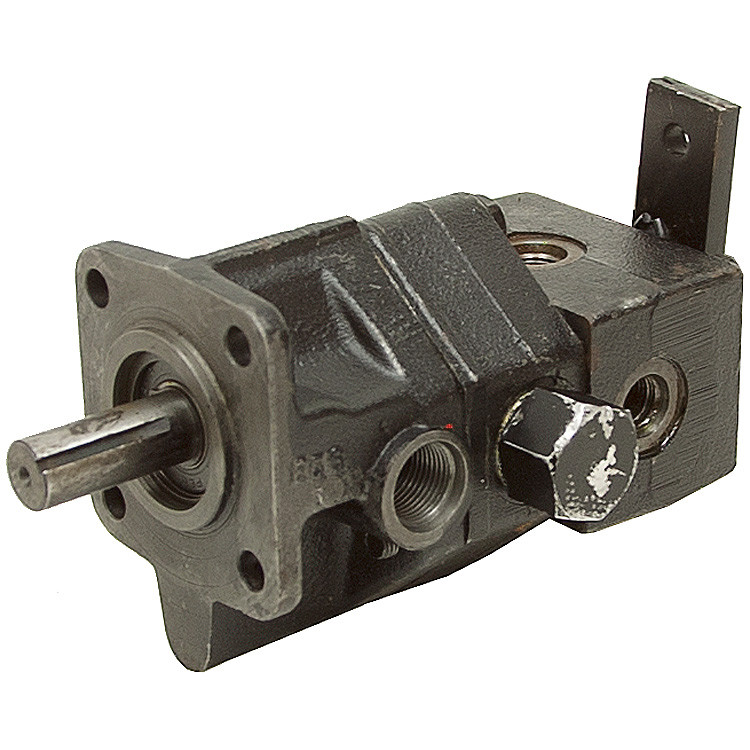

0.1 cu in Fenner Pump w/4 Way OC Control Valve [902611]

Product Description

HYDRAULIC GEAR PUMP W/ INTEGRAL VALVE
New FENNER. Hydraulic gear pump with built-in single spool, open center, spring centered, control valve ideal for operating double acting cylinders. Cast iron housing.

SPECIFICATIONS

• Displacement 0.1 cu. in. / rev.
• Rotation CCW
• Pressure 3500 PSI cont.
• Flow 1.6 GPM cont.
• Speed 3450 RPM cont.
• Relief Valve Setting 3200 PSI
• Mount 4 bolt USA 4F17
• Shaft 5/8" diam. x 1-1/2" keyed
• Inlet Port SAE 8
• Work Ports SAE 6
• Tank Port SAE 6
• Size 6-3/8" x 4" x 4"
• Shpg. 12 lbs.
