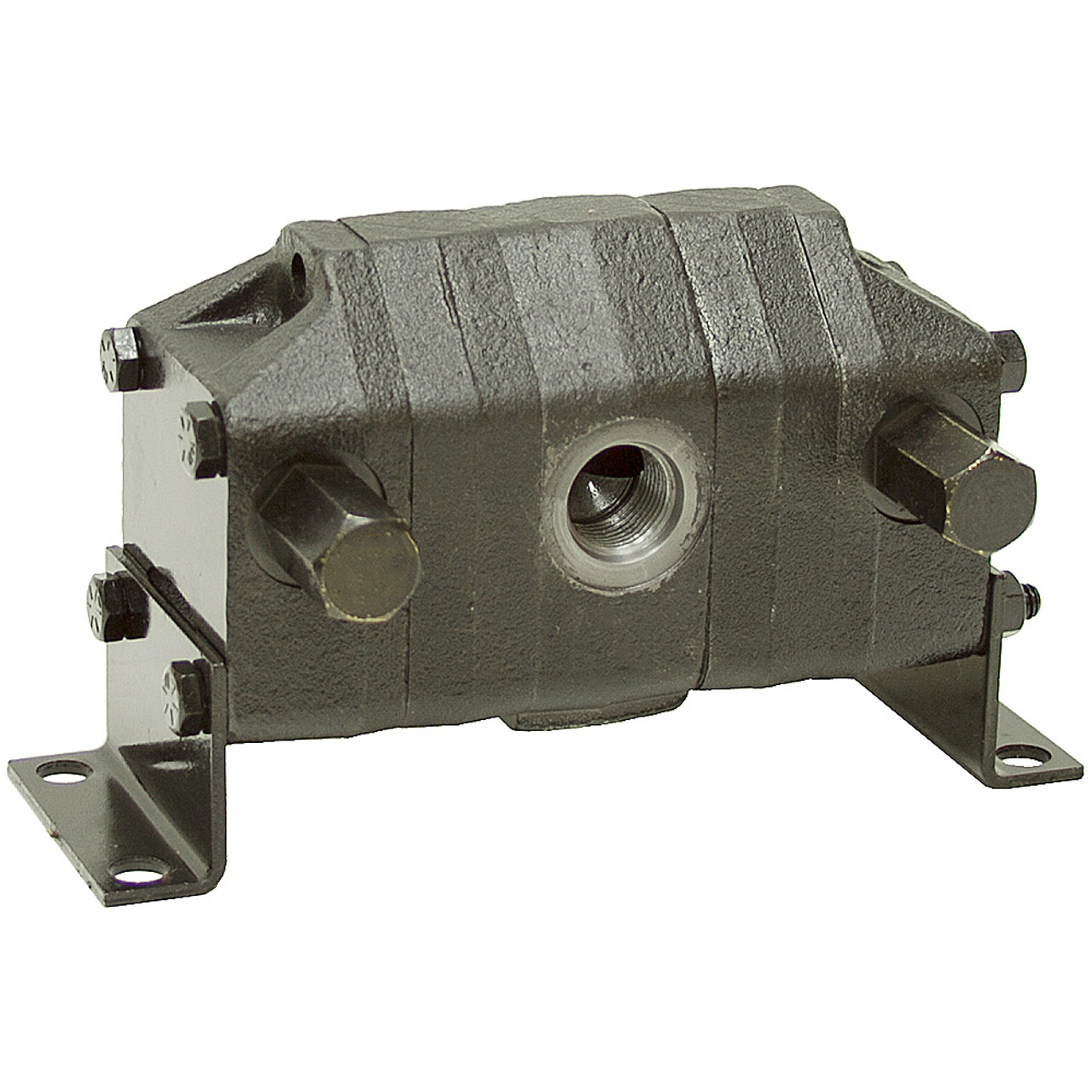

0.11 cu in 2 GPM 2 Section Rotary Flow Divider MTE P202R-5464 [903131]

Product Description

50:50 ROTARY FLOW DIVIDER
Brand new, MTE 200 series model P202R-5464. Hydraulic gear type rotary flow dividers. Accurately divide flow from one source into two or more equal proportionate flows. Relief valves do not limit system pressure, they only limit differential pressure from outlets to inlet.

SPECIFICATIONS

• Flow Division 50:50
• Displacement per Section 0.110 cu.   in. /rev.
• Input Flow
    Minimum Input 1.8 GPM
    Maximum Input 4.2 GPM
• Output Flow Per Section
    Minimum Output 0.9 GPM
    Maximum Output 2.1 GPM
• Pressure
    Maximum Input 3000 PSI
    Maximum Output 3500 PSI
• Factory Set Differential PSI Between Sections 750 PSI
• Relief Valves Adj. Range 500 - 1000   PSI
• Inlet Port SAE 8
• Outlet Port SAE 8
• Mount Base four bolt on 5.74" x 2"
• Size 6.49" x 3.94" x 4.66"
• Shpg. 11 lbs.
