Product Description

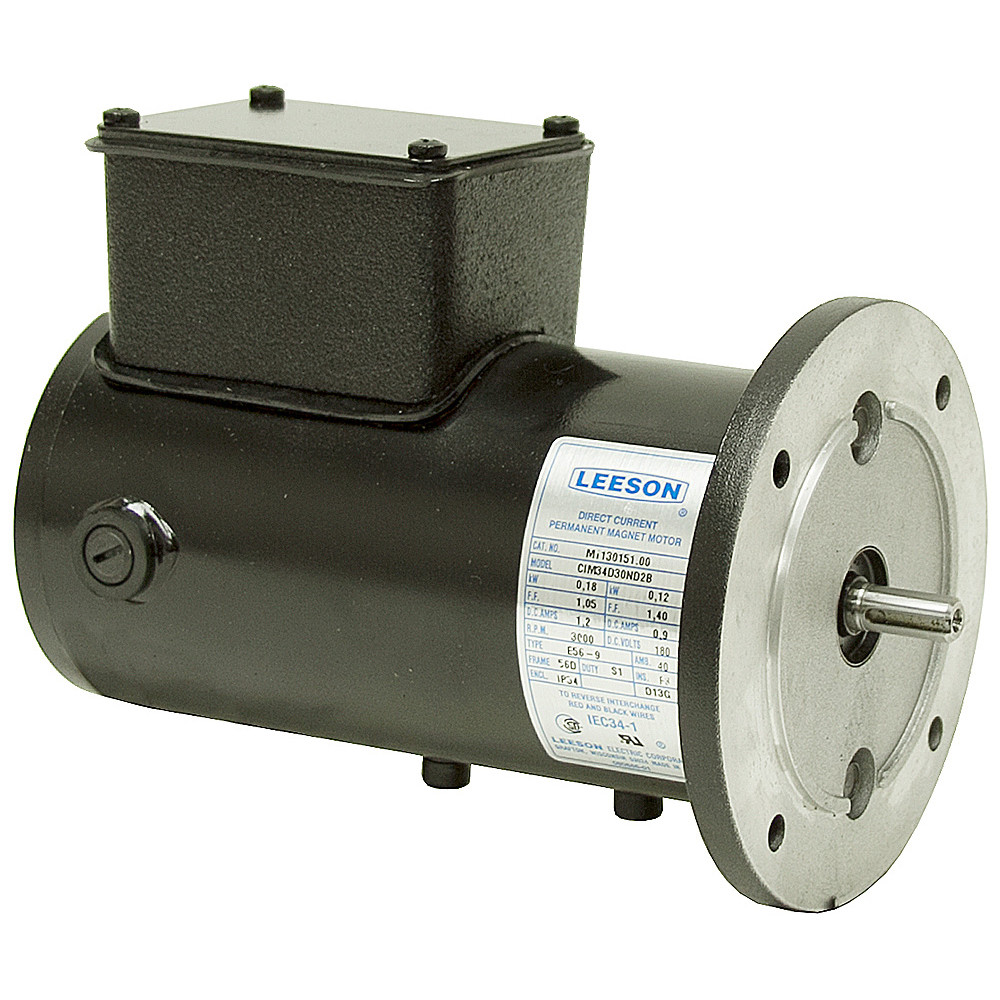

0.18/0.12 kW 3000 RPM MOTORNew. LEESON model# CIM34D30ND2B IEC 34-1 D.C. permanent magnet motor.
SPECIFICATIONS
- Power 0.24/0.16 HP (0.18/0.12 kW)
- Voltage 180 VDC
- Amperage 1.2/0.9 Amps
- Speed 3000 RPM
- Rotation Reversible
- Bearings Ball
- Enclosure TENV (IP54)
- Duty Continuous (S1)
- Frame 56D
- Face Mount Four 7mm holes on 100mm B.C., 80mm pilot
- Shaft 9mm dia. x 20mm long w/ 3mm wide x 15mm long keyway
- Size 175mm L x 120mm W x 140mm T
- Shpg. 11 lbs.
| California Residents |
|
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov |
Product Videos
Custom Field
Prop65 true
Legacy Part Number 10-2688
Badges surplus-item,last-one
Frame 56D
RPM 3000
Rotation Reversible
Voltage 180 Volt DC
