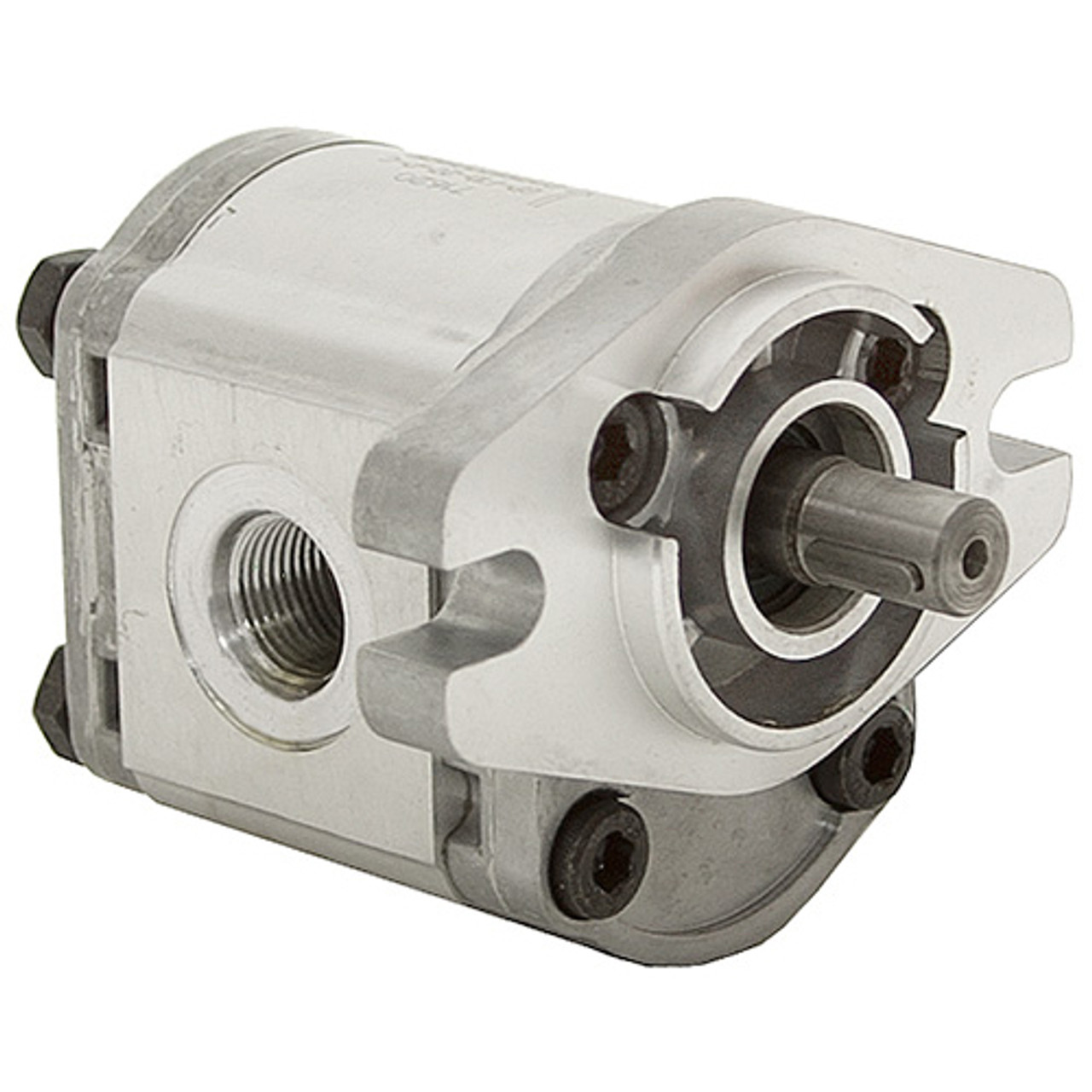

![0.31 cu in Dynamic GPF1051PA Hydraulic Pump [901571]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/1280x1280/products/3798/108294/9-7767-D__96876.1762808280.jpg?c=1 "0.31 cu in Dynamic GPF1051PA Hydraulic Pump [901571]")
![0.31 cu in Dynamic GPF1051PA Hydraulic Pump [901571]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/100x100/products/3798/108294/9-7767-D__96876.1762808280.jpg?c=1 "0.31 cu in Dynamic GPF1051PA Hydraulic Pump [901571]")
Product Description
0.31 cu in DYNAMIC GPF1051PA HYD PUMPBrand new, DYNAMIC GP-F10 series hydraulic gear pump. Aluminum center section with cast iron end covers.
SPECIFICATIONS
- Brand Dynamic
- Model Number 71550
- Build Number GP-F10-51-P-A
- Disp. 0.31 cu. in. / rev.
- Pump Type Gear
- Rotation CCW
- Pressure:
3045 PSI rated
3625 PSI peak - Speed:
2000 RPM rated
4000 RPM max. - Flow:
2.50 GPM rated
4.99 GPM max. - Mount 2 bolt SAE AA
- Shaft 1/2" dia. x 1-1/16" long with 1/8" wide keyway
- Rqd. Filtration 25 micron
- Inlet Port SAE 8
- Outlet Port SAE 6
- Size 3-11/16" x 4-1/32" x 3-5/16"
- Shpg. 6 lbs.
| California Residents |
|
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov |
Product Videos
Custom Field
Prop65 true
Legacy Part Number 9-7767-D
PDF Page Catalog298-42.pdf
Badges regular-stock
Displacement 0.31
Displacement Range2 0 - 0.5 cu in/rev
Mount1 2 bolt SAE AA
Port Location Side
Ports SAE
Rotation CCW
Shaft Keyed
