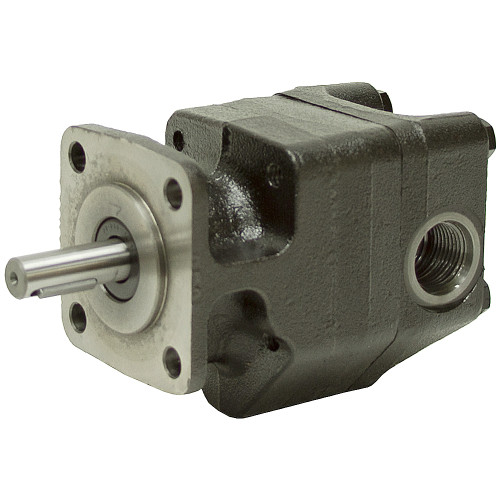

0.434 cu in MTE D209-5493 Hydraulic Pump [903126]

Product Description

HYDRAULIC GEAR PUMP
Brand new, MTE brand hydraulic pumps. Use it on mobile equipment, construction and agricultural equipment, machine tools, material handling and mining equipment, PTO pumps, refuse haulers, compaction and baling equipment. Cast iron body. Made for direct drive, no shaft side-loading. Similar to Parker D Series, Webster YB Series, Rexroth S12. Made in USA.

SPECIFICATIONS

• Disp. 0.434 cu. in. / rev.
• Pump Type Gear
• Rotation CW
• Pressure:
    1600 PSI cont.
    2500 PSI int.
• Speed:
    3600 RPM cont.

• Flow:
    6.76 GPM cont.

• Mount 4 bolt USA 4F17
• Shaft 1/2" diam. x 1-1/2" w/ 1/8" keyway
• Inlet Port SAE 10
• Outlet Port SAE 10
• Case Drain N/A
• Size 4.58" x 2.8" x 3.66"
• Shpg. 6 lbs.
