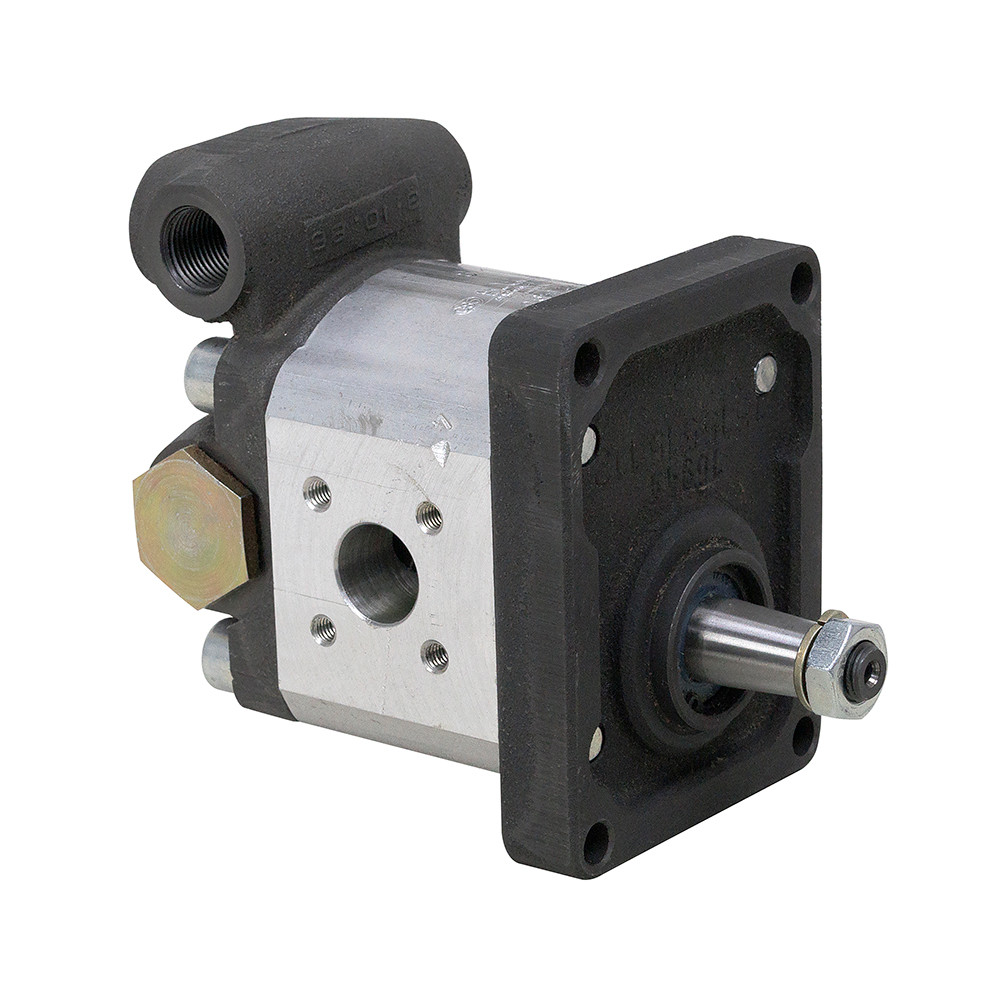

0.67 cu in BOSCH 0510525322 Hydraulic Gear Pump [900963]

Product Description

• Manufacturer Bosch
• Model 0510525322
• Part Number AZPF-10-011LHO20MSXXX25-S0002
• Disp. 0.67 cu. in. / rev.
• Pump Type Gear
• Rotation CCW
• Pressure:
     3625 PSI cont.
     4061 PSI int.
• Speed:
     600 RPM min.
     3500 RPM max.
• Flow:
     1.74 GPM @ 600 RPM
     10.15 GPM @ 3500 RPM
• Mount 4 bolt, 0.318"(8mm) holes on 2.79"(71mm) x 3.78"(96mm) centers
• Shaft 11/16" tapered x 1-3/8" long w/ woodruff key, threaded M12-1.5
• Inlet Port 20 mm 4 bolt flange
• Outlet Port M18-1.5 metric port
• Size 6" x 3-1/2' x 5-1/4"
• Shpg. 13 lbs.
