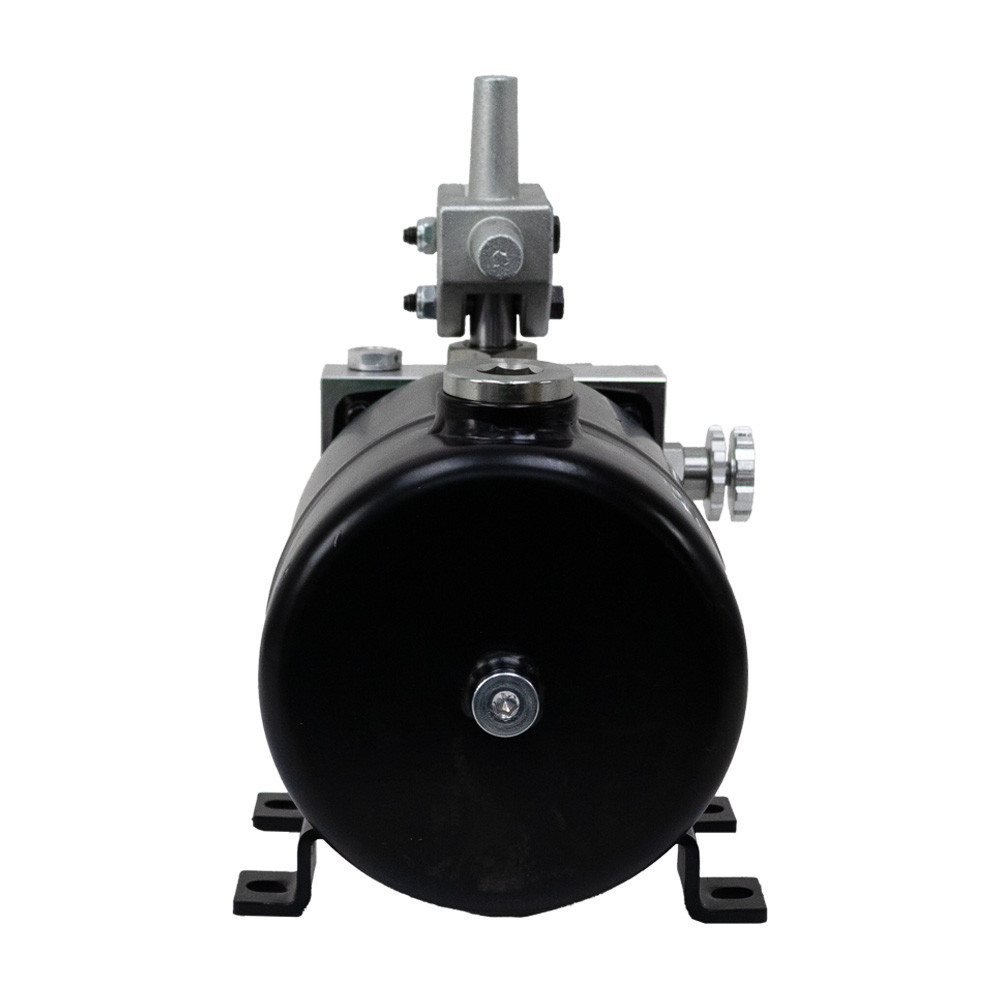

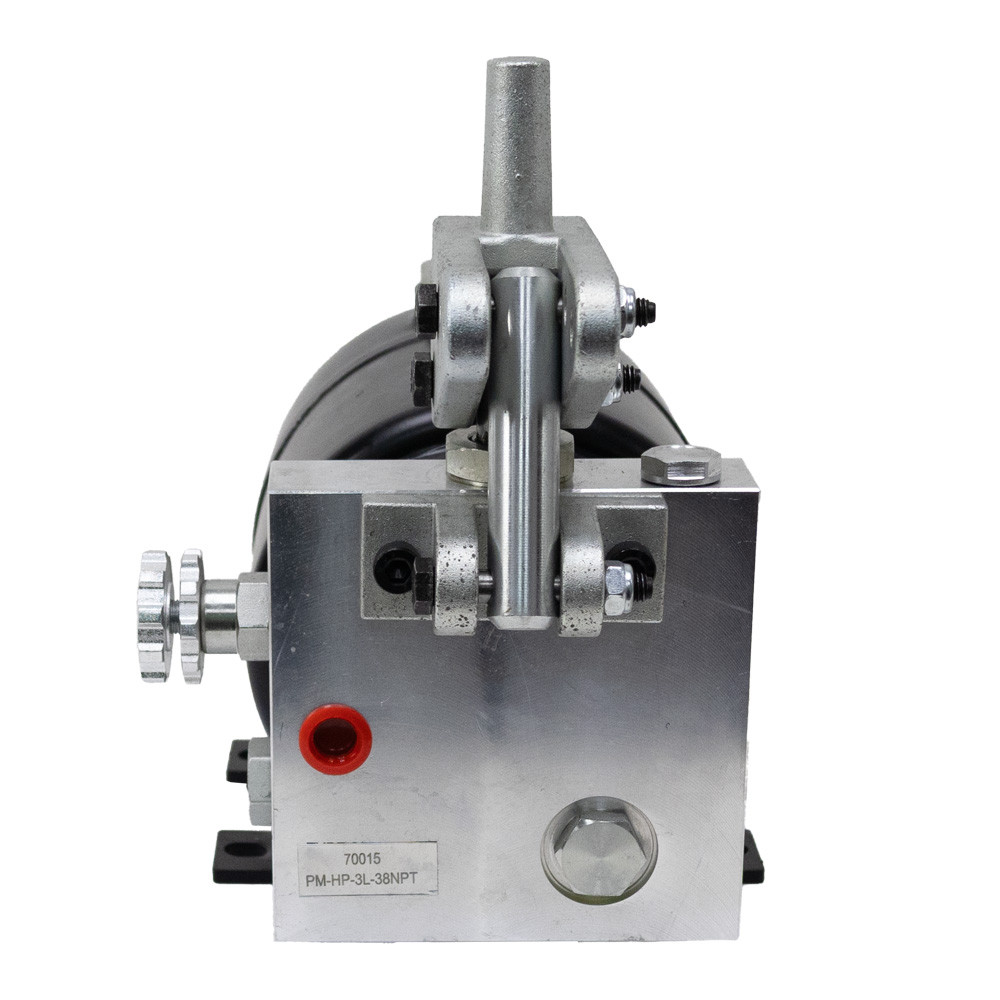

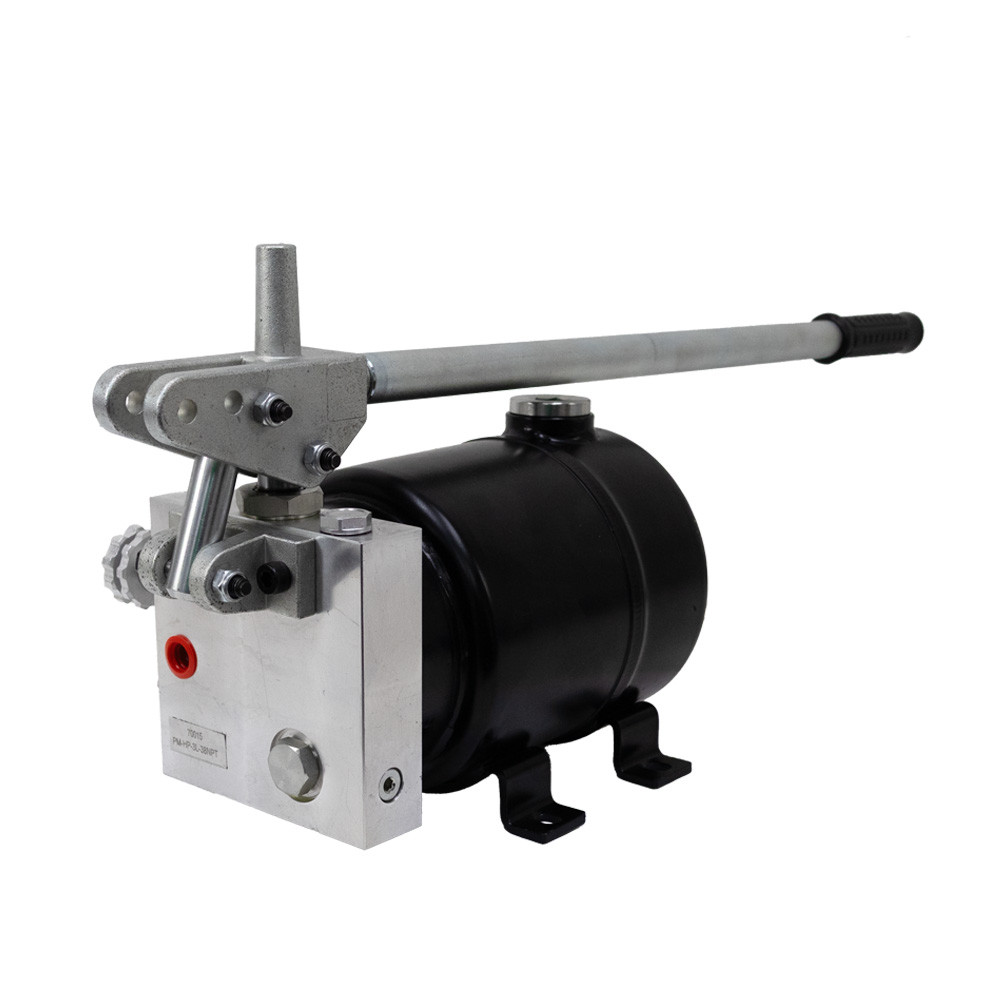

0.79 Gallon Hydraulic Hand Pump Dynamic PM-HP-3L-3/8NPT [906902]

Product Description

HYDRAULIC HAND PUMP
Brand new Dynamic PM-HP-3L-3/8NPT hydraulic hand pump with black painted steel reservoir, ground steel & chromed piston, heavy-duty pipe handle, and a built-in load check and release valve. For use with single acting cylinders. Ideal for applications which require hydraulic pressure with relatively small flow requirements. The durable construction makes them ideal for mobile equipment and the versatile design allows for mounting horizontally or vertically. Features two handle locations, three pin positions for lever allow for variable flow volume and pressure settings, dipstick to check oil level and a 4-bolt foot mount. Applications include hydraulic presses, dumps, hydraulic lift tables, frame straighteners, etc.

SPECIFICATIONS

• Brand Dynamic
• Model PM-HP-3L-3/8NPT
• Rated Flow
     Position 1: 1.25 in³/stroke
     Position 2: 0.95 in³/stroke
     Position 3: 0.60 in³/stroke
• Reservoir Size 0.79 gallon (3L)
• Port 3/8" NPT
• Max. Operating Pressure 3000 PSI
• Handle Length 19.69"
• Mounting Four 0.43" holes on 3.44" x 5.91" centers
• Size 12-1/2" x 6-3/4" x 8-1/2"
• Shpg.  18 lbs.
