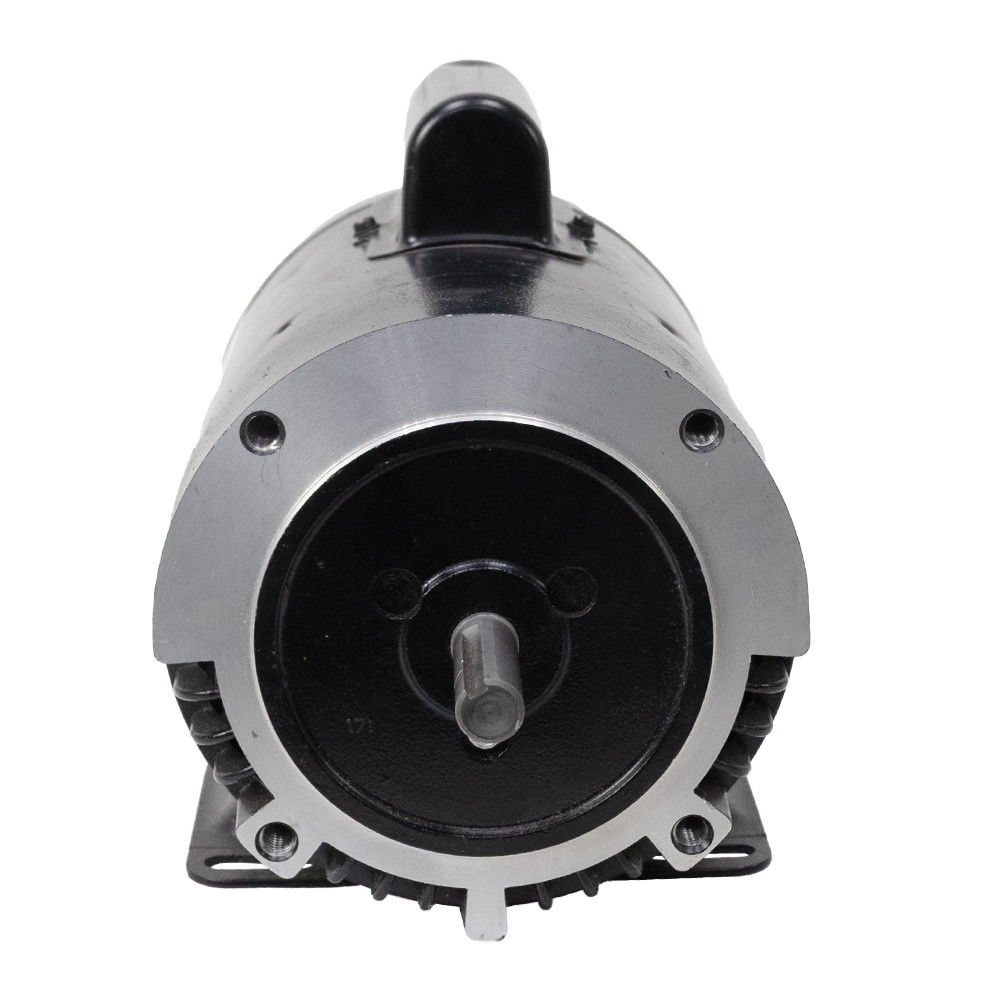

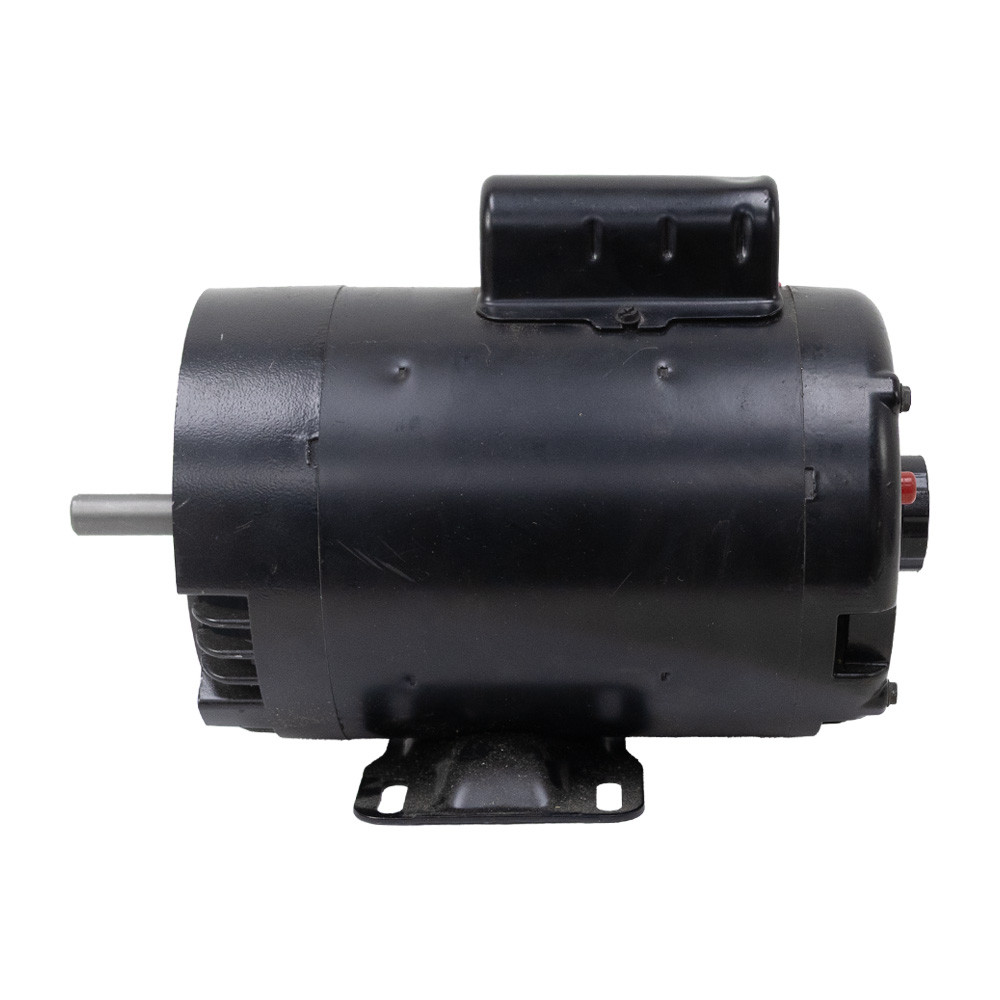

1.0 HP 1725/1425 RPM 115/208-230 Volt AC Motor Century 7-C56AA80C28-03 [BB10-3401]

Product Description

Item Missing Parts:  This motor is missing access covers. Sold as is.

1.0 HP 1725/1425 RPM 208-230/115 VOLT AC MOTOR
Century 7-C56AA80C28-03, 1.0 HP, 208-230/115 Volt AC motor.

SPECIFICATIONS

• Brand Century
• Model Number 7-C56AA80C28-03
• Power 1.0 HP
• Voltage 208-230/115 AC
• Phase 1
• Frequency 60/50 Hz
• Amperage 6.5-6.3/12.6 Amps
• Speed 1725/1425 RPM
• Rotation Reversible
• Service Factor 1.25
• Bearings Unknown
• Thermal Overload Protection Yes
• Enclosure ODP
• Duty Continuous
• Frame L56C
• Base Mount Four 1-3/16" x 5/16" elliptical slots on 3" x 3-7/8" to 5-3/4" centers
• Face Mount Four 3/8"-16 threaded holes in motor face on 5-7/8" B.C., 4-1/2" pilot
• Shaft 5/8" dia. x 1-7/8" overall length w/ 3/16" keyway
• Size 12-1/2" x 8-1/4" x 6-1/2"
• Shpg. 36 lbs.
