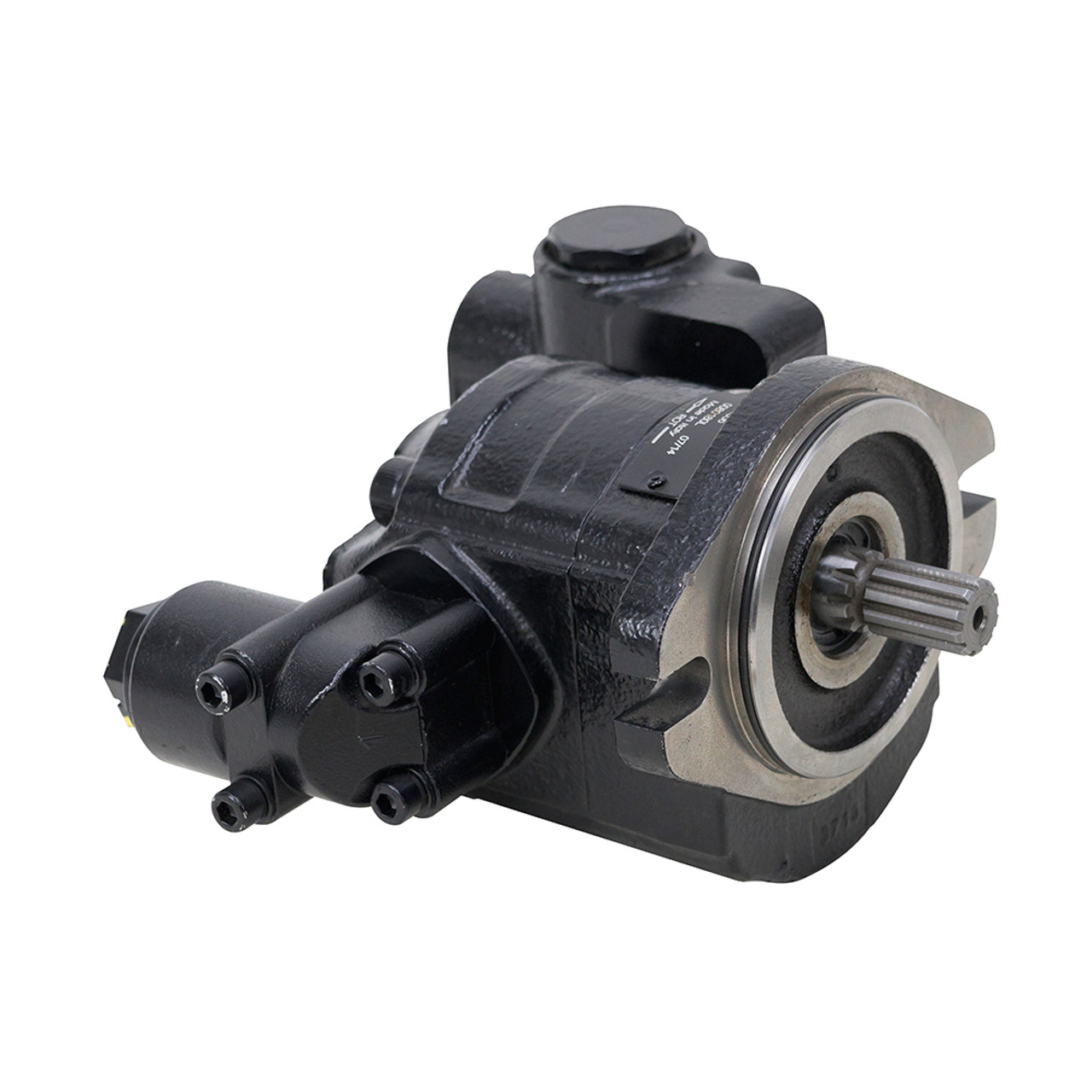

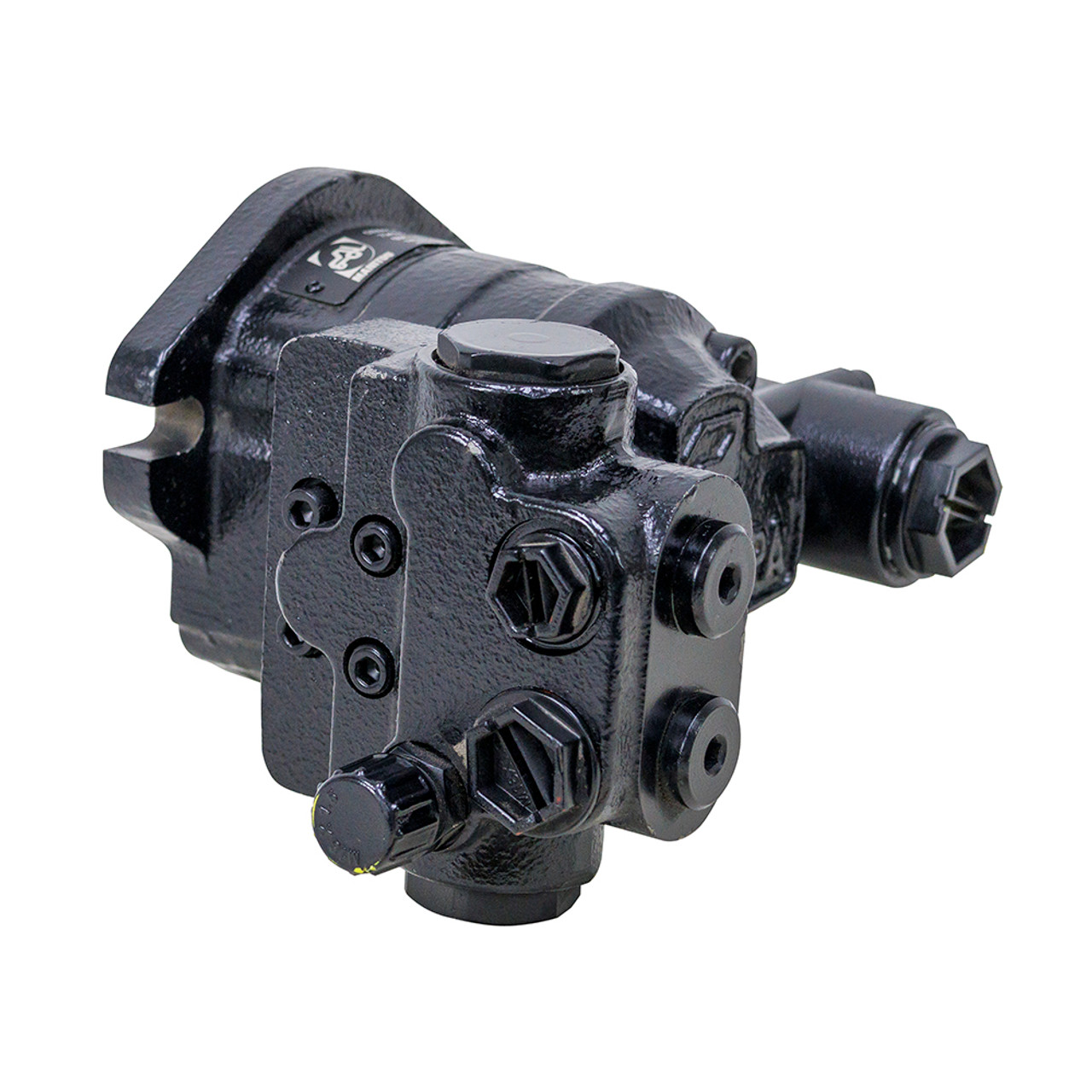

1.03 cu in Hydraulic Gear Pump Manitou by Casappa 03564KW0 734656 [904149]

Product Description

• Manufacturer Manitou Casappa
• Model 03564KW0 734656
• Disp. 1.03 cu. in. / rev.
• Pump Type Gear
• Rotation CW
• Pressure:
     3770 PSI Cont.
     4206 PSI Int.
• Speed:
     350 RPM min.
     3500 RPM max.
• Flow:
     1.56 GPM @ 350 RPM
     15.61 GPM @ 3500 RPM
• LS Valve Stand by Pressure 116 PSI
• Mount 2 Bolt SAE A
• Shaft 17mm dia. 10T spline
• Rqd. Filtration 10 micron
• Inlet Port 3/4" NPT
• CF Outlet Port M16 x 1.5 O-ring
• EF Outlet Port M18 x 1.5 O-ring
• LS Port M16 x 1.5 w/ male M16 x 1.5 adaptor
• Size 9" x 4-3/4" x 7-1/2"
• Shpg. 21 lbs.
