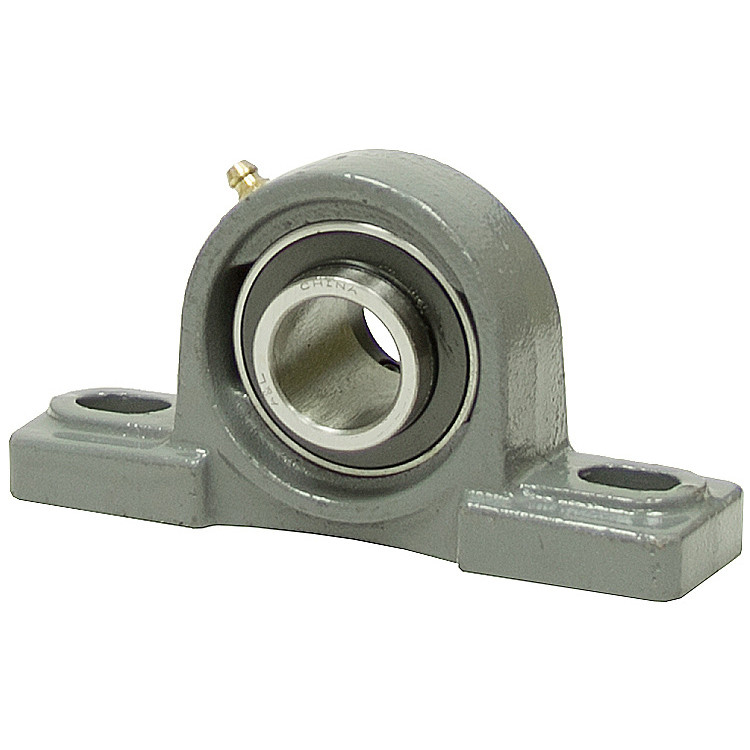

1-1/4" Pillow Block Bearing w/Lock Collar 206 Housing HCP206-20 [602256]

Product Description

PILLOW BLOCK BEARING
Brand new, DURA-ROLL 200 series pillow block bearings. Cast iron construction with self-aligning ball bearing insert and grease zerk. All bearings except eccentric lock collar types include set screw on the inner race to lock shaft. Items with eccentric locking collar have set screw in the collar.

SPECIFICATIONS

• Bore 1-1/4"
• Bore Thru-Length 1.902"
• Center-Line Height 1.689"
• Bearing # HC206-20
• Housing # P206
• Bolt Centers 4.7638"
• Hole Size 0.669"
• Bolt Size 1/2"
• Overall Height 3.228"
• Shpg. 4 lbs.
