Product Description

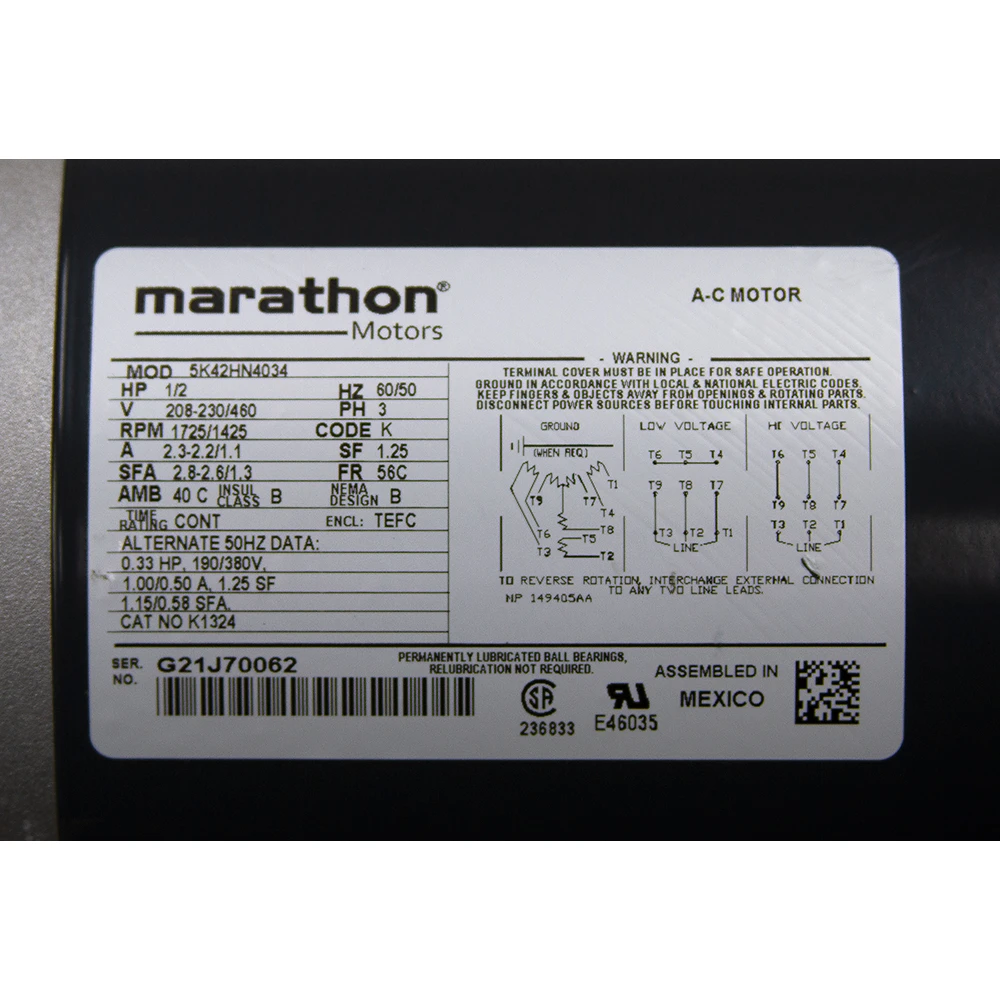

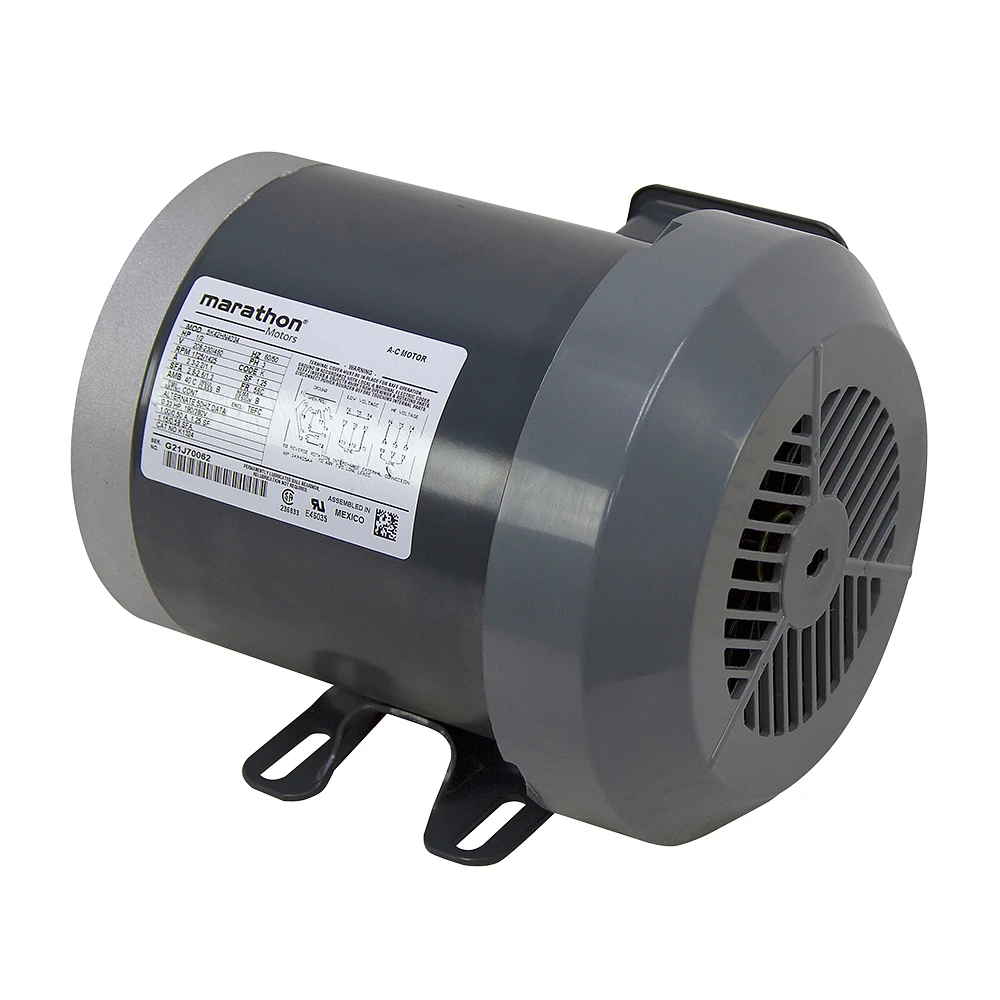

1/2 HP 1725 RPM 208-230/460 VOLT AC 3PH MARATHON MOTOR
Brand new, MARATHON model# 5K42HN4034 3-Phase general purpose motor. Rolled steel.
SPECIFICATIONS
- Manufacturer Marathon
- Model # 5K42HN4034
- Catalog # K1324
- Power 1/2 HP
- Voltage 208-230/460 Volt AC
- Phase 3
- Frequency 60 Hz
- Amperage 2.3-2.2/1.1 Amps
- Speed 1725 RPM
- Rotation Reversible
- Service Factor 1.25
- Bearings Ball
- Thermal Overload Protection None
- Enclosure TEFC
- Duty Continuous
- Frame 56C
- Base Mount Four 0.88" x 0.34" dia. elliptical slots on 4-7/8" x 3" centers
- Face Mount Four 3/8"-16 threaded holes in motor face on 5-7/8" B.C., 4-1/2" pilot
- Shaft 5/8" dia. x 2.12" overall length w/ 3/16" wide x 1-3/8" long keyway
- Size 8.89" x 9.07" x 7.30"
- Shpg. 22 lbs.
| California Residents |
|
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov |
Product Videos
Custom Field
Prop65 true
Badges surplus-item,last-one
Additional Information as10-3379.pdf
Frame 56C
HP 1/2
Rotation Reversible
RPM 1725
Voltage 208-230/460 Volt AC
