Product Description

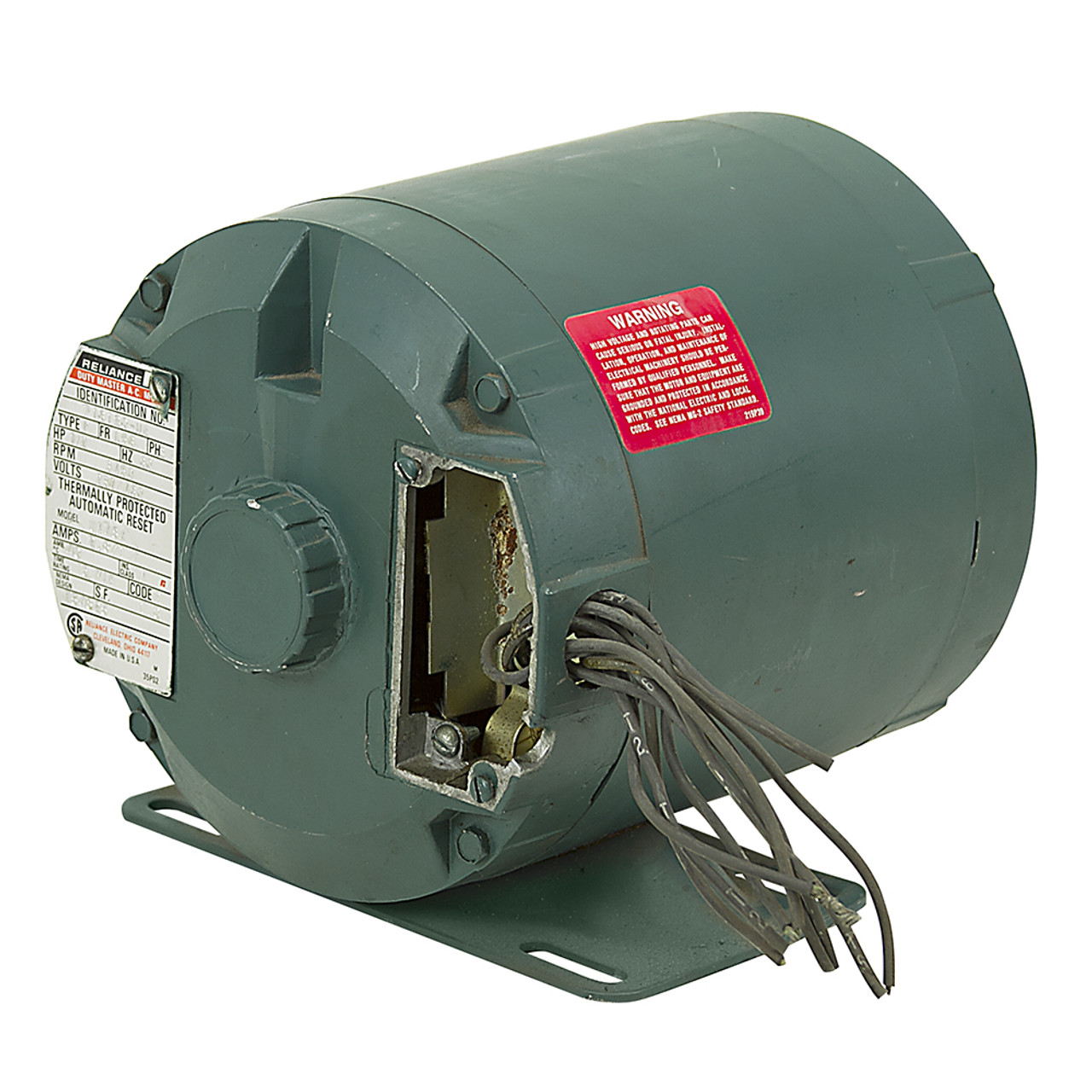

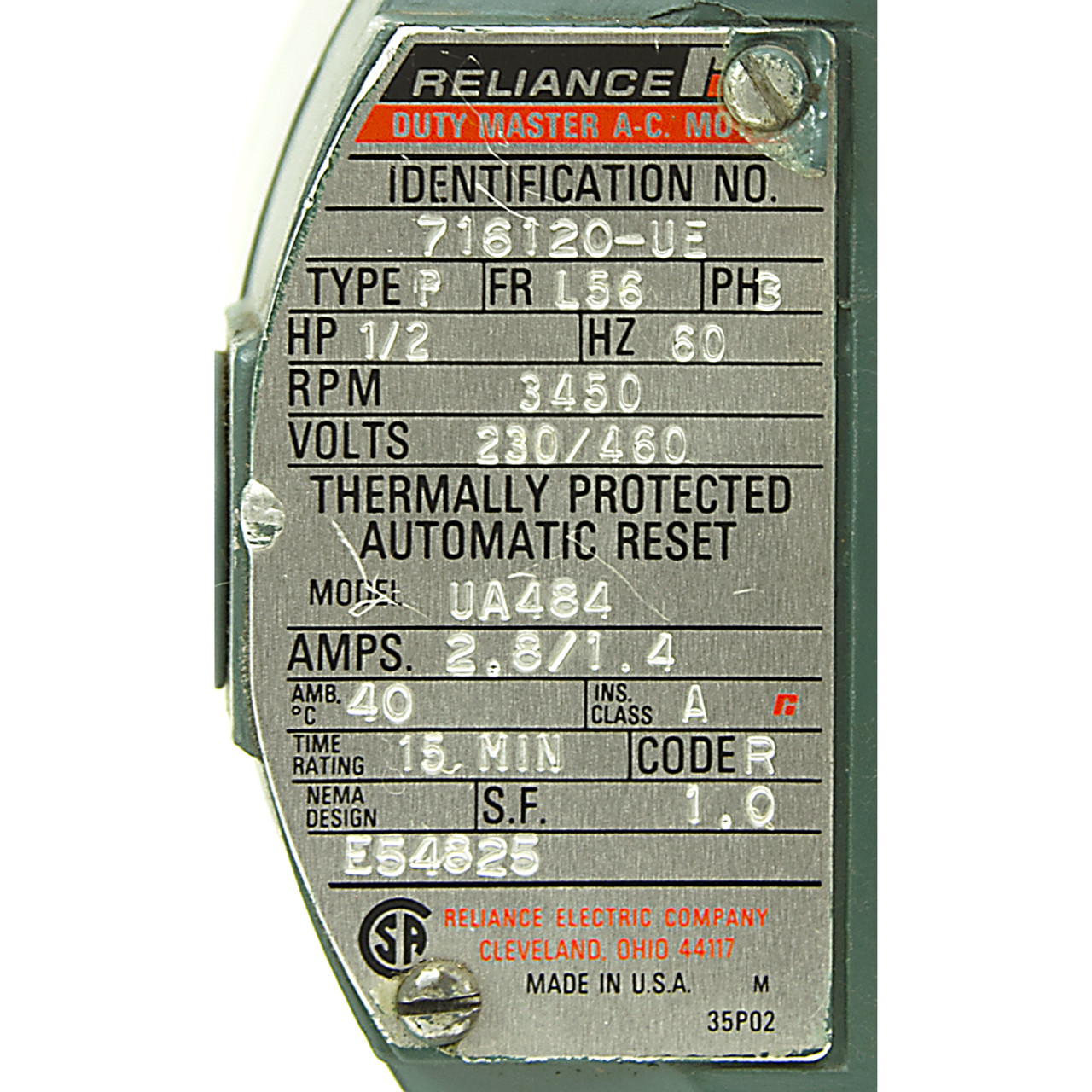

1/2 HP 3450 RPM MOTORUnused, old inventory. RELIANCE model# 716120-UE three-phase motor. Two 3/8" dia. stepped holes in pilot on 2-5/16" centers.
SPECIFICATIONS
- Power 1/2 HP
- Voltage 230/460 VAC, 60 Hz
- Amperage 2.8/1.4 Amps
- Speed 3450 RPM
- Rotation Reversible
- Phase 3
- Service Factor 1.0
- Enclosure TENV
- Duty 15 Minutes
- Frame L56
- Base Mount Four 1-1/4" x 5/16" slots on 4-7/8" x 3" centers
- Face Mount Four 3/8"-16 x 11/16" deep tapped holes on 5-7/8" B.C., 4-1/2" pilot
- Shaft 1/4" wide tang drive
- Size 7-7/8" x 6-3/8" x 6-3/4"
- Shpg. 21 lbs.
| California Residents |
|
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov |
Product Videos
Custom Field
Prop65 true
Legacy Part Number 10-2107-A
Badges surplus-item,last-one
Enclosure TENV
Frame L56
HP 1/2
RPM 3450
Voltage 230/460 Volt AC
