Product Description

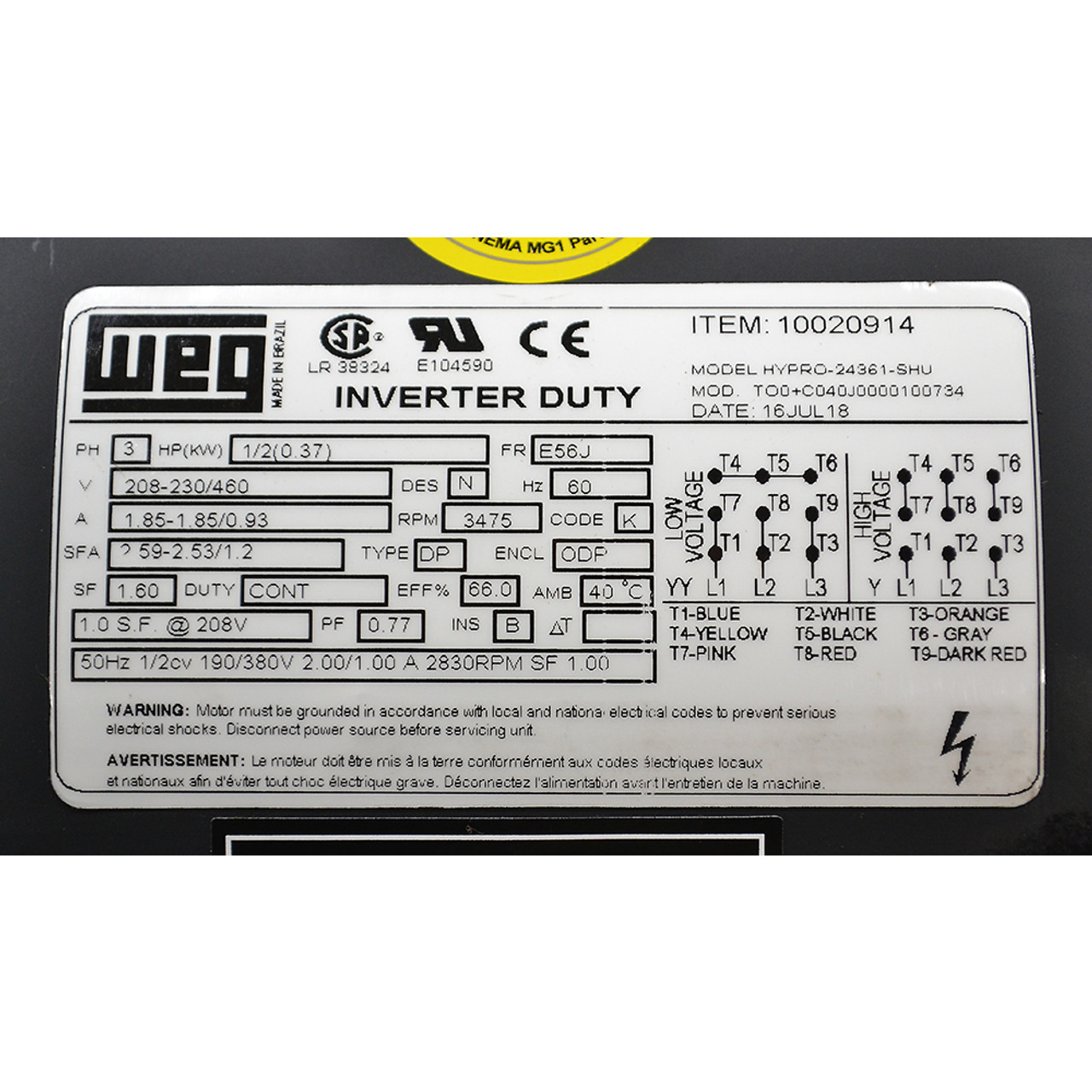

1/2 HP 3475 RPM THREE PHASE MOTORNew, WEG three phase electric motor model# TO0C040J0000100734.
SPECIFICATIONS
- Power 1/2 HP
- Voltage 208-230/460 AC
- Phase 3
- Frequency 60 Hz
- Amperage 1.85/0.93 Amps
- Speed 3475 RPM
- Rotation Reversible
- Service Factor 1.6
- Enclosure ODP
- Duty Continuous
- Frame E56J
- Face Mount
Four 3/8"-16 tapped holes on
5-7/8" diameter bolt circle - Rigid Base Mount
Four 0.34" diam. holes on 4-7/8" x 3" centers - Shaft 5/8" dia. x 1-3/4" 7/16-20 thread 11/16" long
- Size 11-3/8" x 6-1/2" x 6-3/4"
- Shpg. 23 lbs.
Product Videos
Custom Field
Legacy Part Number 10-3292
Badges surplus-item,last-one
Enclosure ODP
Frame E56J
HP 1/2
RPM 3450
Voltage 208-230/460 Volt AC
![1/2 HP 3475 RPM 208-230/460 Volt AC 3Ph WEG Motor TO0C040J0000100734 [501401]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/500x659/products/10738/98568/10-3292__72968.1762805958.jpg?c=1 "1/2 HP 3475 RPM 208-230/460 Volt AC 3Ph WEG Motor TO0C040J0000100734 [501401]")

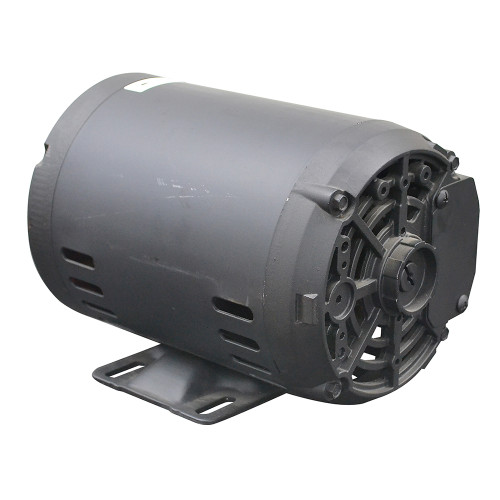

![1 HP 3465 RPM 208-230/460 Volt AC 3Ph WEG Motor TO0C040J0000101334 [501397]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/500x659/products/10649/98556/10-3274__60549.1762805956.jpg?c=1 "1 HP 3465 RPM 208-230/460 Volt AC 3Ph WEG Motor TO0C040J0000101334 [501397]")
