Product Description

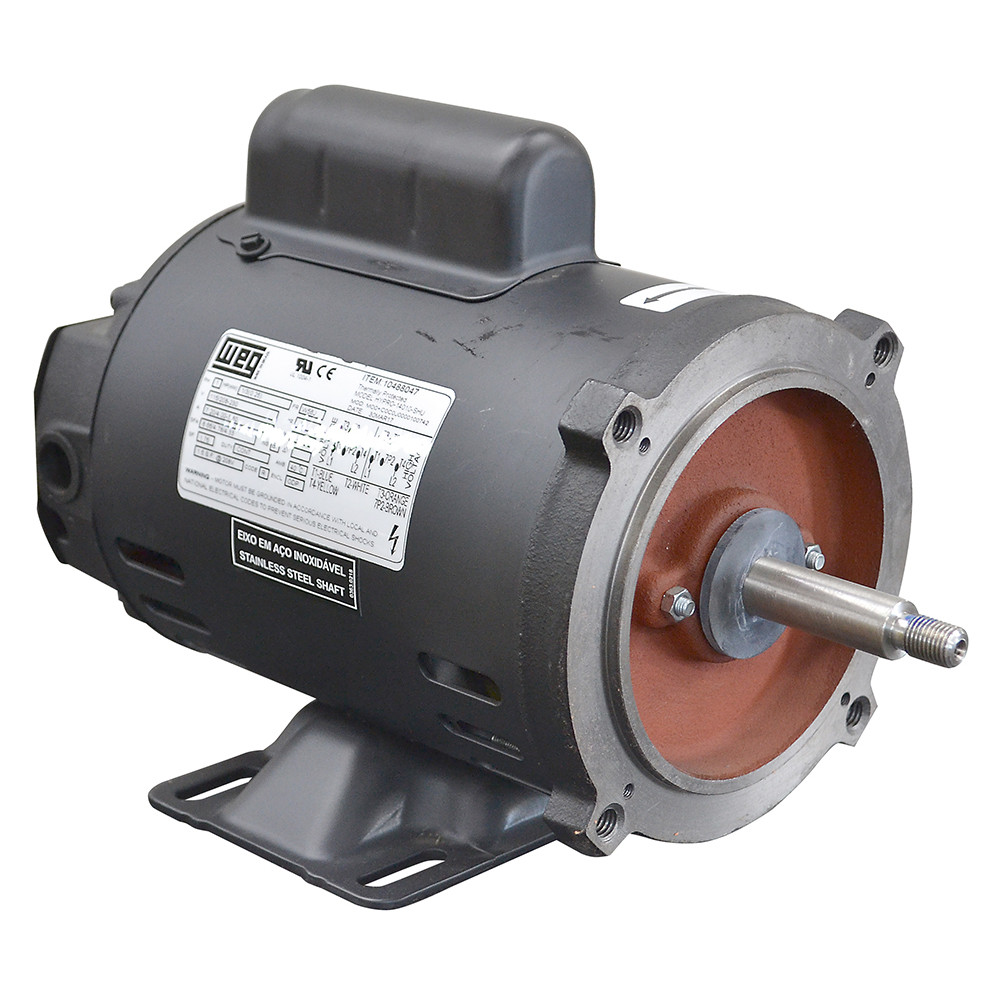

1/3 HP 3470 RPM MOTORNew, WEG electric motor model# MO0C0C0J0000100742 capacitor-start. Thermal overload protection with automatic reset.

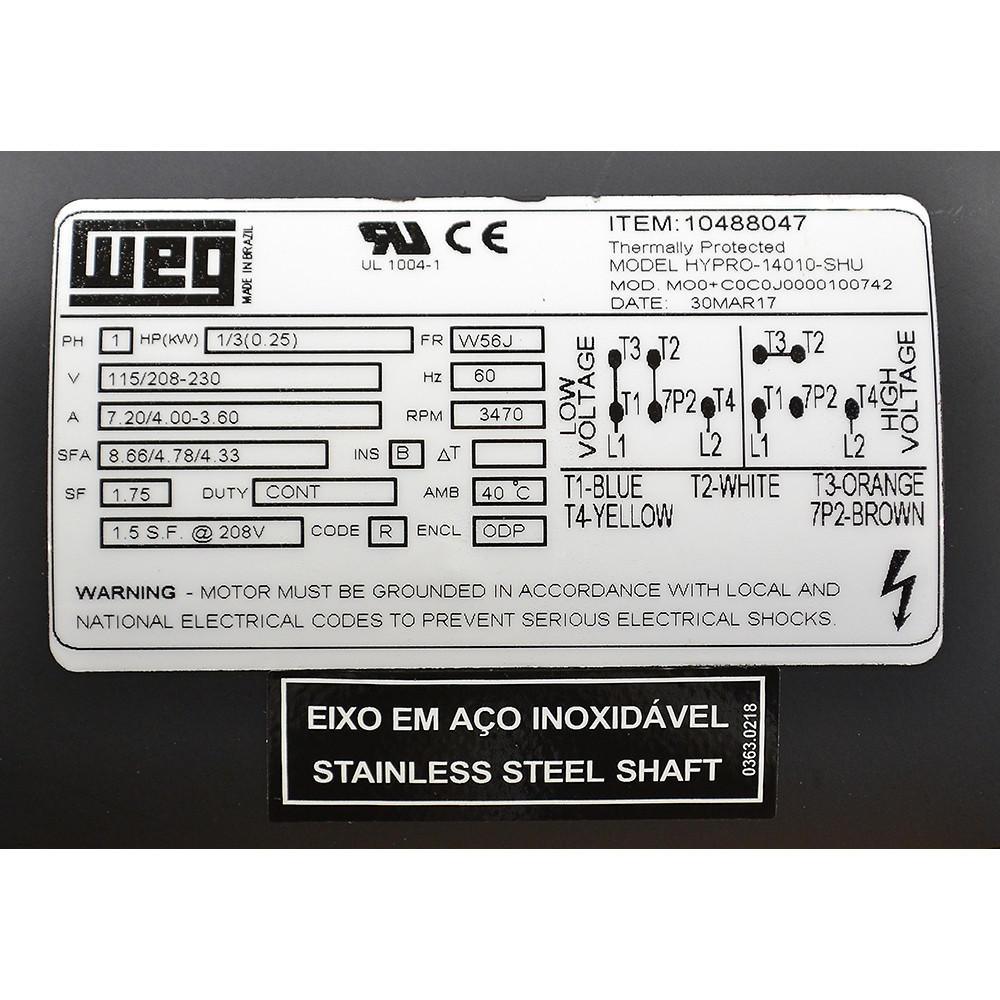

SPECIFICATIONS
- Power 1/3 HP
- Voltage 115/208-230 AC
- Phase 1
- Frequency 60 Hz
- Amperage 7.2/4-3.6 Amps
- Speed 3470 RPM
- Rotation CCW
- Service Factor 1.75
- Thermal Overload Protection Automatic
- Enclosure ODP
- Duty Continuous
- Frame W56J
- Face Mount
Four 3/8"-16 tapped holes on
5-7/8" diameter bolt circle - Rigid Base Mount
Four 0.34" diam. holes on 4-7/8" x 3" centers - Shaft 5/8" dia. x 1-3/4" w/ 7/16-20 thread 11/16" long
- Size 11" x 5-3/4" x 7-3/4"
- Shpg. 22 lbs.
Product Videos
Custom Field
Legacy Part Number 10-3279
PDF Page Catalog298-137.pdf
Badges surplus-item,last-one
Enclosure ODP
Frame W56J
HP 1/3
RPM 3450
Rotation CCW
Voltage 115/208-230 Volt AC
