Product Description

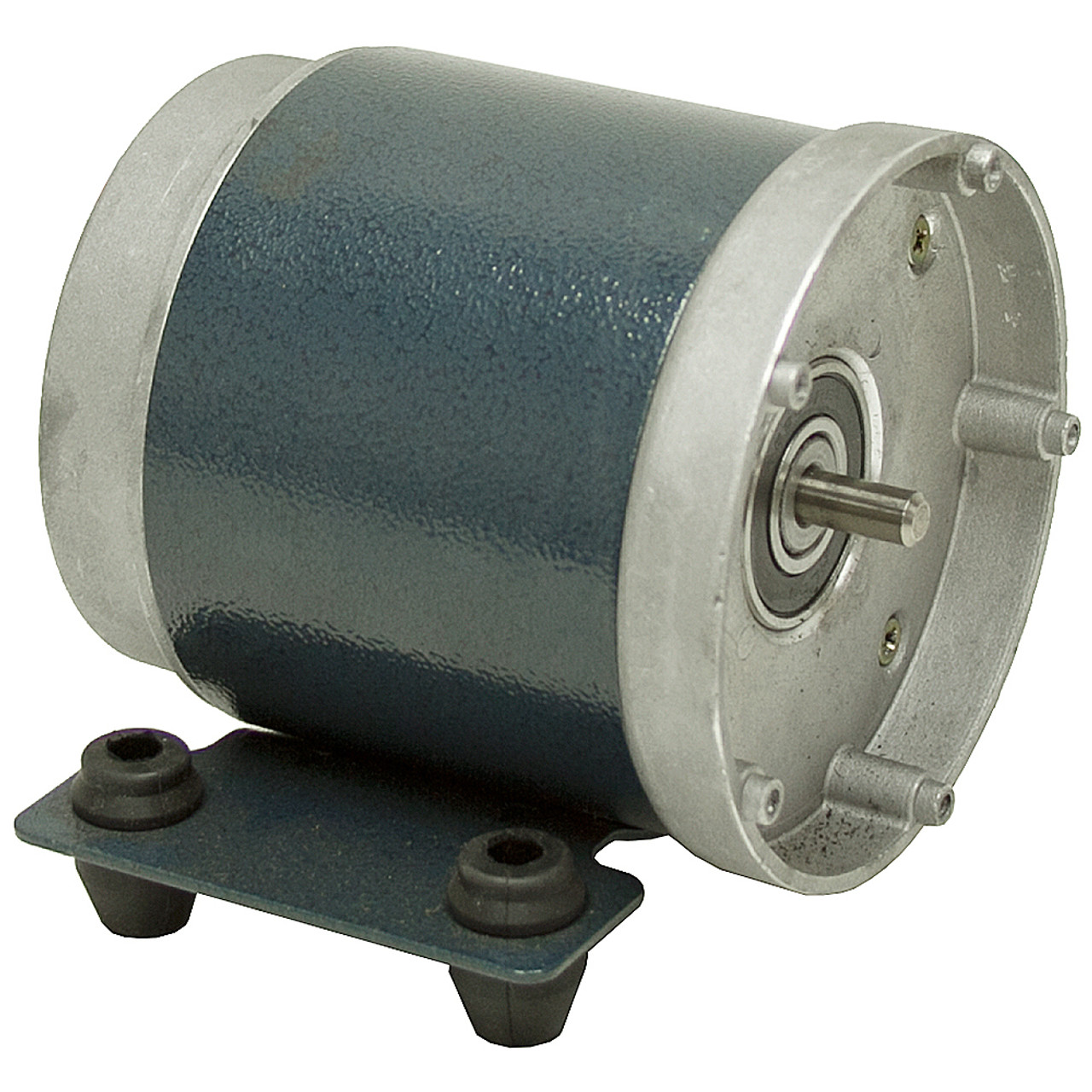

12 VDC MOTORNew, permanent magnet motor. Built to drive agricultural spray pumps. 5 mounting bosses on front cover for attaching pump. Could also be used as DC generator. Rubber isolators for holes in mounting base.
SPECIFICATIONS
- Power 1/4 HP
- Voltage 12 DC
- Speed/Amps
2600 RPM, 2.2 amps no load
2300 RPM, 25 amps, 7 in.lbs. torque - Rotation Reversible
- Bearings Ball
- Enclosure TENV
- Duty Continuous
- Frame Rigid welded base
- Mount 4-1/8" x 2-1/2"
- Shaft 5/16" dia. x 11/16" w/flat
- Size 4-1/4" dia. x 4-1/2"
- Shpg. 8 lbs.
| California Residents |
|
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov |
Product Videos
Custom Field
Prop65 true
Legacy Part Number 10-2893
PDF Page Catalog298-140.pdf
Badges surplus-item,last-one
Frame Other
RPM 2600
Rotation Reversible
Voltage 12 Volt DC
