Product Description
REVERSING DRUM SWITCH SINGLE OR 3 PHASEBrand new, drum type reversing switch. Double-pole, double-throw, spring returned to center off position. Heavy duty copper contacts, painted metal housing. Use with single or 3 phase circuits. UL and CSA listed.
SPECIFICATIONS
- Brand Relay & Control Corp.
- Model RS-1M
- Contact style DPDT-CO
- Contact Ratings
- Single Phase
1.5 HP @ 115 VAC
2 HP @ 230 VAC - 3 Phase
2 HP @ 230 VAC
1 HP @ 460 VAC - Lever motion 3 position,momentary
- Mount 2 bolts on base,1-5/8" c/c
- Size 2-1/4" x 4" x 4-1/2"
- Shpg. 2 lbs.
| California Residents |
|
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov |
Product Videos
Custom Field
Prop65 true
Legacy Part Number 11-3391-M
PDF Page Catalog298-153.pdf
Wiring Diagram w11-3391-M.pdf
Badges made-in-usa,regular-stock
Action Momentary
![1.5 / 2 HP 115/230/460 Volt AC Maintained Drum Switch - Relay & Control Corp RS-1 [500802]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/500x659/products/6962/97540/11-3391__54715.1762805699.jpg?c=1 "1.5 / 2 HP 115/230/460 Volt AC Maintained Drum Switch - Relay & Control Corp RS-1 [500802]")
![2/3/5/7.5 HP 115/230/460 Volt AC Lever Drum Switch - Relay & Control Corp RS-5 [500804]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/500x659/products/7007/97541/11-3392__03192.1762805699.jpg?c=1 "2/3/5/7.5 HP 115/230/460 Volt AC Lever Drum Switch - Relay & Control Corp RS-5 [500804]")
![1.5/2 HP 115/230 Volt AC Maintained Rev Drum Switch RS-1A [500789]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/500x659/products/7045/97524/11-3390__91318.1762805695.jpg?c=1 "1.5/2 HP 115/230 Volt AC Maintained Rev Drum Switch RS-1A [500789]")
![1.5 HP 3520 RPM 230/460 Volt AC 3Ph WEG Motor [501405]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/500x659/products/10871/98580/10-3306__77981.1762805961.jpg?c=1 "1.5 HP 3520 RPM 230/460 Volt AC 3Ph WEG Motor [501405]")

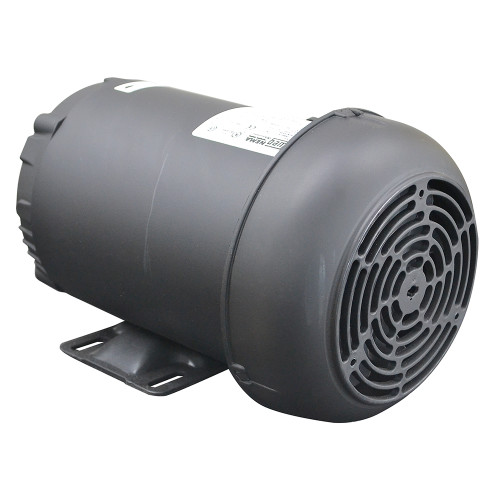

![1.5 HP 3520 RPM 230/460 Volt AC 3Ph WEG Motor [501405]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/500x659/products/10871/98581/10-3306_1__88023.1762805961.jpg?c=1 "1.5 HP 3520 RPM 230/460 Volt AC 3Ph WEG Motor [501405]")
