1.5 cu in DA Hand Pump Head Wolverine by Prince Mfg WHP-15-DA [903244]

Product Description

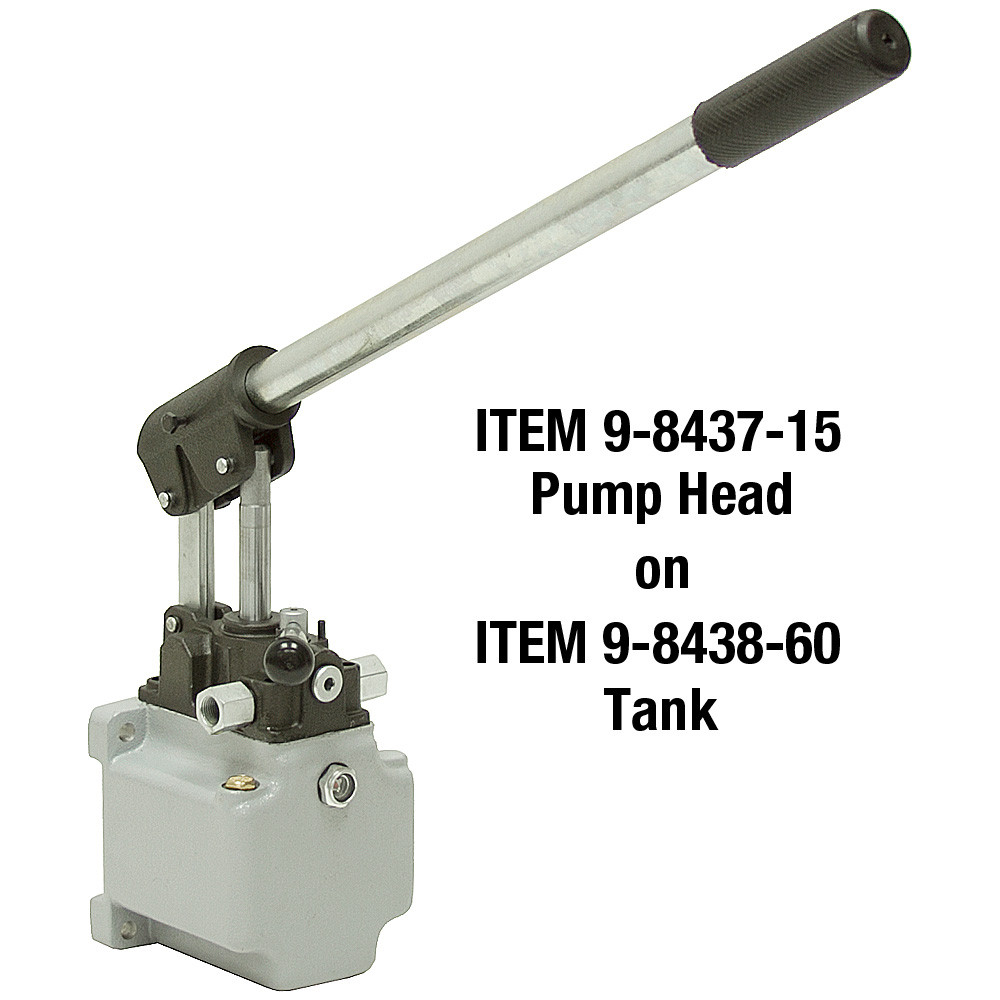

HYDRAULIC HAND PUMP HEAD
Brand new, WOLVERINE by PRINCE model WHP-15-DA hydraulic hand pump. Pumps on both the UP and DOWN stroke of the handle.  Integral 4 way 3 position directional control valve ideal for operating a double-acting hydraulic cylinder.  Pump head only.  Ships with handle and gasket, mounting hardware and pickup tube with strainer to connect pump to reservoir (reservoir sold separately).

SPECIFICATIONS

• Pressure 3500 PSI
• Flow 1.5 cu.-in./cycle(up and down)
• Outlet Port 3/8" NPT adapter installed in #4 BSPP port
• Actuation Force 130-140 lbs. to generate 3500 PSI using a 21" bar
• Size 27-9/16" x 2-1/2" x 9-1/4
• Shpg. 10 lbs.
