Product Description

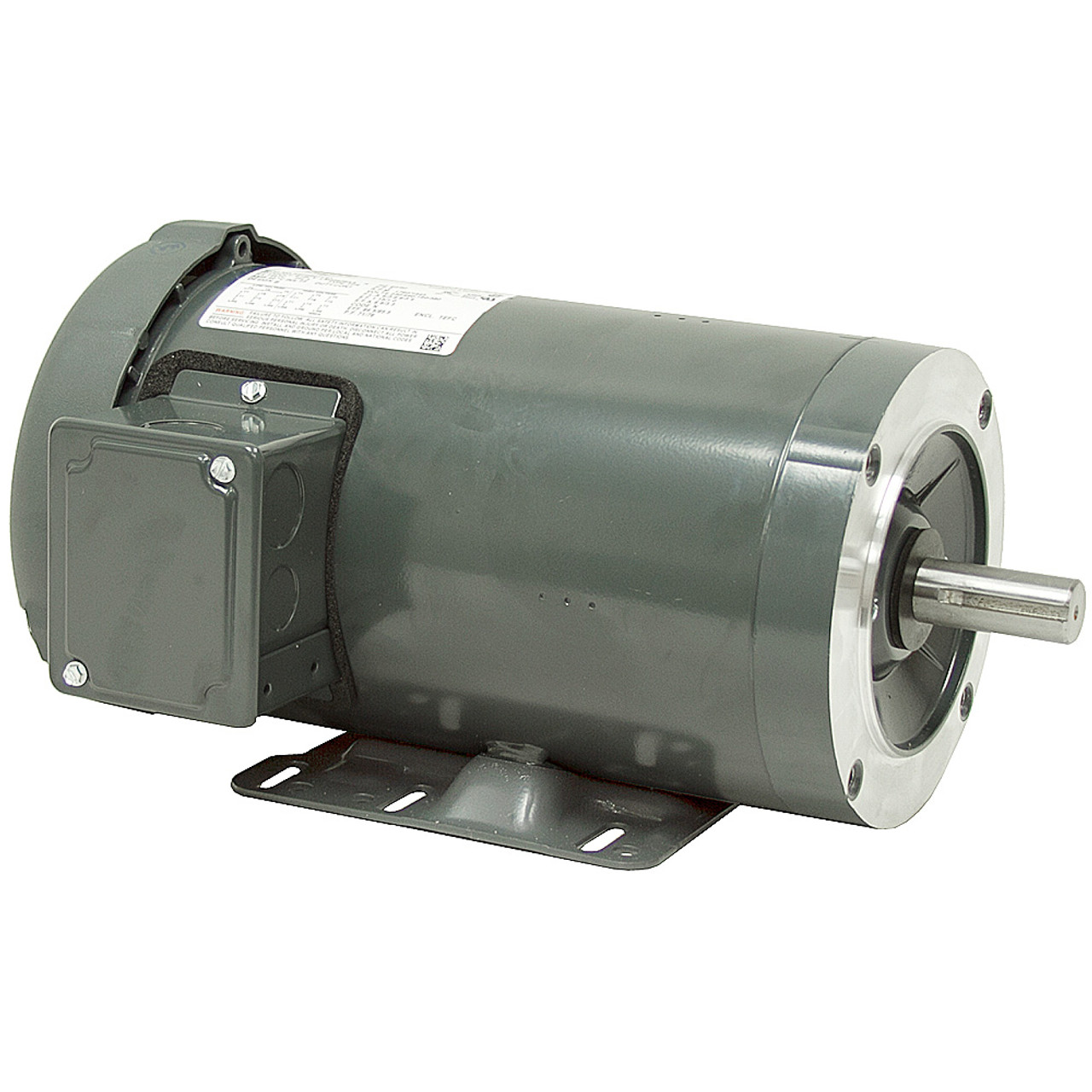

1-1/2 HP 1800 RPM 230/460 VAC 3PH 145TC PREMIUM EFFICIENCY FACE & BASE MOUNT MOTORBrand new, LINCOLN model SSF2B2TC61 premium efficiency three phase, electric motor. Inverter-rated, speed range 10:1. Steel frame. No thermal overload protection.
SPECIFICATIONS
- Catalog Number LM32825
- Power 1-1/2 HP
- Voltage 208-230/460 AC
- Amperage 4.7-4.6/2.3 Amps
- Speed 1800 RPM
- Rotation Reversible
- Phase 3
- Service Factor 1.15
- Bearings Ball
- Enclosure TEFC
- Duty Continuous
- Frame 145TC Face Mount
- Rigid Base Mount
Six 0.34" diam. holes on 4-7/8" x 4" to 5" centers - Shaft 7/8" diam. x 2-1/8" w/ 3/16" keyway
- Size 12.25" x 9.24" x 7.34"
- Shpg. 46 lbs.
Four 3/8"-16 tapped holes on
5-7/8" diameter bolt circle
| California Residents |
|
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov |
Product Videos
Custom Field
Prop65 true
Legacy Part Number 10-2735
PDF Page Catalog298-130.pdf
Badges made-in-usa,surplus-item,last-one
Enclosure TEFC
Frame 145TC
HP 1-1/2
RPM 1750
