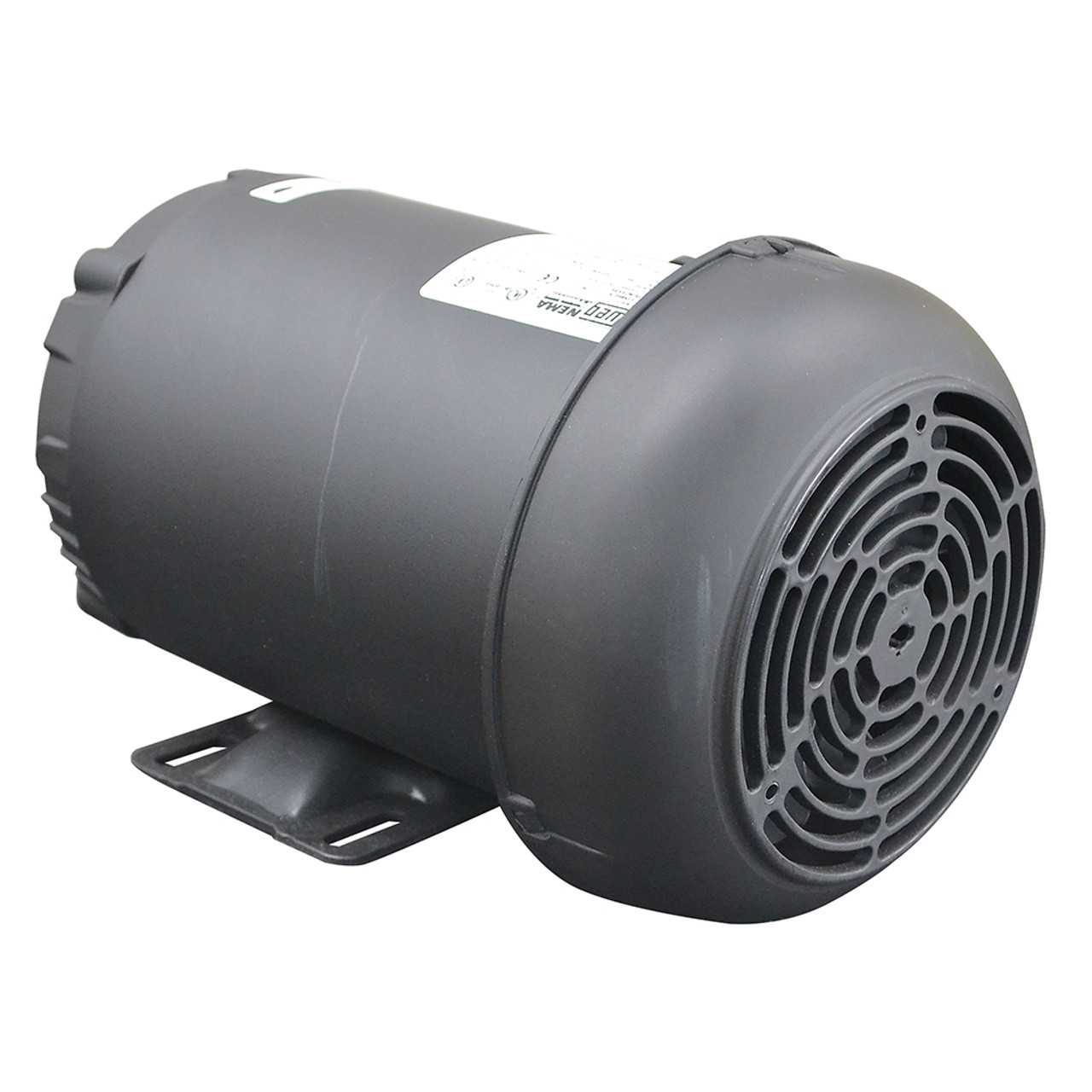

1.5 HP 3520 RPM 230/460 Volt AC 3Ph WEG Motor [501405]

Product Description

1-1/2 HP 3520 RPM THREE PHASE MOTOR
New, WEG three phase electric motor.

SPECIFICATIONS

• Power 1-1/2 HP
• Voltage 230/460 AC
• Phase 3
• Frequency 60 Hz
• Amperage 3.74/1.87 Amps
• Speed 3520 RPM
• Rotation CCW
• Service Factor 1.15
• Enclosure TEFC
• Duty Continuous
• Frame 56J
• Face Mount
    Four 3/8"-16 tapped holes on
    5-7/8" diameter bolt circle
• Rigid Base Mount
    Four 0.34" diam. holes on 4-7/8" x 3" centers
• Shaft 5/8" dia. x 1-7/8" w/ 7/16-20 thread 11/16" long
• Size 12-1/2" x 9" x 7-1/4"
• Shpg. 36 lbs.
