Product Description

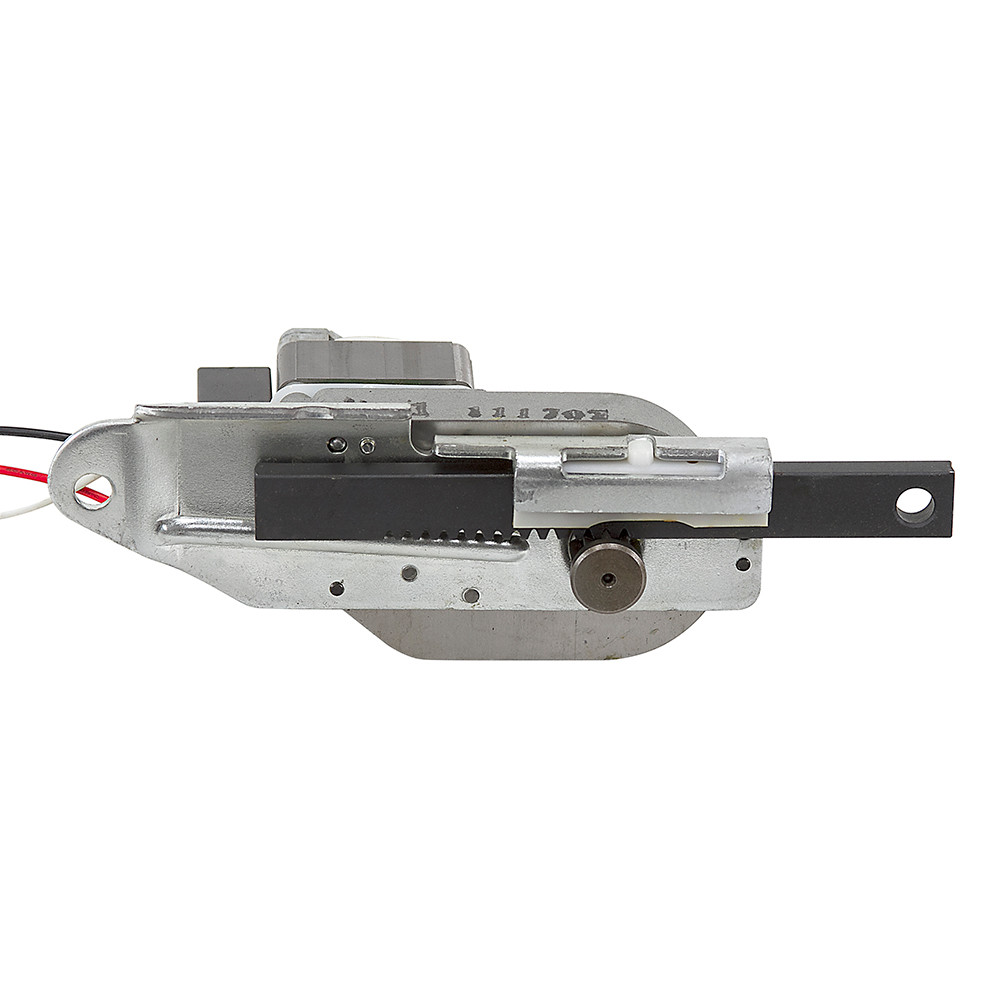

1.75" STROKE LINEAR ACTUATORNew, FBS model# 6197V capacitor-start, inducton-run linear actuator. Shaded pole motor with open construction. Stroke is 1-3/4" to prevent locking-up of pinion.
SPECIFICATIONS
- Voltage 120 VAC, 60 Hz
- Amperage 1.2 Amps
- Thread 2-1/2" Long, 13T Rack and 0.765" O.D., 10T Pinion Gear
- Stroke 1-3/4"
- Extension Speed 0.170" / sec. (no load)
- Extension Time 10 seconds to Full Stroke, No Load
- Limit Switches No limit switches
- Direction Reversible
- Duty Intermittent
- Retracted length 8-7/16"
- Rod end pin hole 3/8"
- Base end pin hole 3/8"
- Size 9-5/16" x 5-1/4" x 3-1/4"
- Shpg. 6 lb.
