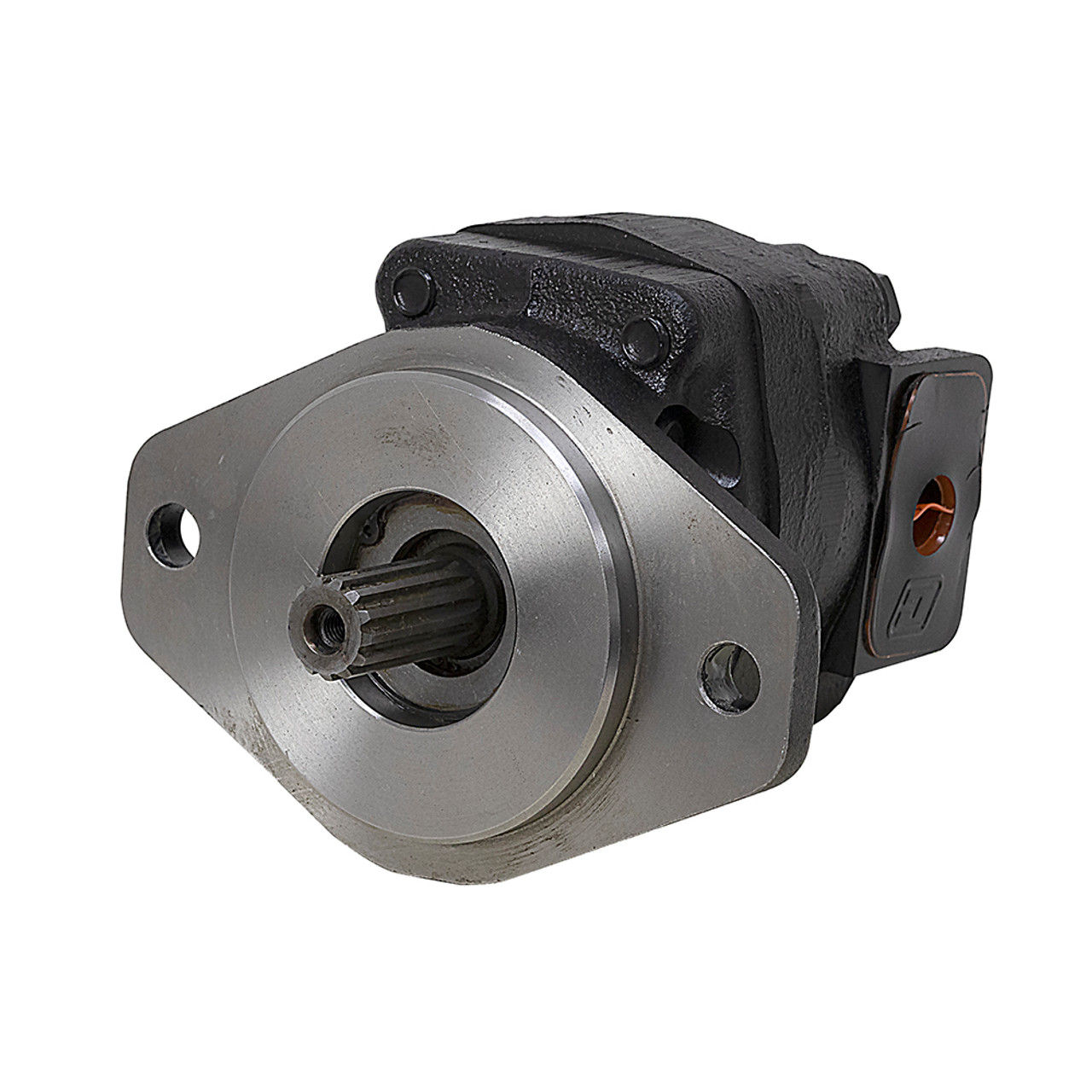

1.86 cu in Parker Commercial Hydraulics 326-9210-015 Hydraulic Motor [904247]

Product Description

1.86 cu in PARKER COMMERCIAL HYDRAULICS HYDRAULIC MOTOR
New, Parker Commercial Hydrauic 326-9210-015 hydraulic motor. Three-piece cast iron construction for assembly flexibility. Applications include tire trucks, salt and sand spreaders, aerial lifts, low boy trailers, live (moving) floor trucks and roll off trailers

SPECIFICATIONS

• Brand Parker Commercial Hydraulics
• Part Number 326-9210-015
• Family PGM315
• Displacement 1.86 cu. in. / rev.
• Motor Type Gear
• Rotation Reversible
• Pressure: 3300 PSI max. continuous pressure
• Torque:
     940 in-lbs. @ 900 RPM
     905 in-lbs. @ 3000 RPM
• Speed:
     900 RPM min.
     3000 RPM max.
• Flow:
     9.6 GPM @ 900 RPM.
     27.2 GPM @ 3000 RPM
• Mount Two bolt SAE B
• Shaft 13 tooth SAE B Spline
• Ports 3/4" Code 61 Flange
• Case Drain SAE 4
• Size 7" x 7" x 5-1/2"
• Shpg. 23 lbs.
