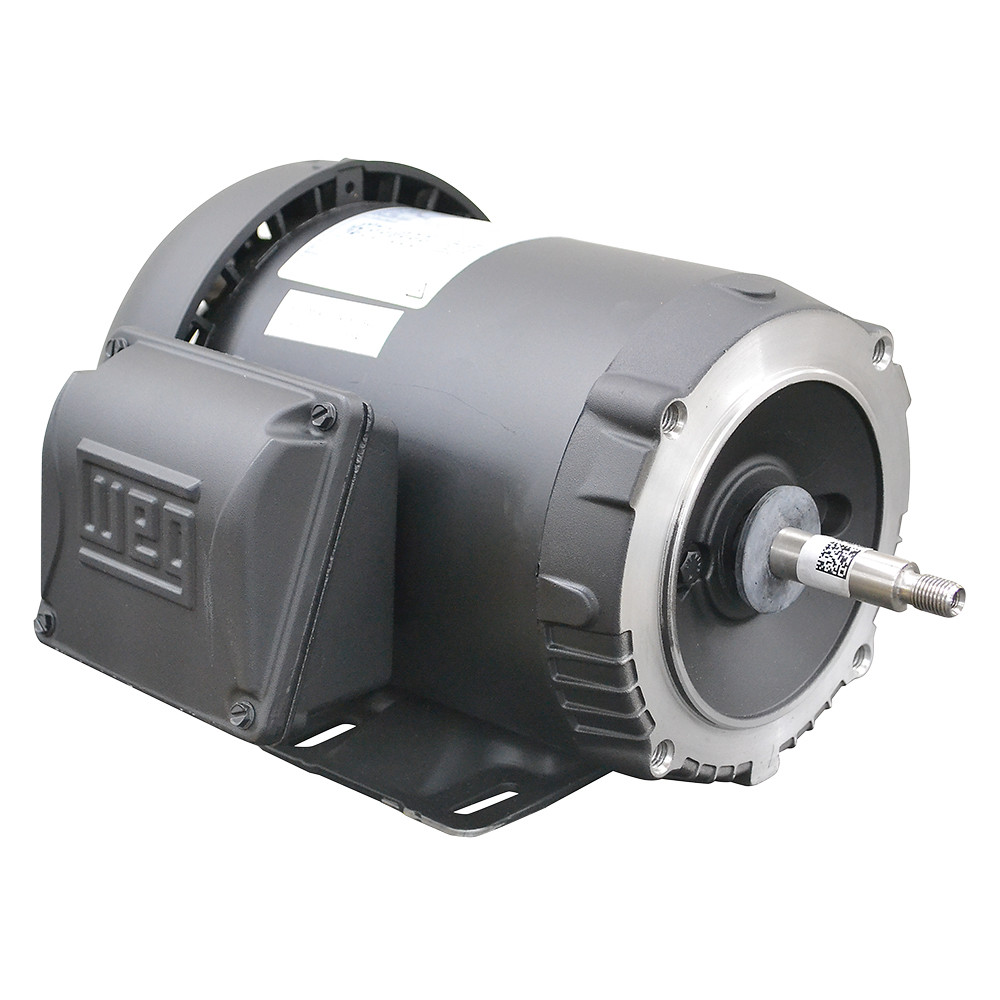

1 HP 3510 RPM 230/460 Volt AC 3Ph WEG Motor W01-TE01C0X0X [501404]

Product Description

• Power 1 HP
• Voltage 230/460 AC
• Phase 3
• Frequency 60 Hz
• Amperage 2.88/1.44 Amps
• Speed 3510 RPM
• Rotation Reversible
• Service Factor 1.15
• Enclosure TEFC
• Duty Continuous
• Frame 56J
• Face Mount
    Four 3/8"-16 tapped holes on
    5-7/8" diameter bolt circle
• Rigid Base Mount
    Four 0.34" diam. holes on 4-7/8" x 3"
• Shaft 5/8" dia. x 1-7/8" smooth w/ 7/16"-20 thread and 11/16" long
• Size 121/2" x 9-1/2" x 7-1/4"
• Shpg. 27 lbs.
