Product Description
1 HP 1760 RPM 3PH 230/460 VAC BASE MOUNT MOTORBrand new, WORLDWIDE NATE1-18-56, general purpose 3-phase motor for use in blowers, pumps, conveyors, and many other diverse applications.Totally Enclosed Fan Cooled (TEFC) enclosures.

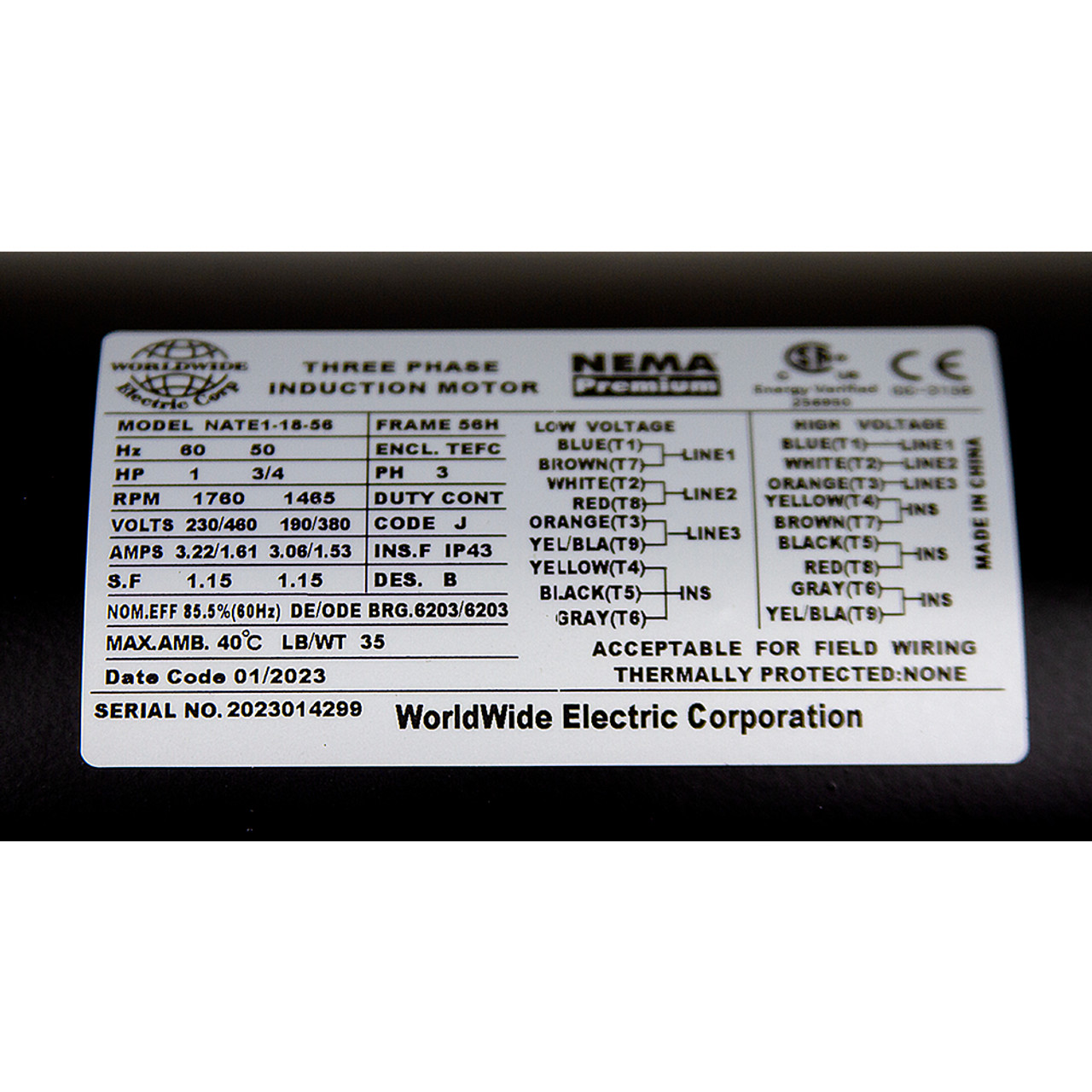

SPECIFICATIONS
- Power 1 HP
- Voltage 230/460 AC
- Phase 3
- Frequency 60 Hz
- Amperage 3.22/1.61 Amps
- Speed 1760 RPM
- Rotation Reversible
- Service Factor 1.15
- Bearings Ball
- Thermal Overload Protection None
- Enclosure TEFC
- Duty Continuous
- Frame 56H
- Base Mount Six 1-1/4" x 5/16" elliptical slots on 2" to 5" x 4-7/8" to 5-7/8" centers
- Shaft 5/8" dia. x 1-7/8" overall length w/ 3/16" wide x 1-3/4" long keyway
- Size 11-3/8" x 8-3/4" x 7"
- Shpg. 41 lbs.
| California Residents |
|
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov |
Product Videos
Custom Field
Prop65 true
Legacy Part Number 10-3432
PDF Page Catalog298-131.pdf
Badges regular-stock
Enclosure TEFC
Frame 56H
HP 1
RPM 1760
Voltage 230/460 Volt AC
