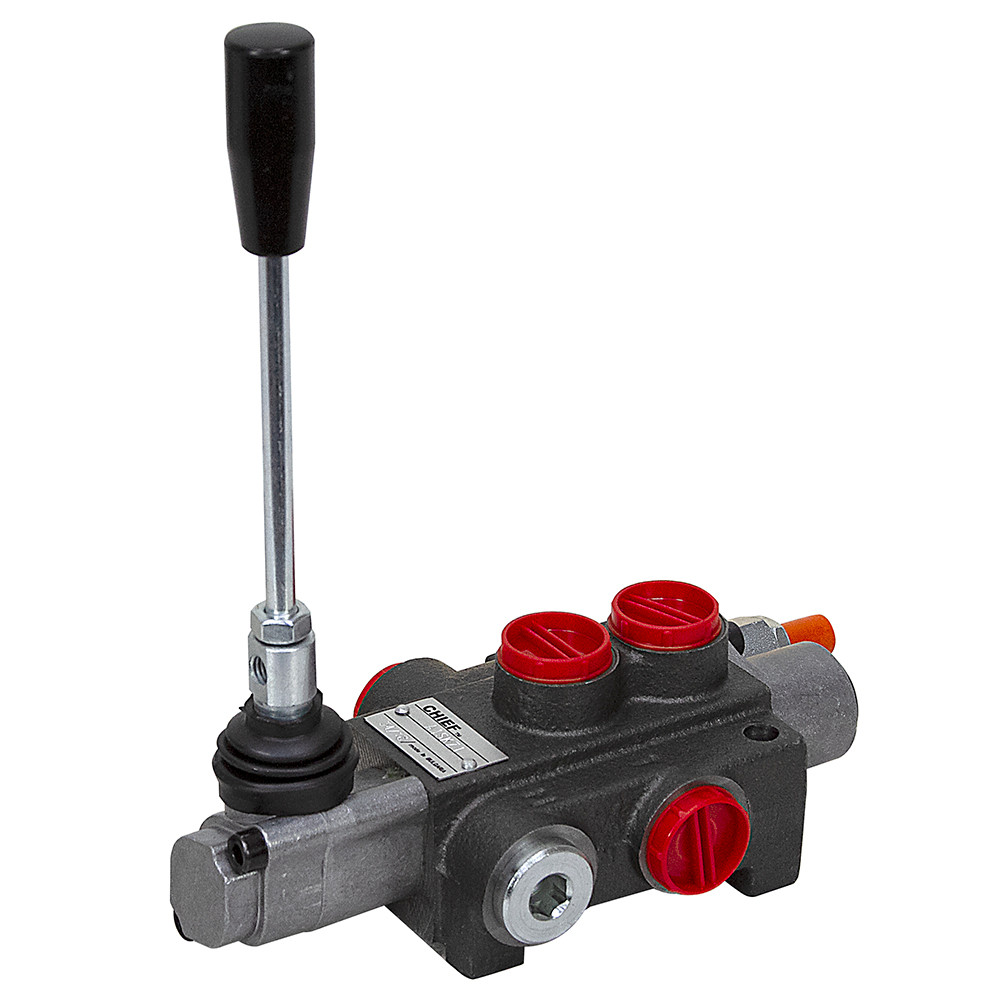

1 Spool 10 GPM Chief 220906 DA Hydraulic Valve [904535]

Product Description

COMPACT 1 SPOOL DOUBLE ACTING DIRECTIONAL CONTROL VALVE
New CHIEF  directional control valve for operating double acting cylinders. Ideal for small tractors and other compact applications.  Features include monoblock construction, built-in adjustable pressure relief valve, load check, spring centering spool action, open center, side inlet/outlet ports, top work ports and vertical or horizontal handle mounting.
Closed center conversion plug and power beyond conversion plug sold separately.

SPECIFICATIONS

• Open Center
• Spools One
• Flow 10 GPM max.
• Pressure 3600 PSI max.
• Relief Valve Set at 2250 PSI, adj. 1500-3600 PSI
• In/Out Ports SAE 10
• Work Ports SAE 8
• Mount 2 hole base
• Size 8-1/4" x 3-5/8" x 2-7/16"
• Shpg. 8 lbs.

Spool Details:
  Spool 1 DA cylinder spool, spring to center
