Product Description

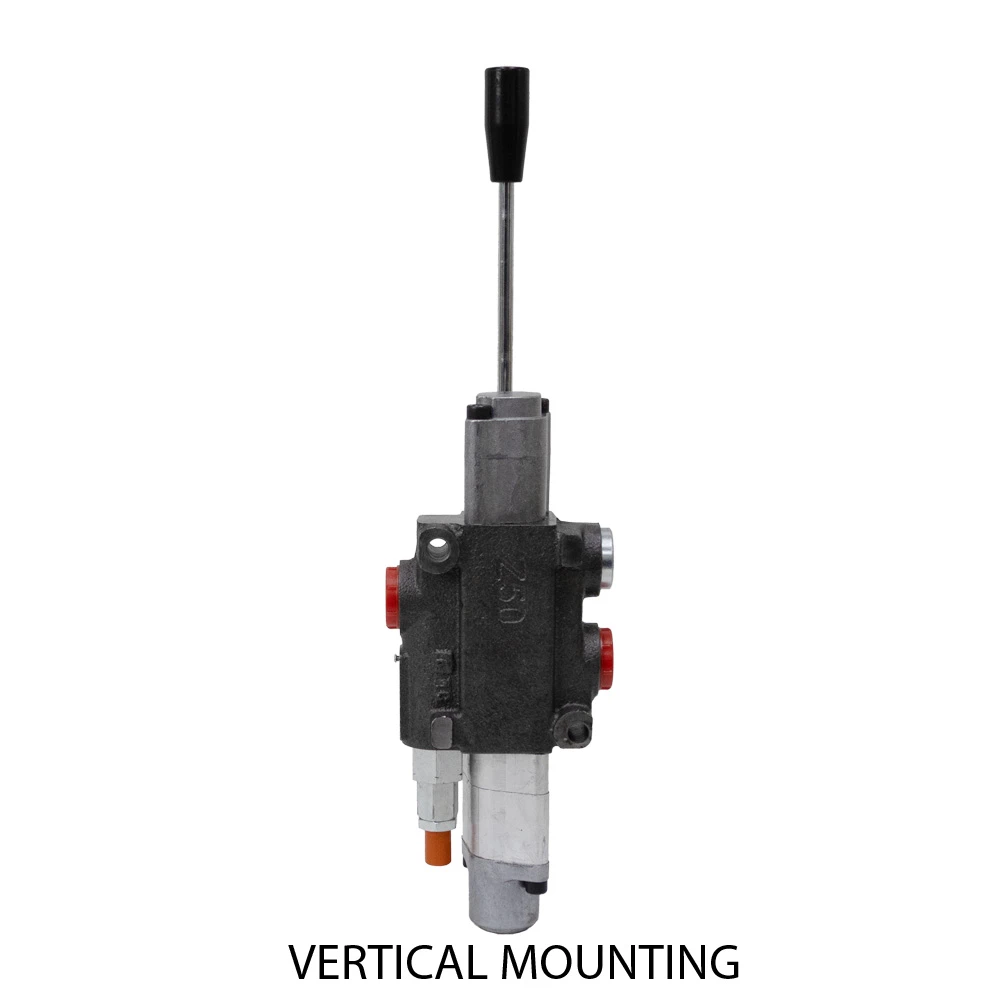

FINE METERING SINGLE SPOOL 13 GPM TANDEM CENTER CONTROL VALVE W/ FLOAT DETENT
New Chief 220871 4-way 4-position tandem center fine metering valve w/ float detent without name plate. Used for double acting cylinders. The valve's work ports are blocked in neutral. When in the float detent, work ports are open to tank to allow cylinder to "float". This valve features cast iron construction and precisely machined hydraulic channels that provide improved throughput and metering.
SPECIFICATIONS
- Brand Chief
- Model Number 220871
- Open Center
- Spools 1
- Spool Type 4 Way 4 Position
- Flow 13 GPM
- Pressure 3625 PSI
- In/Out Ports 10 SAE
- Work Ports 8 SAE
- Mount Two 0.35" thru holes
- Handle Length 6.38"
- Size 9.58" x 3.42" x 3.42" w/o handle
- Shpg 8 lbs.
Spool Details:
Spool 1 Double Acting cylinder spool, spring to center with float detent
| California Residents |
|
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov |
Product Videos
Custom Field
Prop65 true
Badges surplus-item,last-one
Max Flow 11 t0 16 GPM
Spool Type Cylinder
Spools 1
Valve Type Open Center
Dimensional Diagram dr907150.pdf
