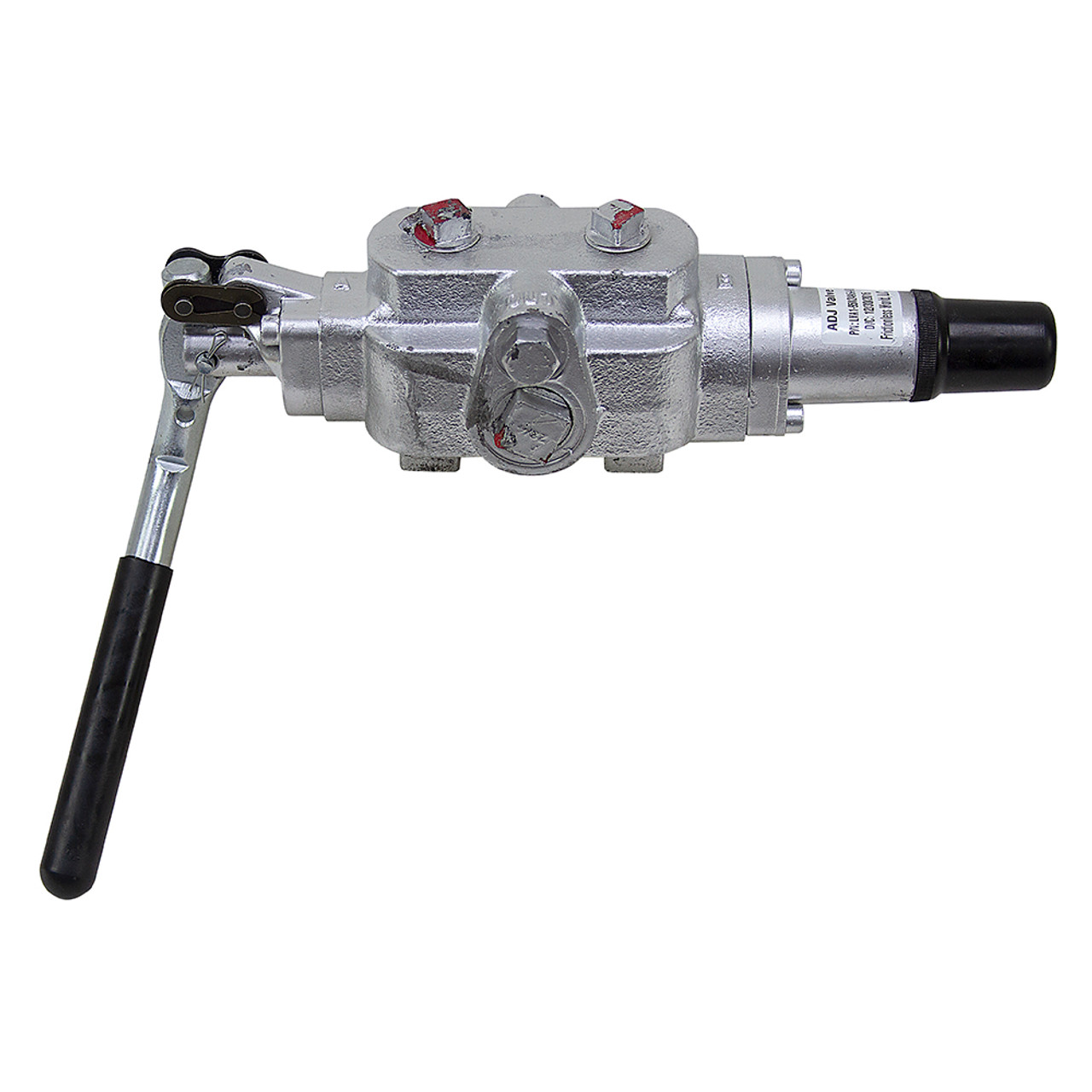

1 Spool 30 GPM Closed Center Log Splitter Valve Dirty Hand Tools 101789 [905061]

Product Description

1 SPOOL 30 GPM LOG SPLITTER VALVE
 New,  hydraulic control valve for operating double acting cylinders. Use with closed center hydraulic systems on tractors. Common valve used on log splitters.  Pressure-release operated detent on return stroke with spool out, spring center on extend with spool in.  Work Port A (retract port) closest to handle and work port B (extend port) farthest from handle. Handle has a 40 degree bend  and can be positioned for different valve orientations with work ports facing up or down.

SPECIFICATIONS

• Closed Center
• Spools One
• Flow 30 GPM max.
• Pressure 3500 PSI max.
• Relief Valve Adj. set at 3500 PSI
• Detent Release Pressure 797-1015 PSI
• In/Out Ports 3/4" NPT
• Work Ports 1/2" NPT
• Mount  (4) M8-1.25 tapped holes in base, 1" x 2-5/8" bolt centers
• Size 11" x 3-3/4" x 3"
• Shpg. 10 lbs.

Spool Details:
  Spool 1 Double acting cylinder, spring center extend/auto detent retract
