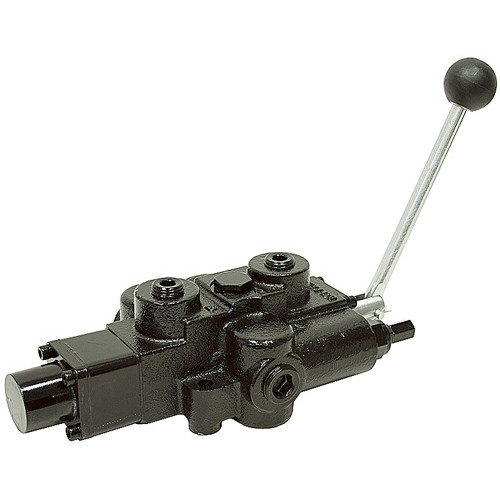

1 Spool 30 GPM Prince RD512GG5A4B1 Valve w/Float [901262]

Product Description

1 SPOOL 30 GPM PRINCE RD512GG5A4B1 OC VALVE W/FLOAT
Brand new PRINCE. Hydraulic control valve for operating double acting cylinders. Monoblock gray cast iron body. Hard chrome plated spools. Load checks. Convertible to power beyond or closed center by changing conversion plug (see related items above).(click here to see the same valve with ORB ports)


SPECIFICATIONS

• Open Center
• Spools One
• Flow 30 GPM max.
• Pressure 3000 PSI max.
• Relief Valve factory set at 2000 PSI Adjustable 1500-3000 PSI
• In/Out Ports 3/4" NPT
• Work Ports 1/2" NPT
• Mount 3 holes thru body
• Size 11" x 5" x 3-1/4"
• Shpg. 16 lbs.

Spool Details:
  Spool 1 Double acting spring centered with detented float position.
