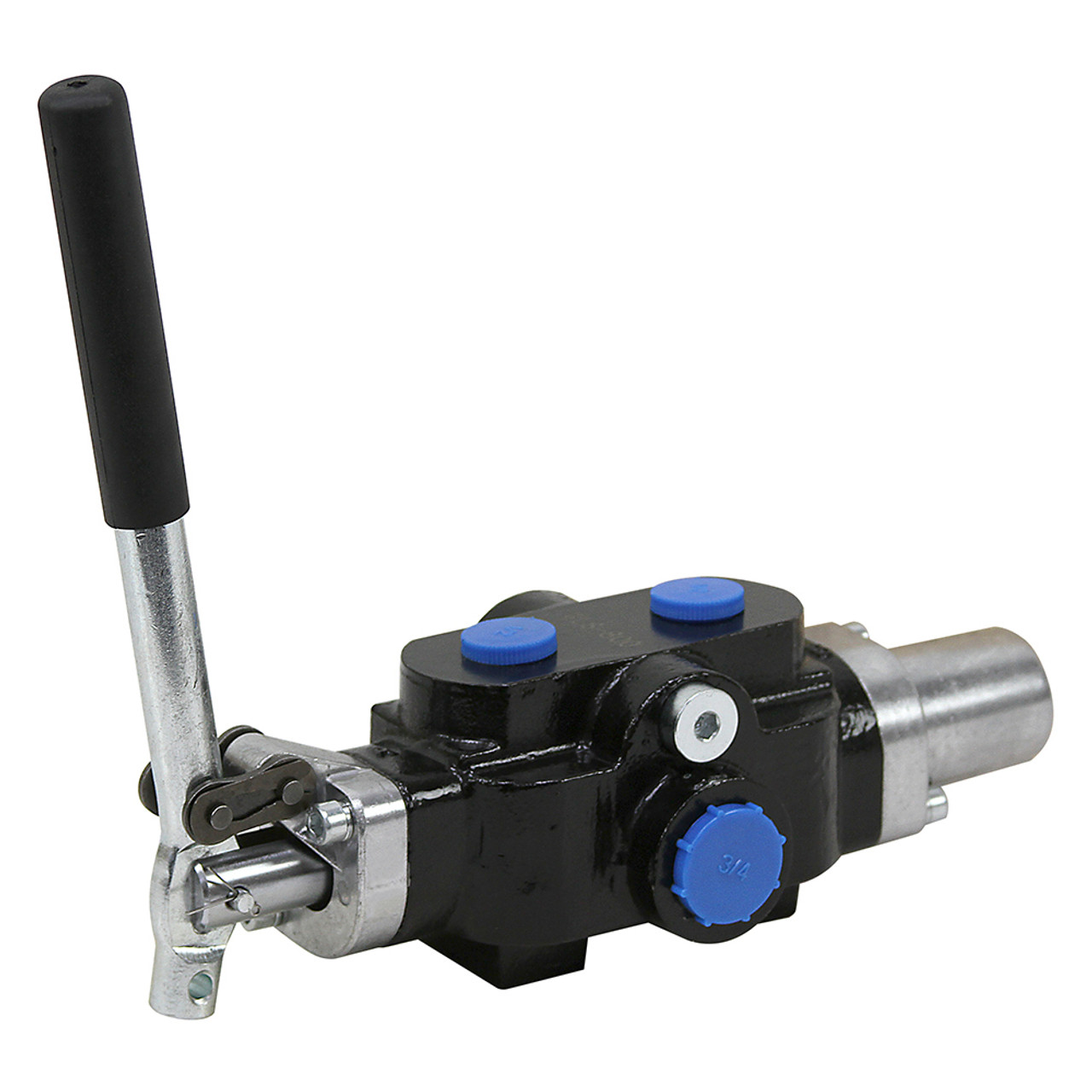

1 Spool 30 GPM Log Splitter Valve Wolverine by Prince Mfg WLS800 [904556]

Product Description

1 SPOOL 30 GPM LOG SPLITTER VALVE
Brand New, PRINCE WLS-800 hydraulic control valve for operating double acting cylinders. Common valve used on log splitters.  Pressure-release operated detent on return stroke with spool in, spring center on extend with spool out.  Work Port A (retract port) closest to handle and work port B (extend port) farthest from handle. Handle can be positioned for different valve orientations for mounting.  Detailed instructions included.

SPECIFICATIONS

• Open Center
• Spools One
• Flow 30 GPM max.
• Pressure 3265 PSI max.
• Relief Valve Adj. set at 2250 PSI
• Detent Release Pressure 700 PSI
• In/Out Ports 3/4" NPT
• Work Ports 1/2" NPT
• Mount  Four 3/8"-16 tapped holes in base on 1" x 2-5/8" centers
• Size 10" x 3-3/8" x 3"
• Shpg. 10 lbs.

Spool Details:
  Spool 1 Double acting cylinder, spring center extend/auto detent retract
