Product Description

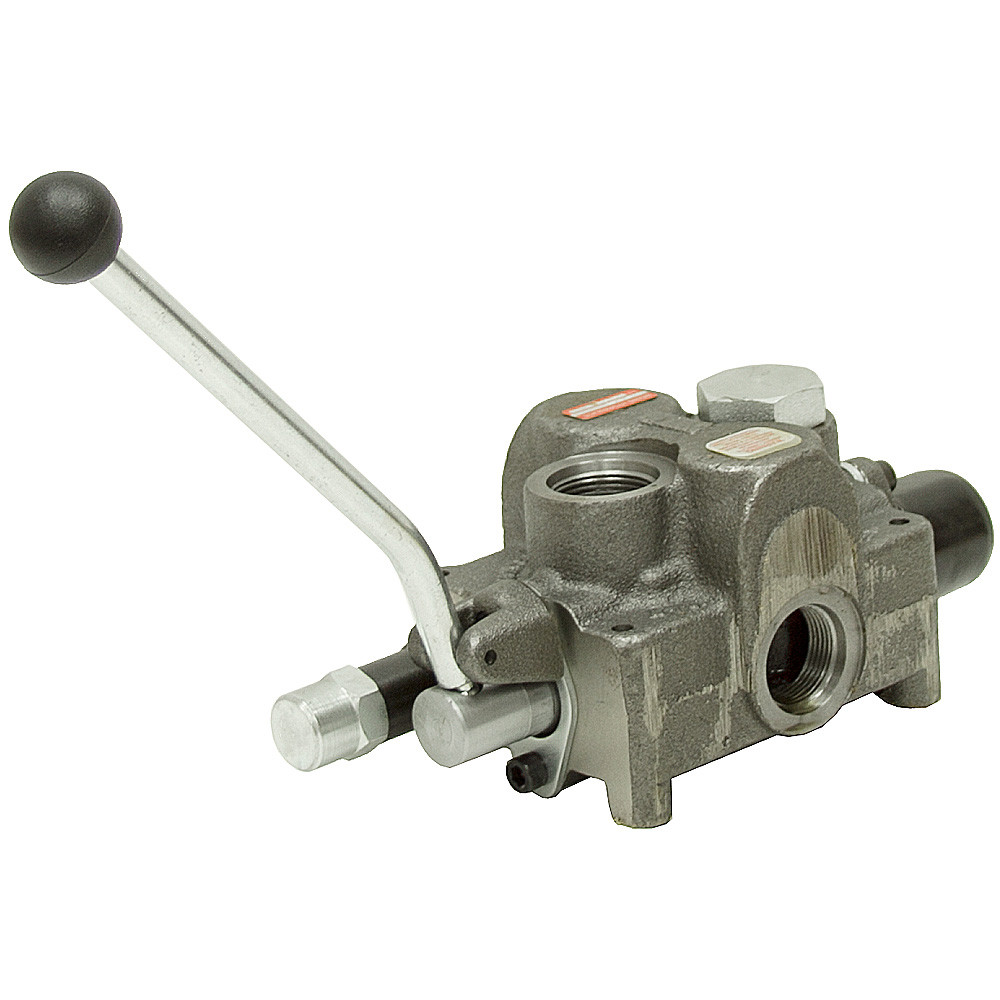

SINGLE ACTING 45 GPM BRAND OC CONTROL VALVEBrand new, BRAND HYDRAULICS model DC16T3LBS high flow directional control valve. Cast iron body with Buna-N O-rings. High lift, ball spring relief valve. Handle included.
SPECIFICATIONS
- Manufacturer BRAND
- Model Number DC16T3LBS
- Open Center
- Spools One
- Flow 45 GPM max.
- Pressure 3,000 PSI max.
- Relief Valve Adj. set at 1,500 PSI
- Reqd. Filtration 20 micron
- In/Out Ports SAE 16
- Work Port SAE 16
- Mount 4 bolts on
4-3/4" x 3-3/8" centers - Size 10-5/16" x 5-1/32" x 4-1/4"
- Shpg. 18 lbs.
Spool 1 Single acting cylinder spool, spring-to-center, 3-position
| California Residents |
|
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov |
Product Videos
Custom Field
Prop65 true
Legacy Part Number 9-7493
PDF Page Catalog298-30.pdf
Dimensional Diagram dr9-7493.pdf
Badges made-in-usa,regular-stock
Max Flow 31 GPM and Greater
Spool Type Cylinder
Spools 1
Valve Type Open Center
