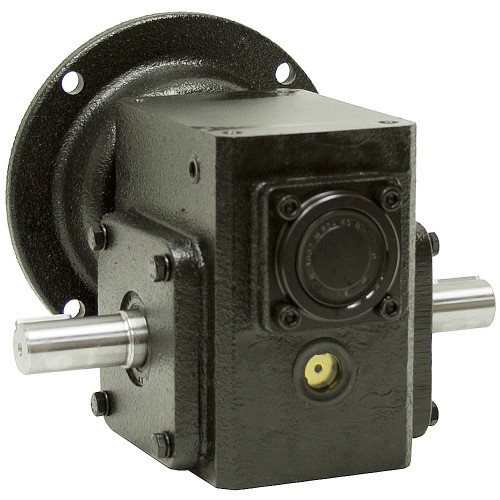

10:1 Right Angle Cast Iron Worm Gear Reducer 1.57 HP 56C Hollow Output Worldwide HDRF-175-10-H-56C [601986]

Product Description

10:1 RIGHT ANGLE WORM GEAR REDUCER
Brand new, WorldWide Electric right-angle worm gear reducer. Standard NEMA-C motor mounting flange. Cast iron housing. Interior oil channel directly guides and constantly lube bearings. Embedded double-lip oil seals. Tapered roller bearings on output and input shafts. Double bearings used on both shafts. A set of four tapped mounting holes on top and bottom of housing. Shipped filled with Mobil #SHC632 synthetic oil for the "A" position. (Refer to installation and maintenance manual for oil capacity for different mounting positions)

SPECIFICATIONS

• Brand WorldWide Electric
• Model Number HDRF-175-10-H-56C
• Box Size 175 (1.75" Center of Input Shaft to Center of Output Shaft)
• Ratio 10:1
• Input Speed 1750 RPM max.
• Output Speed 175 RPM max.
• Mechanical HP (1.0 SF) Ratings
    Input HP 1.57 HP
    Output Torque 515 in-lb.
    Output HP 1.38 HP
• Thermal Capacity Ratings
    Input HP 1.36 HP
    Output Torque 445 in-lb.
    Output HP 1.19 HP
• Efficiency 88%
• Overhung Load 650 lbs.
• Output Shaft Thrust Load 550 lbs.
• Output Shaft Centerline Height 2.062"
• Motor Mount NEMA 56C w/ four 0.433" dia. holes on 5.875" dia. B.C.
• Input Bore 5/8" keyed bore
• Output Type Hollow Bore
• Output Hollow Bore 1" dia. x 6-3/16" keyed thru-length
• Mount Two sets of four 5/16"-18 tapped holes on 4-3/16" x 2-3/4" centers
• Size 7-5/16" x 6-1/2" x 6-13/16"
• Shpg. 26 lbs.
