10:1 Right Angle Cast Iron Worm Gear Reducer 3.47 HP 56C Hollow Output Worldwide HDRF-237-10-H-56C [602078]

Product Description

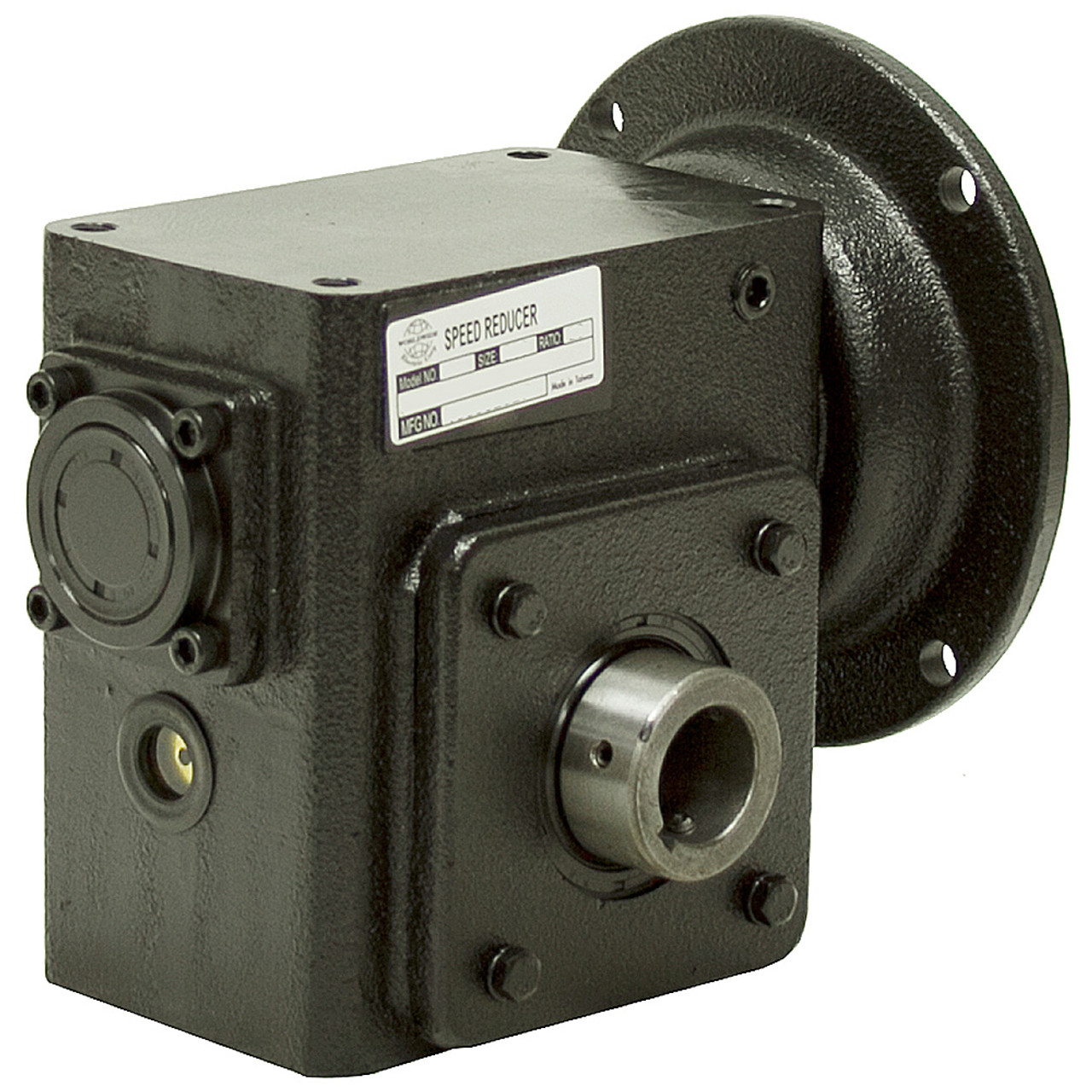

10:1 RIGHT ANGLE WORM GEAR REDUCER
Brand new, WorldWide Electric right-angle worm gear reducer. Standard NEMA-C motor mounting flange. Cast iron housing. Interior oil channel directly guides and constantly lube bearings. Embedded double-lip oil seals. Tapered roller bearings on output and input shafts. Double bearings used on both shafts. A set of four tapped mounting holes on top and bottom of housing. Shipped filled with Mobil #SHC632 synthetic oil for the "A" position. (Refer to installation and maintenance manual for oil capacity for different mounting positions)

SPECIFICATIONS

• Brand WorldWide Electric
• Model Number HDRF-237-10-H-56C
• Box Size 237 (2.37" Center of Input Shaft to Center of Output Shaft)
• Ratio 10:1
• Input Speed 1750 RPM max.
• Output Speed 350 RPM max.
• Mechanical HP (1.0 SF) Ratings
    Input HP 3.47 HP
    Output Torque 1158 in-lb.
    Output HP 3.09 HP
• Thermal Capacity Ratings
    Input HP 2.24 HP
    Output Torque 746 in-lb.
    Output HP 1.99 HP
• Efficiency 89%
• Overhung Load 900 lbs.
• Output Shaft Thrust Load 900 lbs.
• Output Shaft Centerline Height 2.5"
• Motor Mount NEMA 56C w/ four 0.433" dia. holes on 5.875" dia. B.C.
• Input Bore 5/8" keyed bore
• Output Type Hollow Bore
• Output Hollow Bore  1-1/4" dia. x 6-7/16" keyed thru-length
• Mount Two sets of four 3/8"-16 tapped holes on 5" x 2-7/8" centers
• Size 8-3/4" x 6-1/2" x 8-5/8"
• Shpg. 40 lbs.
