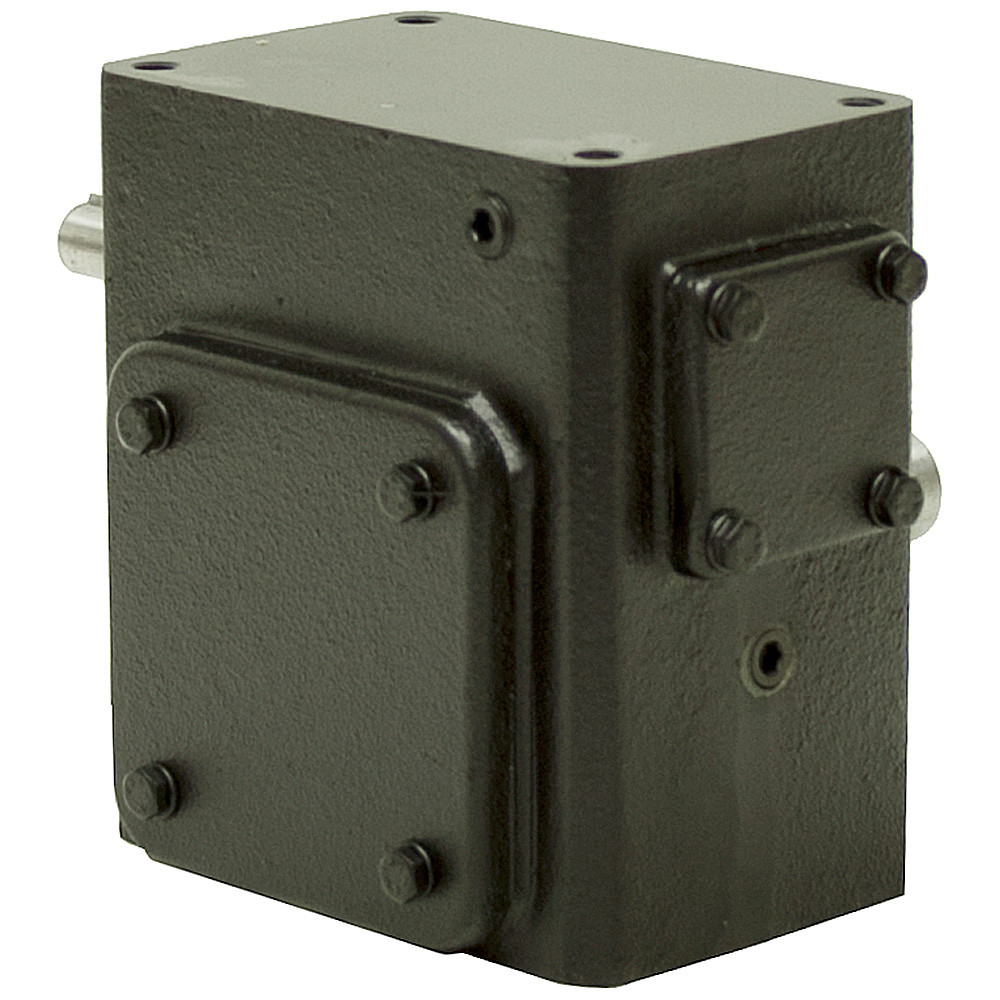

10:1 Right Angle Cast Iron Worm Gear Reducer 4.17 HP Left Output Worldwide HDRS-262-10-L [601985]

Product Description

10:1 RIGHT ANGLE WORM GEAR REDUCER
Brand new, WorldWide Electric right-angle worm gear reducer. Cast iron housing. Interior oil channel directly guides and constantly lube bearings. Embedded double-lip oil seals. Tapered roller bearings on output and input shafts. Double bearings used on both shafts. A set of four tapped mounting holes on top and bottom of housing. Shipped filled with Mobil #SHC632 synthetic oil for the "A" position.(Refer to installation and maintenance manual for oil capacity for different mounting positions)

SPECIFICATIONS

• Brand WorldWide Electric
• Model Number HDRS-262-10-L
• Box Size 262 (2.62" Center of Input Shaft to Center of Output Shaft)
• Ratio 10:1
• Input Speed 1750 RPM max.
• Output Speed 175 RPM max.
• Mechanical HP (1.0 SF) Ratings
    Input HP 4.17 HP
    Output Torque 1445 in-lb.
    Output HP 3.74 HP
• Thermal Capacity Ratings
    Input HP 3.06 HP
    Output Torque 1061 in-lb.
    Output HP 2.75 HP
• Efficiency 90%
• Overhung Load 1000 lbs.
• Output Shaft Thrust Load 1000 lbs.
• Output Centerline Height 2.938"
• Input Shaft 3/4" dia. x 2" keyed
• Output Type Left Hand Shaft
• Output Shaft 1-1/8" dia. x 2-5/8" keyed
• Mount Two sets of four 3/8"-16 tapped holes on 6-3/8" x 3-3/8" centers
• Size 8-5/8" x 2-1/4" x 8"
• Shpg. 51 lbs.
