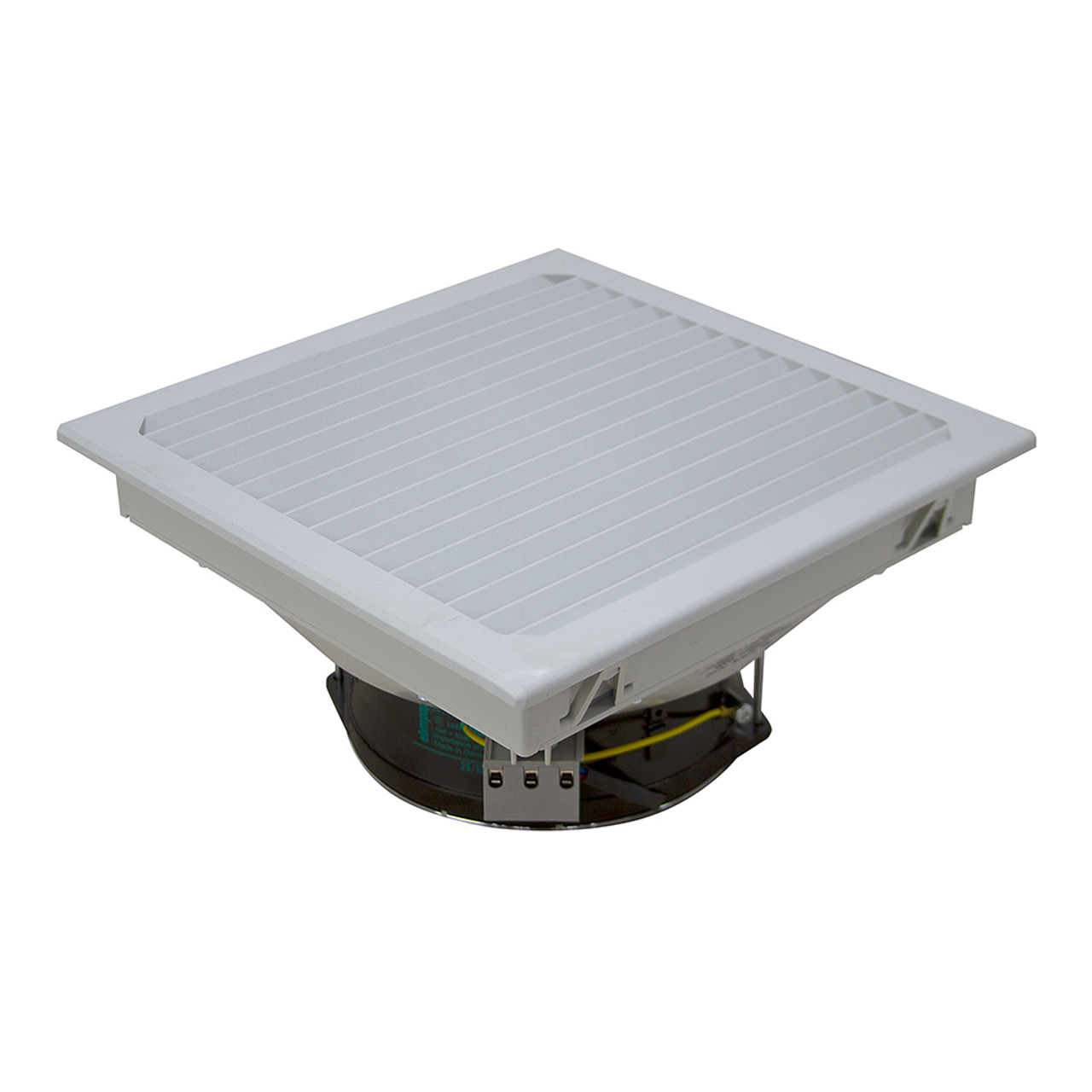

10" 149 CFM 24 Volt DC Fan SF1024514 [501215]

Product Description

10" GRILL 149 CFM 24 VDC FILTER FAN
New, Pentair fresh air enclosure thin filter fan model SF1024514. High airflow and low noise for cooling electrical equipment or general air circulation. Grey plastic grill. Air is pulled through the plastic grill and filter. Plastic housing with plastic blades. Click-fit design installs into enclosure wall. Snap over grill with foam filter. 52db rating. Terminal block electrical connection.

SPECIFICATIONS

• Pull Type Fan
• Model Number SF1024513
• Flow 149 CFM max.
• Voltage 24 DC
• Amperage 0.66 Amps
• Power 16 Watts
• Speed 2950 RPM
• Operating Temperature Range Min. 14° F to Max. 131° F
• IP Rating 55
• Mount 8 holes on 4-5/8" to 9-1/4" x 4-5/8" to 9-1/4" centers
• Cutout Dimensions 8.78" x 8.78"
• Blade Dia. 5-1/2"
• Number of Blades 7
• Size 9-7/8" x 9-7/8" x 4"
• Shpg. 6 lbs.
