Product Description
10.75" STROKE LINEAR ACTUATORNew, ICON HEALTH & FITNESS model# 315774 linear actuator. Power extend and power retract, rated to push up to 900 pounds, retract under no load. Hall effect sensor connected to internal gearing.
SPECIFICATIONS
- Voltage 120 VAC, 60 Hz
- Amperage 1.55 Amps
- Capacity Rated to push 900 lb.
- Thread 3/4"-6 Acme thread
- Stroke 10-3/4"
- Extension Speed 0.077" / sec. (no load)
- Extension Time 139 seconds to Full Stroke, No Load
- Limit Switches No limit switches
- Direction Reversible
- Duty Intermittent
- Retracted length 14"
- Rod end pin hole 3/8"
- Base end pin hole 3/8"
- Size 14-1/2" x 4-1/4" x 3-1/8"
- Shpg. 7 lb.
| California Residents |
|
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov |
Product Videos
Custom Field
Prop65 true
Legacy Part Number 10-3054
PDF Page Catalog298-146.pdf
Dimensional Diagram dr10-3054.pdf
Badges surplus-item,last-one
Load Rating 500 to 999 lbs.
Stroke 8'' to 11.99''
Voltage 120 Volt AC
![10.75" Stroke 120 Volt AC Linear Actuator Icon Health And Fitness 315774 [500971]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/500x659/products/8421/97821/10-3054__97215.1762805770.jpg?c=1 "10.75\" Stroke 120 Volt AC Linear Actuator Icon Health And Fitness 315774 [500971]")
![4.9375" Stroke 120 Volt AC Linear Actuator Icon Health & Fitness 349845 [500984]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/500x659/products/14323/97843/5-1874__50867.1762805776.jpg?c=1 "4.9375\" Stroke 120 Volt AC Linear Actuator Icon Health & Fitness 349845 [500984]")
![4.9375" Stroke 120 Volt AC Linear Actuator Icon Health & Fitness 349845 [500984]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/500x659/products/14323/97844/5-1874_1__38608.1762805776.jpg?c=1 "4.9375\" Stroke 120 Volt AC Linear Actuator Icon Health & Fitness 349845 [500984]")

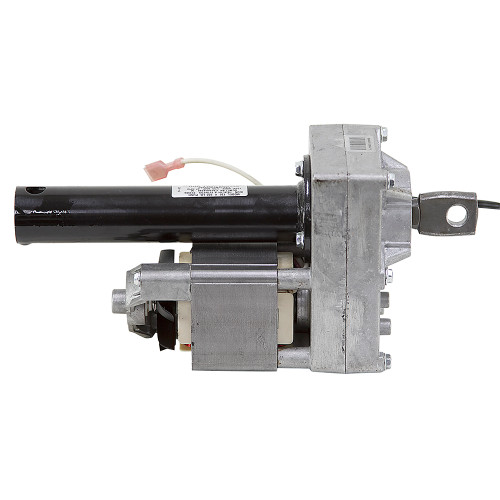

![5" Stroke 120 Volt AC Linear Actuator Icon Health And Fitness 353904 [500978]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/500x659/products/8338/97835/5-1897__19174.1762805773.jpg?c=1 "5\" Stroke 120 Volt AC Linear Actuator Icon Health And Fitness 353904 [500978]")
