Product Description

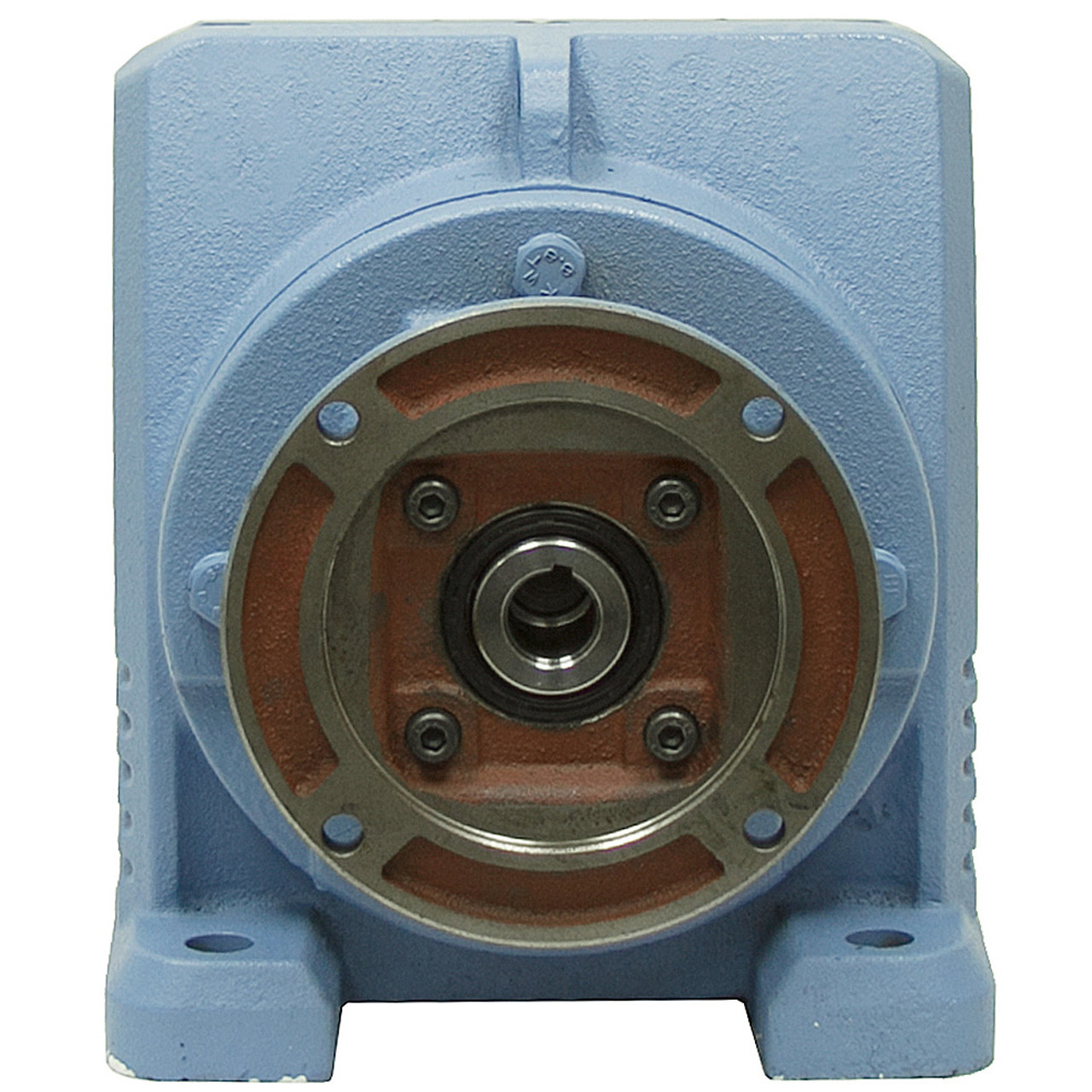

10.91:1 SIZE 77 7.5 HP INLINE GEAR REDUCERBrand new, World Wide Electric helical inline speed reducer. Cast iron housings. Drop-in replacement for most major inline reducer brands. Gearbox flanges are designed to accept NEMA C-Face electric motors.
SPECIFICATIONS
- Model Number WINL77-10/1-213/5TC
- Box Size 77
- Stages 2
- Nominal Ratio 10:1
- Actual Ratio 10.91:1

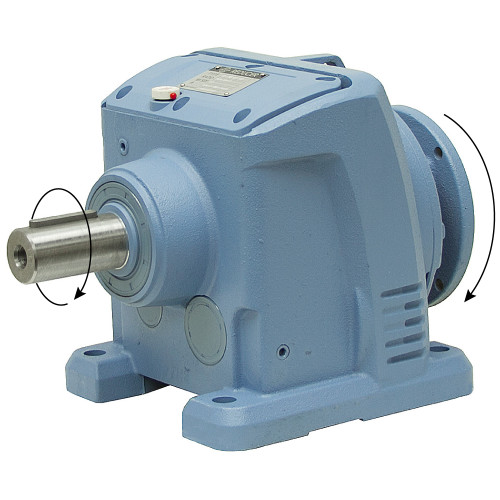

- Input Rotation Reversible, see shaft relation in above photo
- Output RPM @ 1800 RPM Input 160 RPM
- Input Hp 7.5 Hp Max
- Output Torque 2795 in.-lbs. Max
- Over-Hung Load 1035 lbs. Max
- Service Class III
- Motor Mount 213TC
- Output Shaft 1.625" dia. x 3.15" long keyed, 3/8" wide keyway, shaft end tapped 5/8"-11
- Base Mount Four 0.71" holes on 8.07" x 6.69" centers
- Shpg. 83 lbs.
| California Residents |
|
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov |
Product Videos
Custom Field
Truck true
Prop65 true
Legacy Part Number 13-1555-10-213TC
PDF Page Catalog298-111.pdf
Badges drop-ship
Input HP 7.5
Motor Mount 213TC
Nominal Ratio 10:1
