10" 92 CFM 115 Volt AC Fan ST1016514 [501212]

Product Description

10" GRILL 92 CFM 115 VAC FILTER FAN

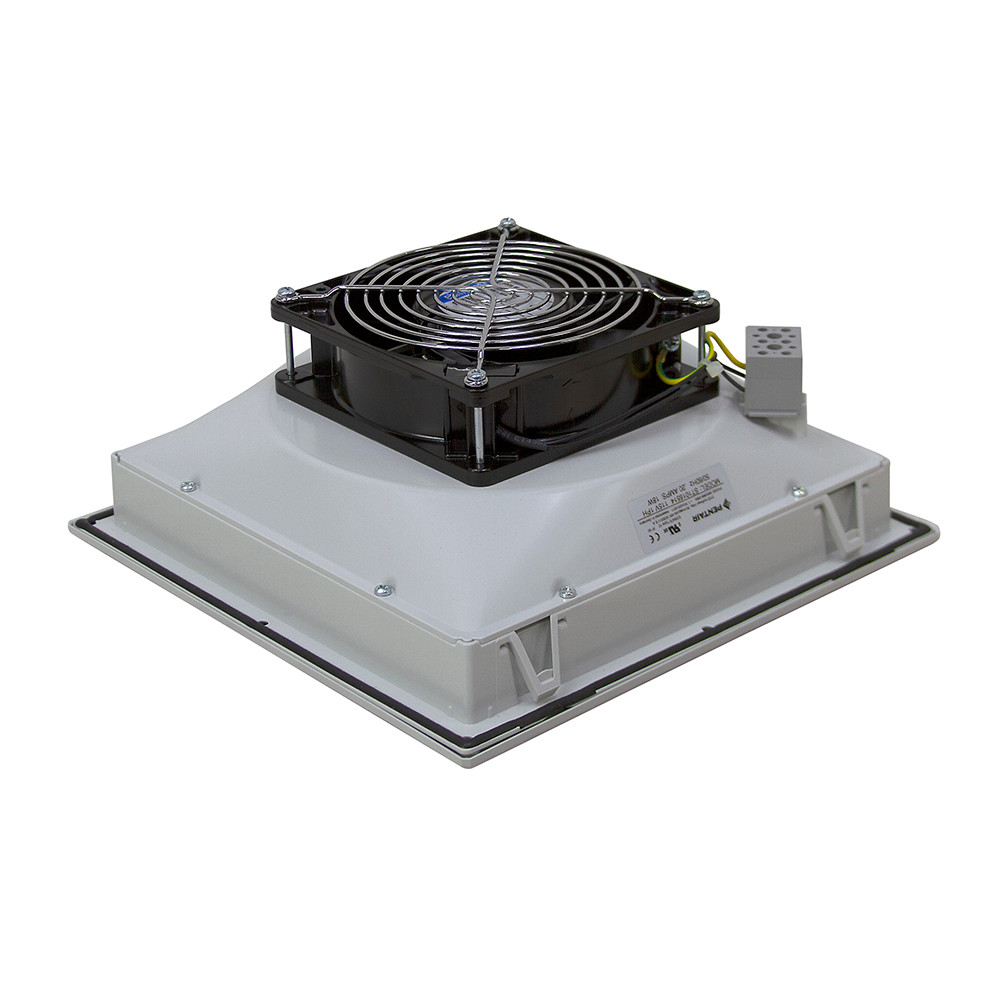

New, Pentair fresh air enclosure filter fan model ST1016514. High airflow and low noise for cooling electrical equipment or general air circulation. Grey plastic grill. Air is pulled through the plastic grill and filter. Metal housing with plastic blades. Click-fit design installs into enclosure wall. Snap over grill with foam filter. 44db rating. Terminal block electrical connection.

SPECIFICATIONS

• Pull Type Fan
• Model Number ST1016514
• Flow 92 CFM max.
• Voltage 115 AC
• Amperage 0.20 Amps
• Power 18 Watts
• Speed 3100 RPM
• Operating Temperature Range Min. 14° F to Max. 131° F
• IP Rating 55
• Mount 8 holes on 4-5/8" to 9-1/4" x 4-5/8" to 9-1/4" centers
• Cutout Dimensions 8.78" x 8.78"
• Blade Dia. 5-9/16"
• Number of Blades 7
• Size 9-7/8" x 9-7/8" x 4"
• Shpg.  6 lbs.
