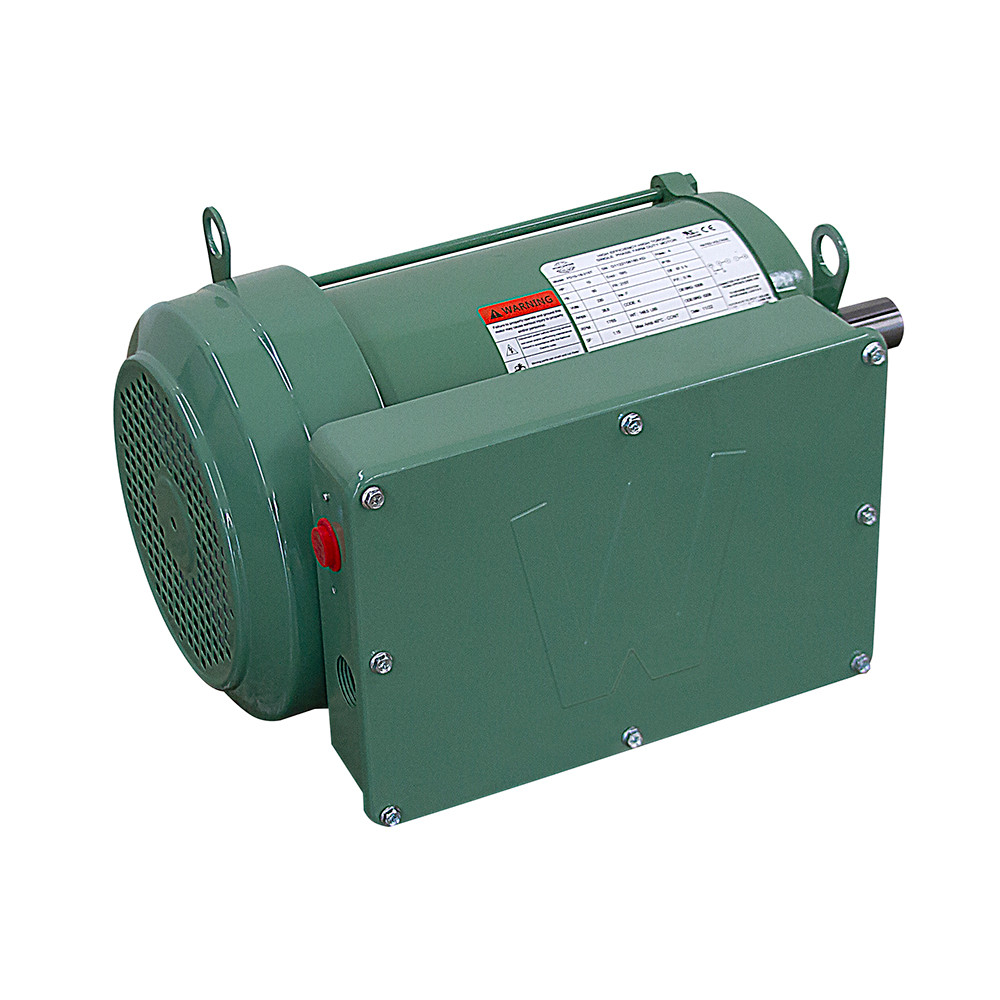

10 HP 230 Volt AC 1765 RPM WWE FD10-18-215T Farm Duty Motor [501566]

Product Description

10 HP 1765 RPM 230 VAC BASE MOUNT MOTOR
Brand new, WORLDWIDE FD10-18-215T, farm duty heavy duty motor for agricultural and other industrial use. Totally Enclosed Fan Cooled (TEFC) enclosures suitable for indoor or outdoor protection. Capacitor start/capacitor run motor for reduced amperage and high torque. Manual thermal overload protection.

SPECIFICATIONS

• Power 10 HP
• Voltage 230 AC
• Phase 1
• Frequency 60 Hz
• Amperage 38.8 Amps
• Speed 1765 RPM
• Rotation Reversible
• Service Factor 1.15
• Bearings Ball
• Thermal Overload Protection Manual
• Enclosure TEFC
• Duty Continuous
• Frame 215T
• Base Mount Eight 3/8" holes on 1-1/2" to 5-1/2" to 7" x 8-1/2" centers
• Shaft 1-3/8" dia. x 3-1/2" overall length w/ 1/4" wide x 2-3/8" long keyway
• Size 20" x 13-1/2" x 11-1/2"
• Shpg. 210 lbs.
