Product Description

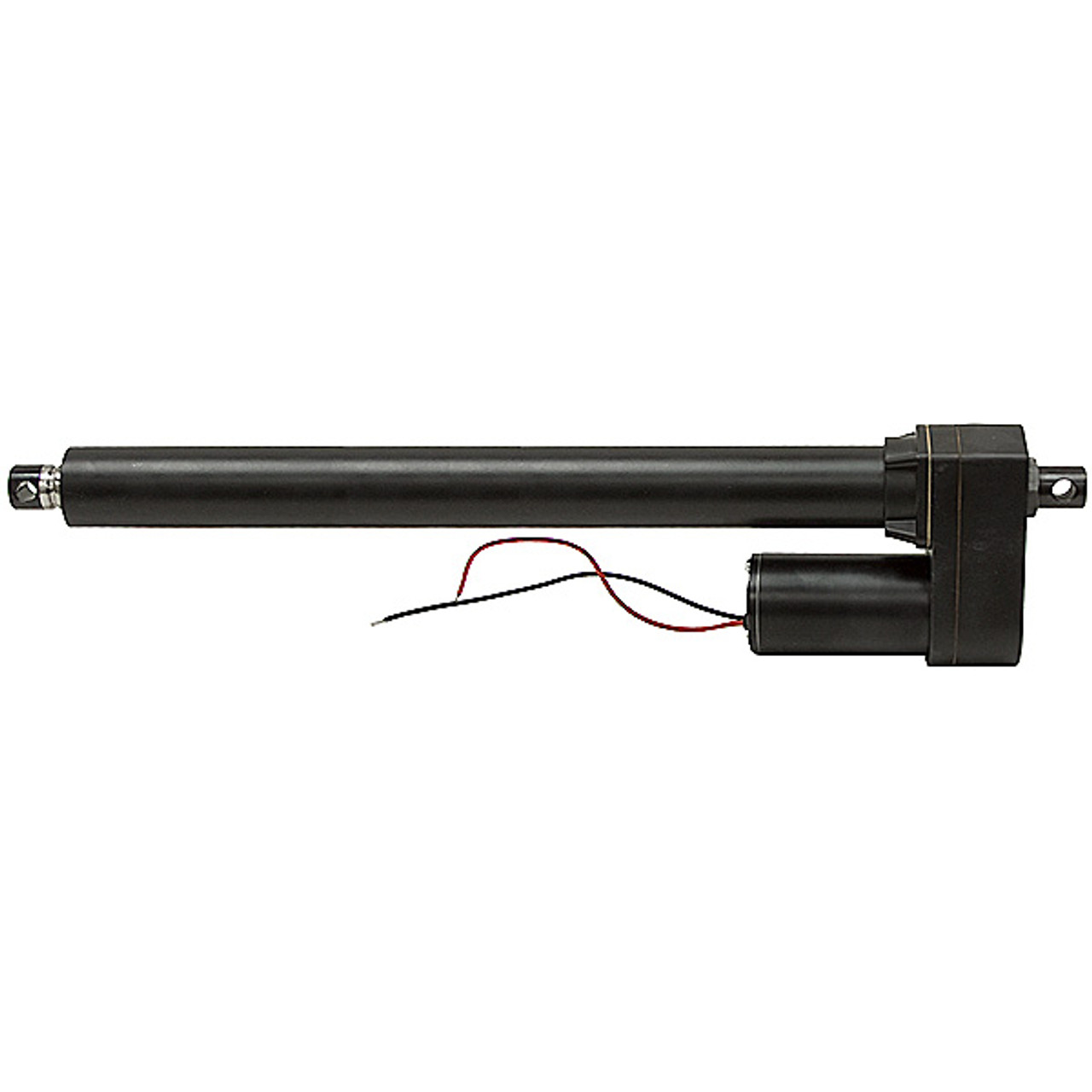

12 VDC 1000 LB. LINEAR ACTUATORBrand new, GLIDEFORCE model LACT12-1000B heavy duty linear actuator. Ball screw drive with built-in overload clutch. Metal housing is water resistant and sealed against dust. Permanent magnet motor. No limit switches or potentiometer.
SPECIFICATIONS
- Stroke 288 mm (11.34")
- Voltage 12 DC
- Push/Pull Rating
Dynamic 1000 lbs. max - Extension Speed
No Load 0.66 in/sec
Max Load 0.56 in/sec - Amps
No Load 2.4
Full Load 13.2 - Duty 25%
- Gear Ratio 20:1
- Operational Temperature Range
-13° F to +149° F - Enclosure IP65
- Pin Holes 1/2"
- Retracted Length 20.08"
- Shaft Dia. 1-1/8"
- Size 21.10" x 3.04" x 5.97"
- Shpg. 17 lbs.
| California Residents |
|
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov |
Product Videos
Custom Field
Prop65 true
Legacy Part Number 5-1680-12
PDF Page Catalog298-144.pdf
Additional Information as5-1680-12.pdf
Badges regular-stock
Load Rating 1000 lbs. and greater
Stroke 8'' to 11.99''
Voltage 12 Volt DC
