11 GPM 2 Stage Hydraulic Pump MTE S21202-5292 [902388]

Product Description

11 GPM 2 STAGE HYD PUMP

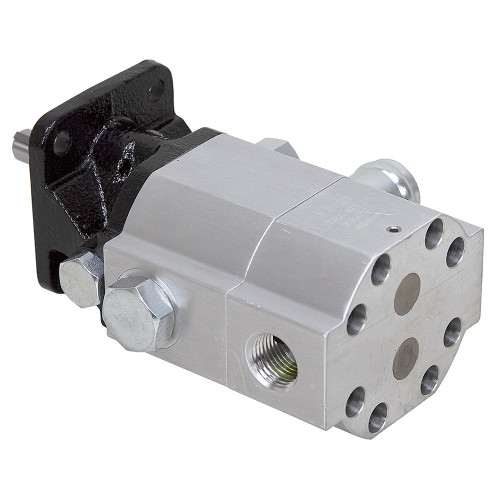

Brand new, MTE HYDRAULICS two stage HI/LO pressure hydraulic gear pump. Ideal for applications such as log splitters, presses and other equipment where rapid movement of the cylinder at low pressure is required prior to automatically switching to the high pressure mode to meet load requirements. The change from LO to HI pressure is automatic with the LO stage pressure preset at 700 PSI.  Cast iron construction.  Minimum of 5 HP required for gas engine use.

SPECIFICATIONS

• Displacement:
    0.110 cu. in. / rev. HI press. stage
    0.709 cu. in. / rev. LO press. stage
• Pump Type Gear
• Rotation CW
• Orientation Horizontal or Vertical
• Pressure: 3000 PSI max.
• Speed: 3800 RPM max.
• Flow:
    1.8 GPM HI press. stage
    11 GPM LO press. stage
• Unloading Pressure 700 PSI
• Mount 4 bolt USA 4F17
• Shaft 1/2" dia. x 1-1/2" long keyed
• Rqd. Filtration 25 micron
• Inlet Port 1" Hosebarb
• Outlet Port 1/2" NPT
• Size 6" x 4" x 3-11/16"
• Shpg. 10 lbs.
