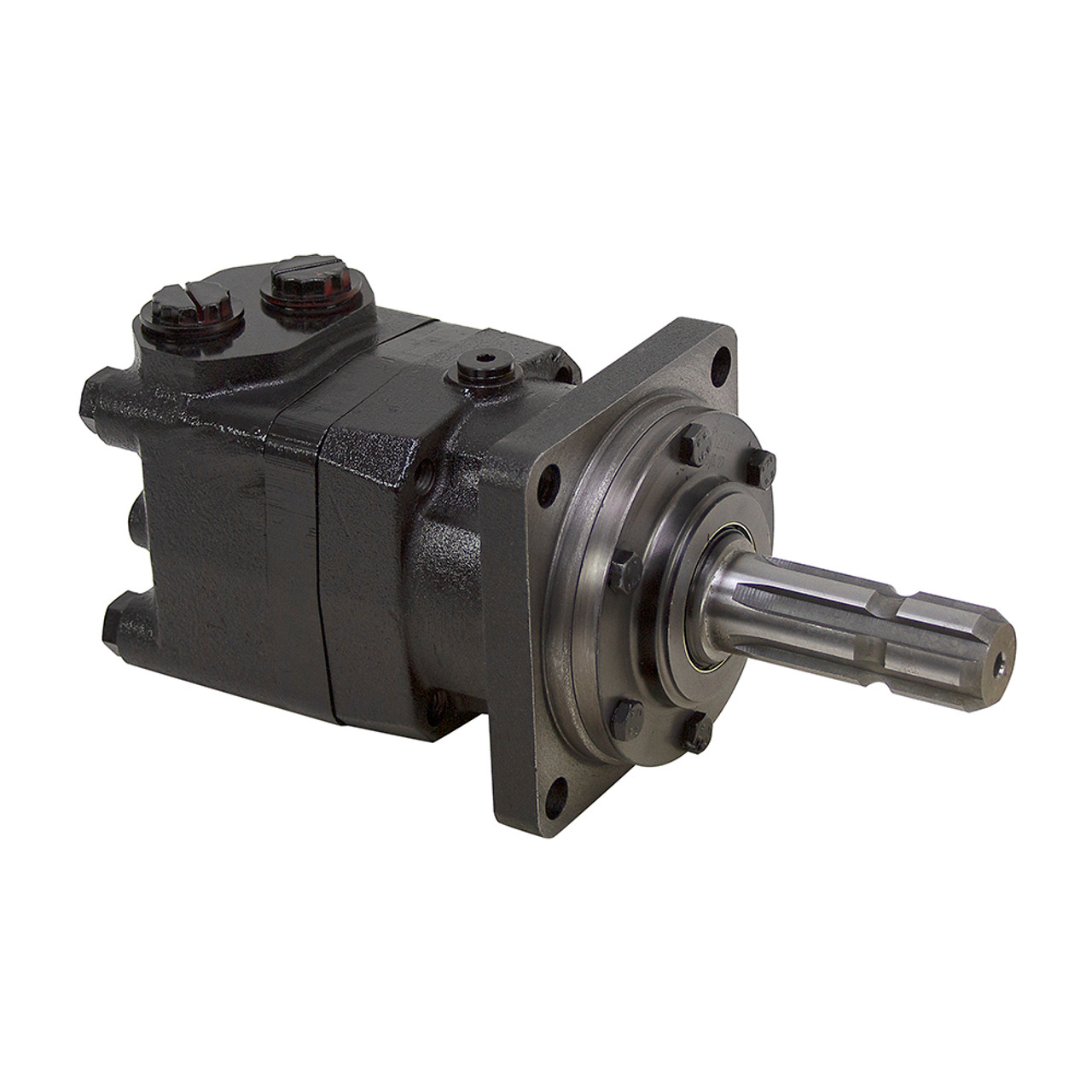

12.29 cu in PTO Drive Motor Dynamic BMT-200-K6-SL-S [905383]

Product Description

12.29 cu in PTO DRIVE MOTOR
Brand new, DYNAMIC BMT series hydraulic motor with agricultural standard six tooth splined shaft. Heavy duty with high flow capacity. ROLORTORC power element. Tapered roller bearings on output shaft for high axial and radial load capacity. Shaft has retention groove centered 1-1/2" from shaft end. Interchangeable with DANFOSS OMT motors.

SPECIFICATIONS

• Brand Dynamic
• Model 61722
• Build Number BMT-200-K6-SL-S
• Disp. 12.29 cu.in./rev.
• Pressure
  2944 PSI (Cont.)
  3533 PSI (Int.)
• Torque
  5213 in-lb. (Cont.)
  6354 in-lb. (Int.)
• Speed
  615 RPM (Cont.)
  743 RPM (Int.)
• Flow
  33.02 GPM (Cont.)
  39.63 GPM (Int.)
• Rotation Reversible
• Mount 4 bolt SAE C
  6-3/8" bolt circle, 5" pilot dia.
• Shaft 1-3/8" dia. x 5" 6T spline
• Ports SAE 12
• Case Drain SAE 6
• Size 7-5/8" x 5-5/8" x 5-5/8"
• Shpg. 48 lbs.
