12 Volt DC Facet 40185 Electronic Fuel Pump [300240]

Product Description

12 VDC ELECTRONIC FUEL PUMP

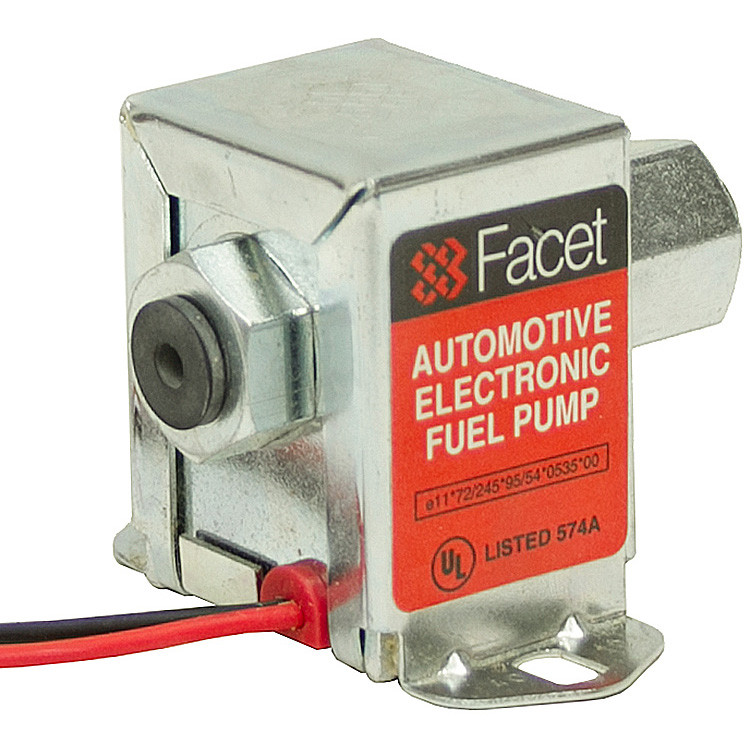

Brand new, FACET model 40185 Cube solid state electronic fuel pump. Self priming and self regulating fuel pump that is designed for use on all low and high pressure carburetor equipped automobiles, vans, trucks, generators, agricultural, gasoline and diesel engines, marine, construction and utility equipment.
Internal check valve stops the fuel from going back to the tank when the pump is turned off and it also increases dry lift.
Ground positive or negative, reverse polarity protection.  Compatible with gasoline, diesel, biodiesel, E85, blended alcohol and fuel additives.

SPECIFICATIONS

• Brand Facet
• Model Number 40185
• Voltage 12 Volts DC
• Amps 1.6
• Flow 32 GPH
• Pressure 9-11.5 PSI (Min-Max)
• Ports 1/8" NPT female
• Positive Lead Bare wire
• Negative Lead Ring terminal
• Operating Ambient Temperature Range -40°F to 180°F
• Mount Two 0.28" bolt holes on 2.53" centers
• Max. Lift From Bottom of Fuel Tank 96"
• Internal Check Valve Yes
• Positive Shut-off Valve No
• Mounting Orientation  The fuel pump should be mounted with the outlet above the inlet
• Size 3" x 3-1/4" x 2-3/8"
• Shpg. 2 lbs.
