Product Description

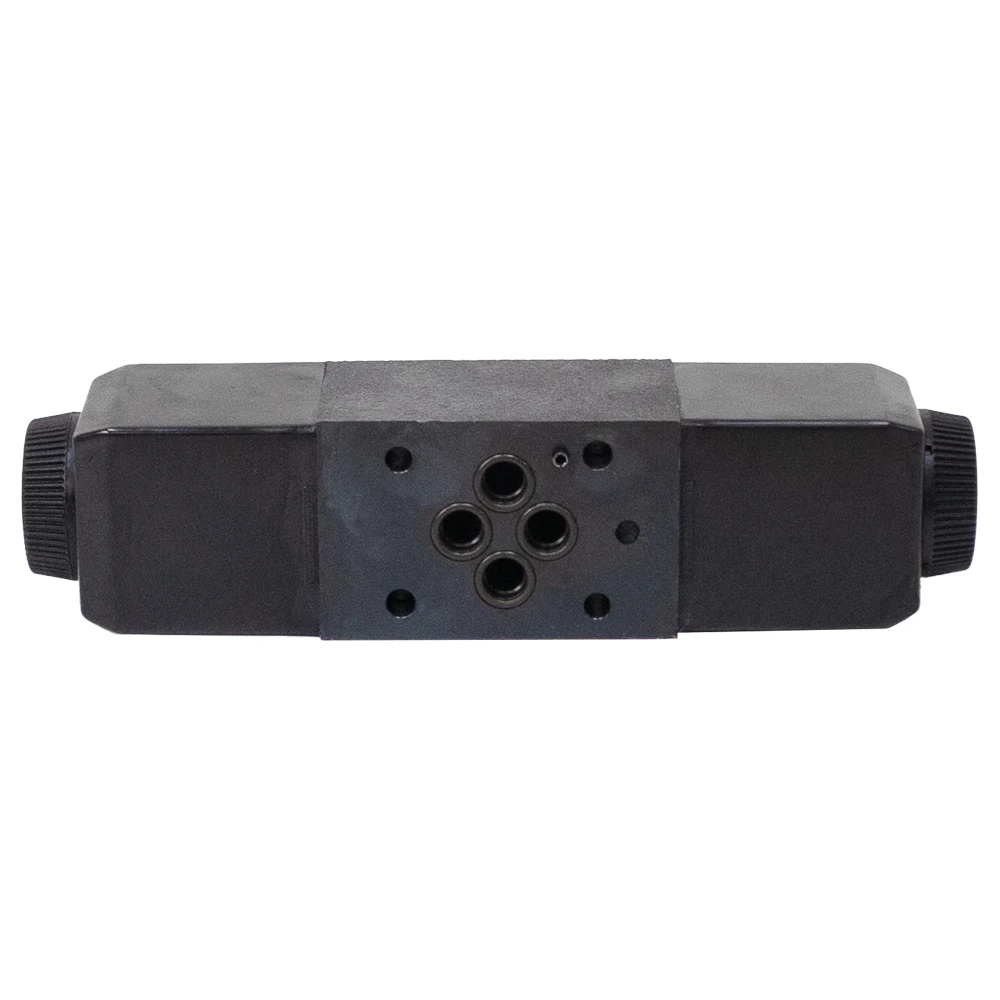

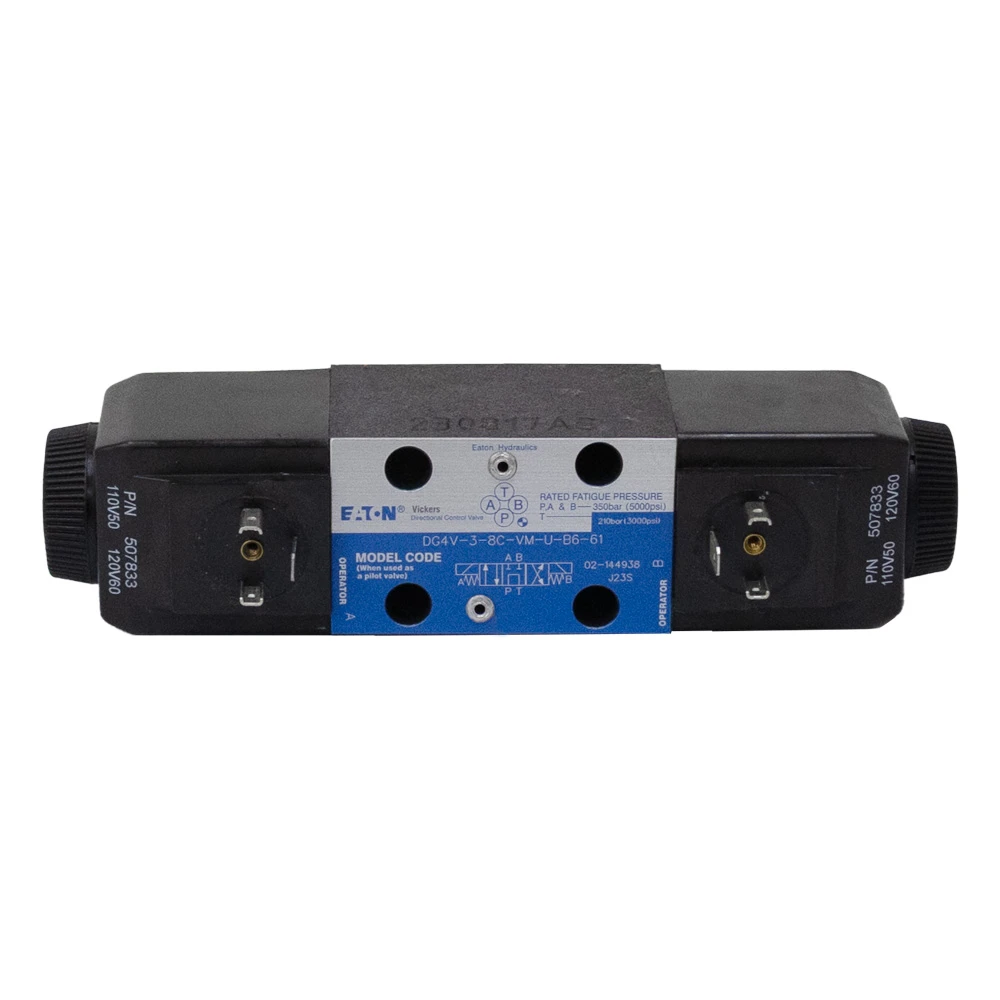

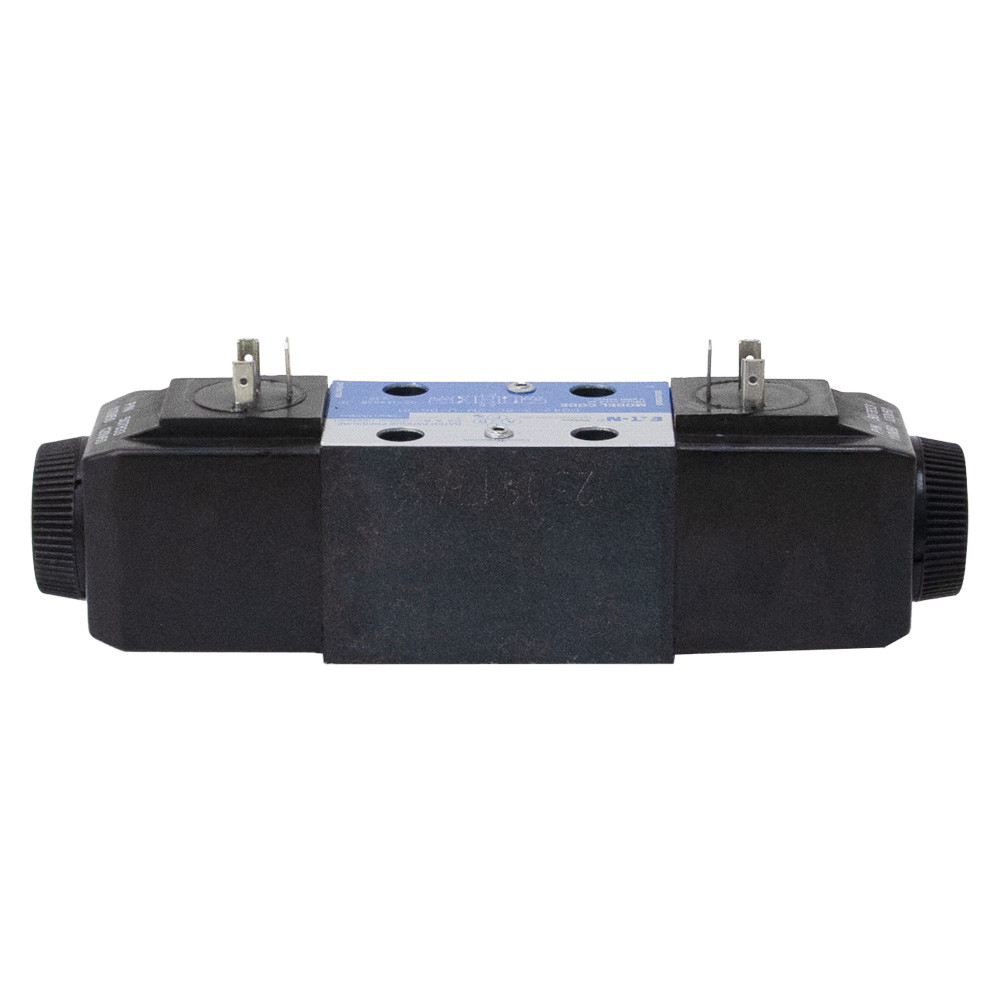

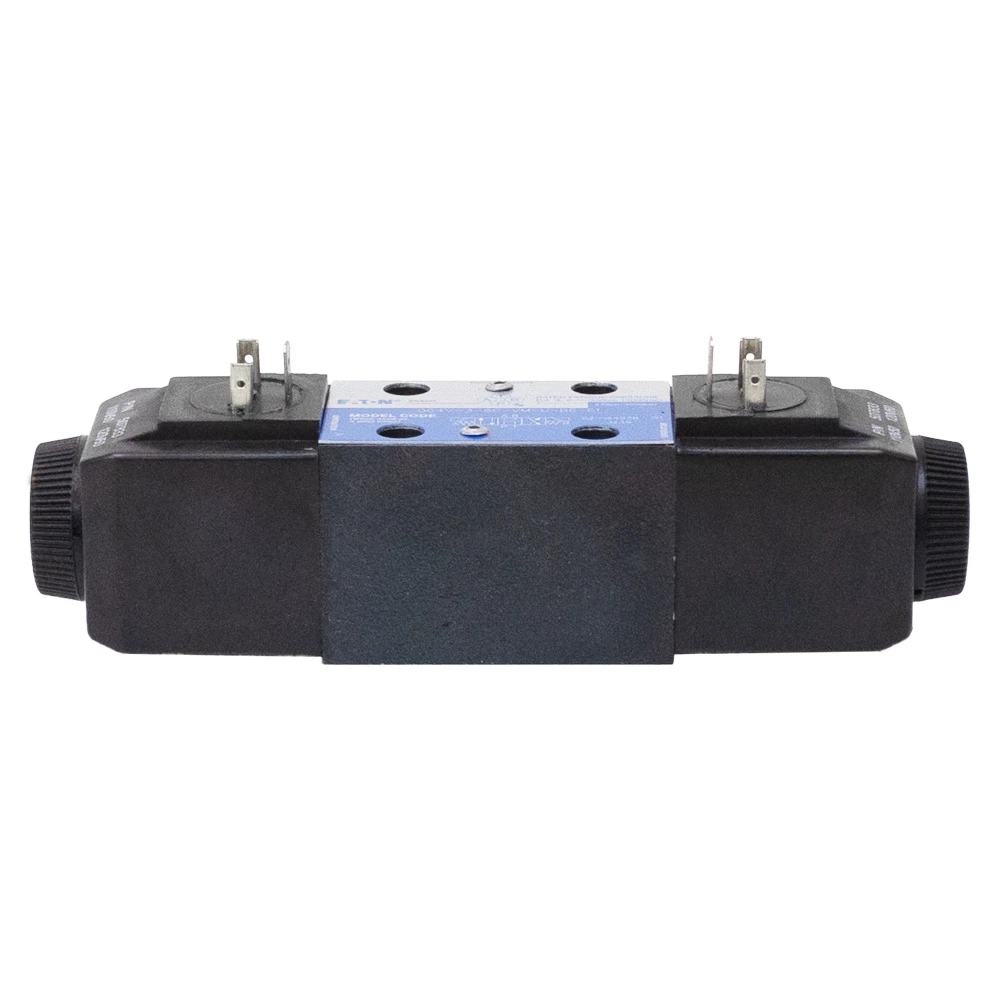

120 VOLT AC HYDRAULIC SOLENOID VALVE
Brand new, Eaton-Vickers DG4V-3 series, double-solenoid control valve. Spring centering spool. Manual override on solenoids. Valve ships with four cap-screws (#10-24) for mounting. Subplate mounting requires D03 subplate (Sold Separately) for port connections. Use with two DIN 43650 or Hirschmann connectors Surplus Center Item Number 500318 (Sold Separately) for wiring.
SPECIFICATIONS
- Brand Eaton-Vickers
- Model Number DG4V-3-8C-M-U-B6-61
- Tandem center spool (Open Center w/ Work ports blocked in neutral)
- ISO 4401-3 (#10-24)
- Voltage
110 Volts AC @ 50 Hz
120 Volts AC @ 60 Hz - Amperage 0.35 Amps
- Flow Rate 10.5 GPM max
- Pressure 3,000 PSI max
- Subplate Mounting Type D03
- Size 7.87" x 2.1" x 1.88"
- Shpg. 5 lbs.
| Hirschmann Connector | |
|---|---|
| DIN 43650 Hirschmann Connector TSII PG 9 | 500318 |
| Compatible Manifolds | |
|---|---|
| 1 Station D03 Series or Parallel Circuit Manifold Subplate for Open and Closed Center Valve w/ SAE 8 Side Ports Source Fluid Power SFP27131 | 906313 |
| 1 Station D03 Series or Parallel Circuit Manifold Subplate for Open and Closed Center Valve w/ SAE 6 Dual Ports Source Fluid Power SFP10103 | 906314 |
| 1 Station D03 Series or Parallel Circuit Manifold Subplate for Open and Closed Center Valve w/ SAE 6 Side Ports Source Fluid Power SFP10101 | 900622 |
| 2 Station D03 Series Open Center Manifold Subplate Source Fluid Power SFP-10052 | 901062 |
| 3 Station D03 Series Open Center Manifold Subplate Source Fluid Power SFP-10053 | 901002 |
| 4 Station D03 Series Open Center Manifold Subplate Source Fluid Power SFP-10054 | 903091 |
| Replacement Screw for Mounting Solenoid Valve to Manifold | |
|---|---|
| 10-24 x 1.25" Grade 8 Socket Cap Screw | 903986 |
| California Residents |
|
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov |
Product Videos
Custom Field
Prop65 true
Legacy Part Number 9-7235
Instructions i9-7235.pdf
Badges made-in-usa,regular-stock
Spool Type Cylinder
Type Directional Valves
Valve Connection Subplate
Valve Type Open Center
Voltage 115 Volt AC
PDF Page Catalog 299-34.pdf
Additional Information asDG4V-3.pdf
