Product Description
12C4 3/4" HYD SUCTION/RETURN LINE HOSEBrand new. Two-wire braided, NRP JONES suction and return line hose. Sold by the foot. Made in USA. Oil and weather resistant neoprene jacket, MSHA approved. Oil resistant nitrile tube. Length measured from end to end.
SPECIFICATIONS
- Hose Type SAE 100R4, Two-Wire Braided
- Overall Length Sold by the foot
- Inside Hose Diameter 3/4"
- Outside Jacket Diameter 1.24"
- Rated Suction 25 in. Hg
- Minimum Bend Radius 5"
- Temperature Range -40° to 200°F
- Working Pressure 300 PSI
- Burst Pressure 1200 PSI
- Shpg. 0.42 lb. / ft.
| California Residents |
|
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov |
Product Videos
Custom Field
Prop65 true
Legacy Part Number 9-1195
PDF Page Catalog298-88.pdf
Badges made-in-usa,regular-stock
Length Sold By the Foot
![3/4" SAE 100R4 Hydraulic Suction / Return Line Hose 12C4 NRP Jones [900229]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/500x659/products/436/106696/9-1195__20284.1762807882.jpg?c=1 "3/4\" SAE 100R4 Hydraulic Suction / Return Line Hose 12C4 NRP Jones [900229]")
![1-1/4" SAE 100R4 Hydraulic Suction / Return Line Hose 20C4 NRP Jones [900402]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/500x659/products/466/107053/9-1956__37875.1762807968.jpg?c=1 "1-1/4\" SAE 100R4 Hydraulic Suction / Return Line Hose 20C4 NRP Jones [900402]")
![1" SAE 100R4 Hydraulic Suction/Return Line Hose 16C4 NRP Jones [900246]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/500x659/products/337/106734/9-1279__73930.1762807893.jpg?c=1 "1\" SAE 100R4 Hydraulic Suction/Return Line Hose 16C4 NRP Jones [900246]")
![1-1/2" SAE 100R4 Hydraulic Suction / Return Line Hose 24C4 NRP Jones [900403]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/500x659/products/482/107054/9-1957__19688.1762807968.jpg?c=1 "1-1/2\" SAE 100R4 Hydraulic Suction / Return Line Hose 24C4 NRP Jones [900403]")

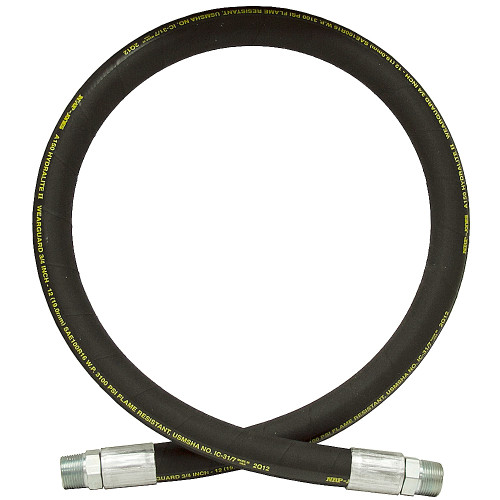

![3/4"x12" 3/4 NPTM x 3/4 NPTM SAE 100R16 Hydraulic Hose Assembly 3000 PSI NRP Jones [900165]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/500x659/products/349/106592/9-078-12__40108.1762807855.jpg?c=1 "3/4\"x12\" 3/4 NPTM x 3/4 NPTM SAE 100R16 Hydraulic Hose Assembly 3000 PSI NRP Jones [900165]")
