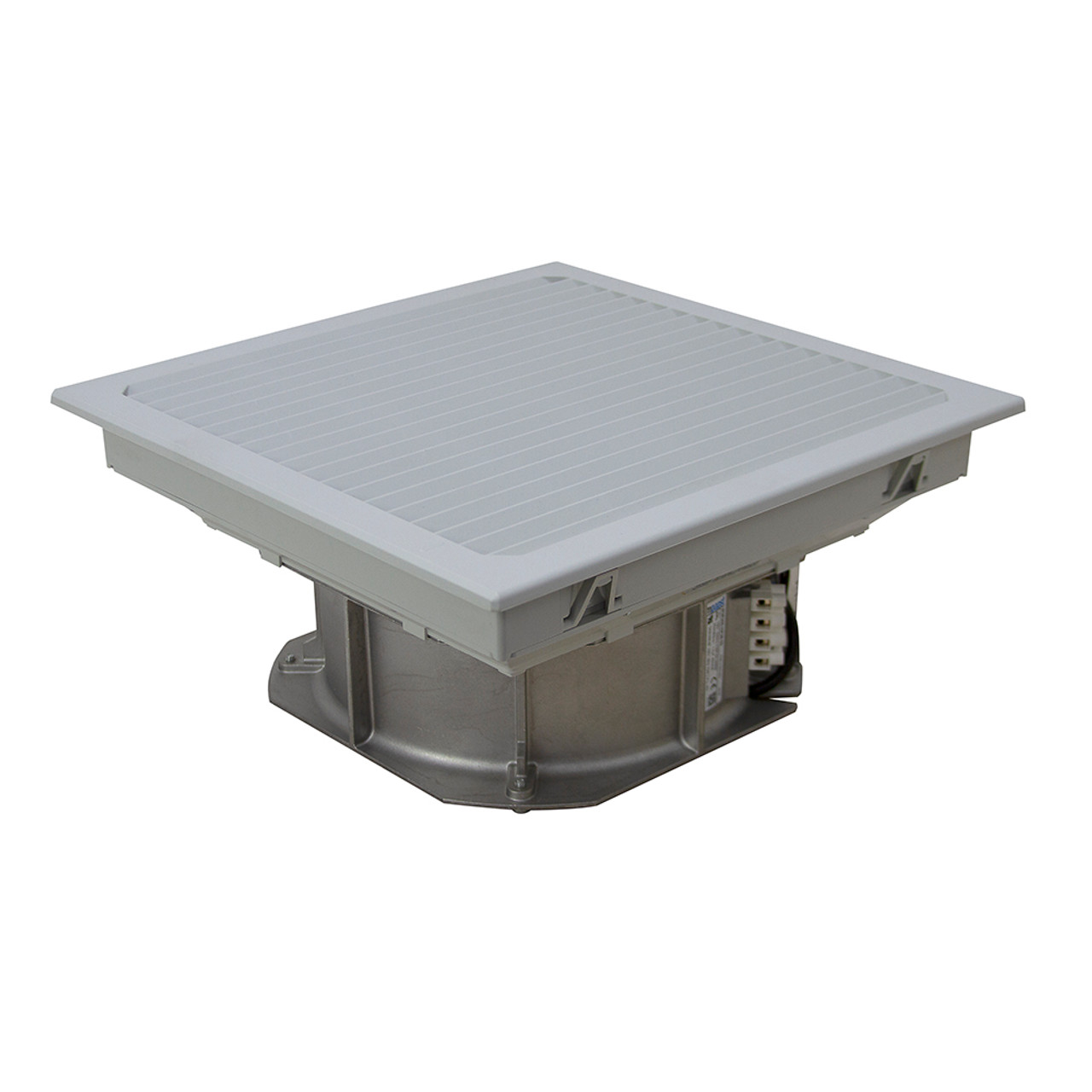

13" 346 CFM 230 Volt AC Fan SF1326514 [501247]

Product Description

13" GRILL 346 CFM 230 VAC FILTER FAN
New, Pentair fresh air enclosure filter fan model SF1326514. High airflow and low noise for cooling electrical equipment or general air circulation. Grey plastic grill. Air is pulled through the plastic grill and filter. Metal housing and fan blades. Click-fit design installs into enclosure wall. Snap over grill with foam filter. 60db rating. Terminal block electrical connection.

SPECIFICATIONS

• Pull Type Fan
• Model Number SF1326514
• Flow 346 CFM max.
• Voltage 230 AC
• Amperage 0.35 Amps
• Power 80 Watts
• Speed 2800 RPM
• Operating Temperature Range Min. 14° F to Max. 131° F
• IP Rating 55
• Mount 8 holes on 5-15/16" to 11-7/8" x 5-15/16" to 11-7/8" centers
• Cutout Dimensions 11.5" x 11.5"
• Blade Dia. 7-1/8"
• Number of Blades 7
• Size 12-3/4" x 12-3/4" x 5-13/16"
• Shpg. 12 lbs.
