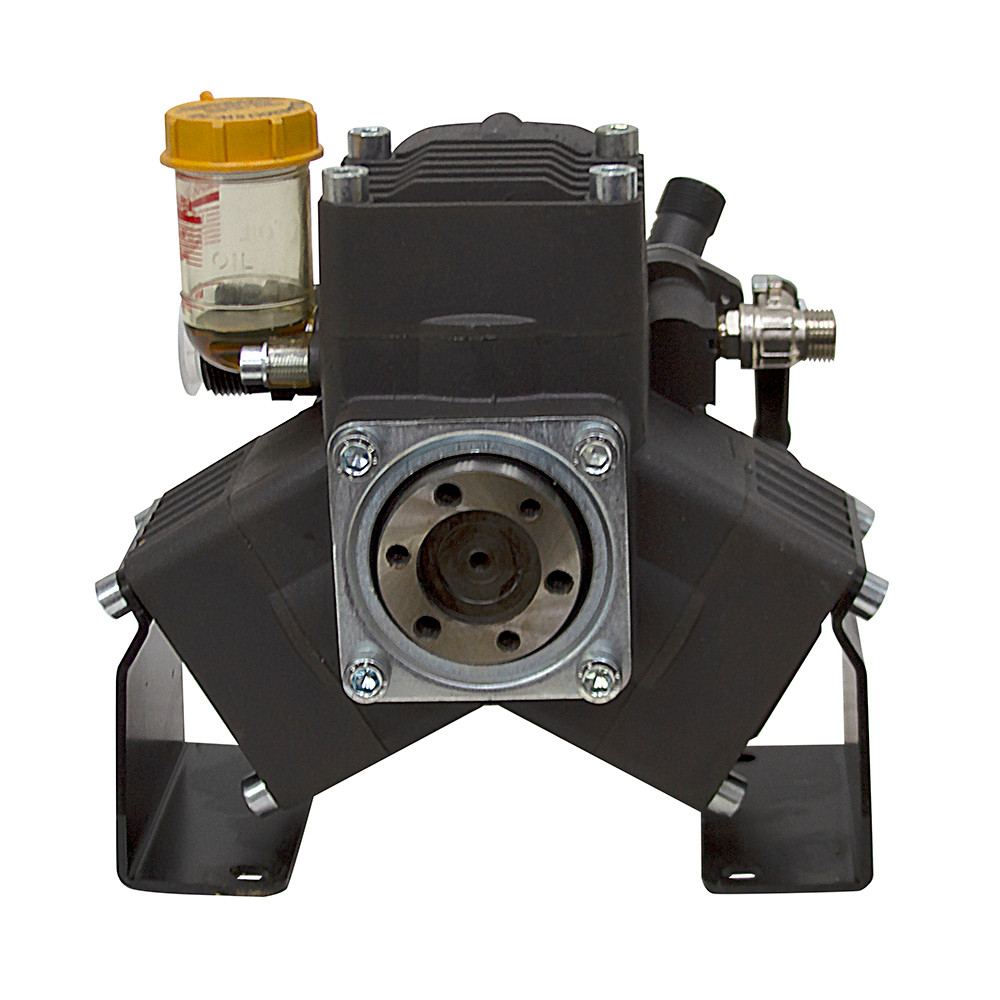

13.5 GPM 580 PSI Medium Pressure Diaphragm Pump Pentair Hypro by Bertolini 9915-DP503 [200766]

Product Description

Medium PRESSURE 3 DIAPHRAGM PUMP
New, PENTAIR HYPRO 9915-D503 medium pressure 3 diaphragm pump. Diaphragm pump design offers compatibility with many chemicals, smooth mechanical operation, longer operational pump life and consistent performance. The 9915 series diaphragm pumps have additional diaphragms to produce smoother flow with little to no pressure loss, producing more consistent and efficient spray coverage. Hardened black oxide aluminum heads, manifold, and case. Duramax diaphragm, crown shaped pistons, and double piston rings. 316 Stainless steel spherical profiled valve poppet.  Manufactured by Bertolini in Italy.

SPECIFICATIONS

• Model Number 9915-D503
• Number of Diaphragms 3
• Max. Flow 13.5 GPM
• Max. Pressure 580 PSI
• Max. RPM 550
• Required HP 5.4
• Max. Fluid Temperature 140°F/60°C
• Inlet Port 1-3/8"(40mm) Hose Barb
• Outlet Port 3/4" NPT
• Rotation  Reversible
• Input Shaft Requires one of the following Shaft Kits;
    9915-Kit1202 Item #2-1511
    9915-Kit1203 Item #2-1512
• Mount Four, 0.43" slotted holes on 3.9" x 6.6" centers
• Size 9.7" x 12" x 10.5"
• Shpg 38 lbs.
