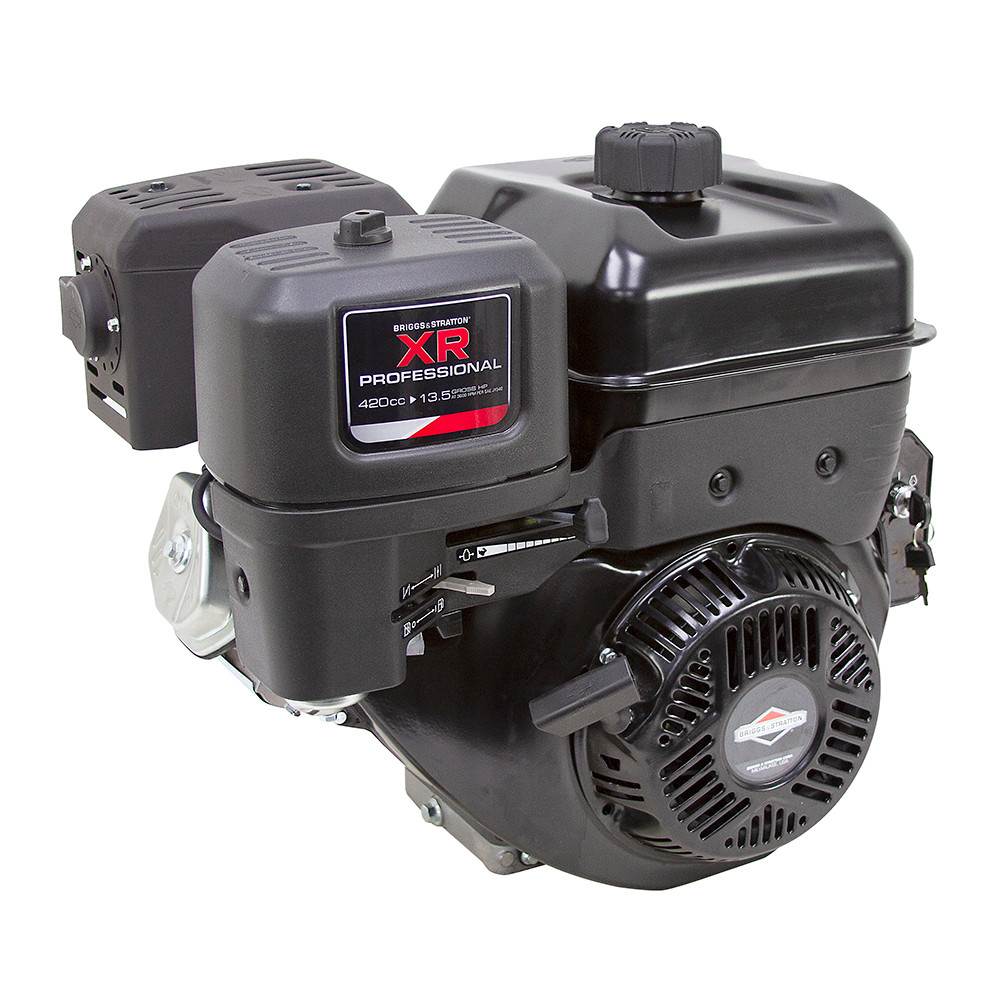

13.5 HP (Gross) Briggs & Stratton 25T2370085F1 Electric and Recoil Start Horizontal Shaft Engine [300334]

Product Description

13.5 HP HORIZONTAL SHAFT BRIGGS & STRATTON ELECTRIC/RECOIL START ENGINE
New, BRIGGS & STRATTON XR Professional series horizontal shaft engine. Engine feature overhead valves, Dura-Bore cast iron sleeve liner, ball bearing supported crankshaft, Lo-tone muffler, mechanical governor, electronic ignition, fuel valve and easy to use controls.
Not for sale in California!

SPECIFICATIONS

• Brand BRIGGS & STRATTON
• Model 25T2370085F1
• Engine Family XR Professional
• Power 13.5 HP (Gross)
• Torque 21.0 ft-lbs (Gross)
• Bore/Stroke 90mm/66mm
• Disp. 420 cc
• Speed 3600 RPM
• Start 12 Volt Electric Start and Recoil
• Charging System 10 Amps
• Fuel Tank 1.709 Gallon
• Shaft Horizontal
• Shaft 1" dia. x 3-31/64" keyed, tapped 7/16"-20 UNF
• Base Mount Four hole on 3-3/8" to 4-1/16" x 7-11/16" centers
• Accessory Mount
    Inner 4 bolt on 5" B.C.
    Outer 4 bolt on 6.5" B.C.
• Size 12-1/4" X 20-3/8" X 18-1/4"
• Shpg. 131 lbs.
