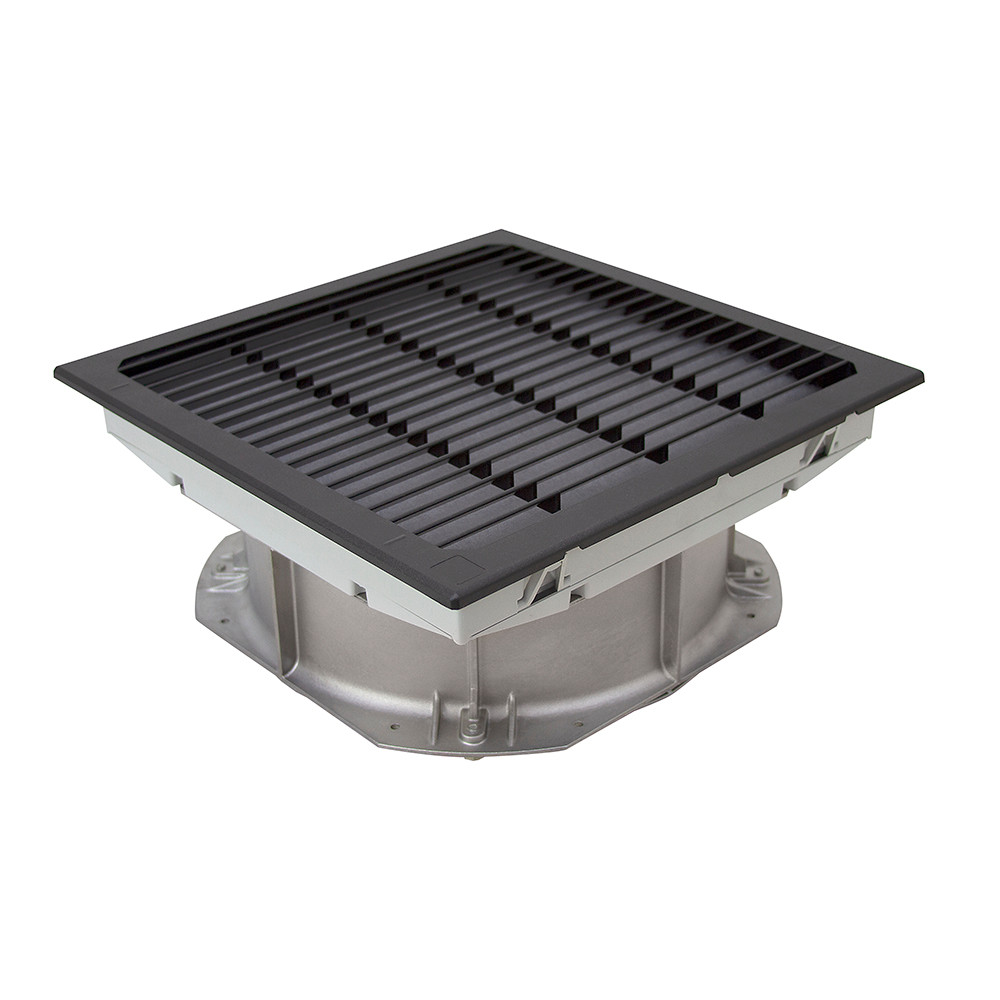

13" 571 CFM 460 Volt AC Fan SF1346433R [501244]

Product Description

13" GRILL 571 CFM 460 VAC FILTER FAN
New, Pentair fresh air enclosure filter fan model SF1346433R. High airflow and low noise for cooling electrical equipment or general air circulation. Black plastic grill. Air is pushed through the plastic grill and filter. Plastic housing with metal blades. Click-fit design installs into enclosure wall. Snap over grill with foam filter. 70db rating. Terminal block electrical connection.

SPECIFICATIONS

• Push Type Fan
• Model Number SF1346433R
• Flow 571 CFM max.
• Voltage 460 AC
• Amperage 0.27 Amps
• Power 16 Watts
• Speed 3050 RPM
• Operating Temperature Range Min. 14° F to Max. 131° F
• IP Rating 54
• Mount 8 holes on 5-15/16" to 11-7/8" x 5-15/16" to 11-7/8" centers
• Cutout Dimensions 11.5" x 11.5"
• Blade Dia. 9-7/8"
• Number of Blades 7
• Size 12-3/4" x 12-3/4" x 6-3/4"
• Shpg. 13 lbs.
