Product Description

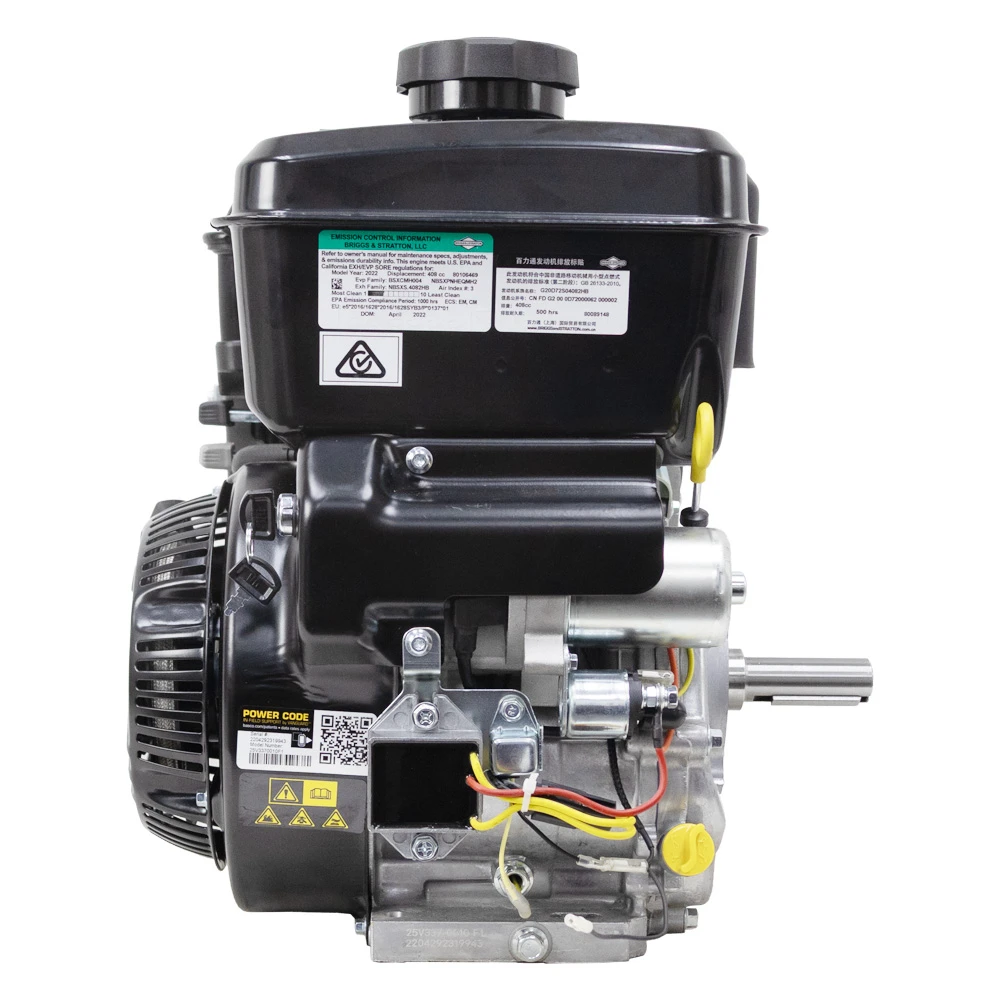

14.0 HP HORIZONTAL SHAFT ELECTRIC/RECOIL START ENGINE
New, Vanguard Briggs & Stratton 400 series horizontal shaft electric/recoil start gas engine. Features integrated cyclonic air filtration increasing air filter replacement intervals and transport guard that controls throttle, ignition and fuel to prevent mixing of fuel and oil during transport.
SPECIFICATIONS
- Brand Vanguard Briggs & Stratton
- Model 25V3370010F1
- Engine Family 400
- Power 14 HP
- Torque 110 lb-ft @ 3600 RPM
- Bore/Stroke 3.46"/2.64"
- Disp. 408cc
- Speed 3600 RPM max.
- Start 12 Volt Electric Start and Recoil
- Charging System 20 amp regulated
- Fuel Tank 5.74 gallon
- Shaft Orientation Horizontal
- Shaft Size 1" dia. x 3.488" keyed w/ 1/4" key, tapped 7/16"-20 TPI
- Base Mount Four 0.437" holes on 4.125" x 7.7" centers
- Accessory Mount Four bolt w/ 5/16"-24 TPI threads on 5" B.C.
- Size 18.1" x 17.9" x 14.3"
- Shpg. 81 lbs.
| California Residents |
|
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov |
Product Videos
Custom Field
Prop65 true
Badges surplus-item,last-one
Dimensional Diagram dr300404Base.pdf
Start 12 Volt Electric with Recoil Backup
HP 14 HP
